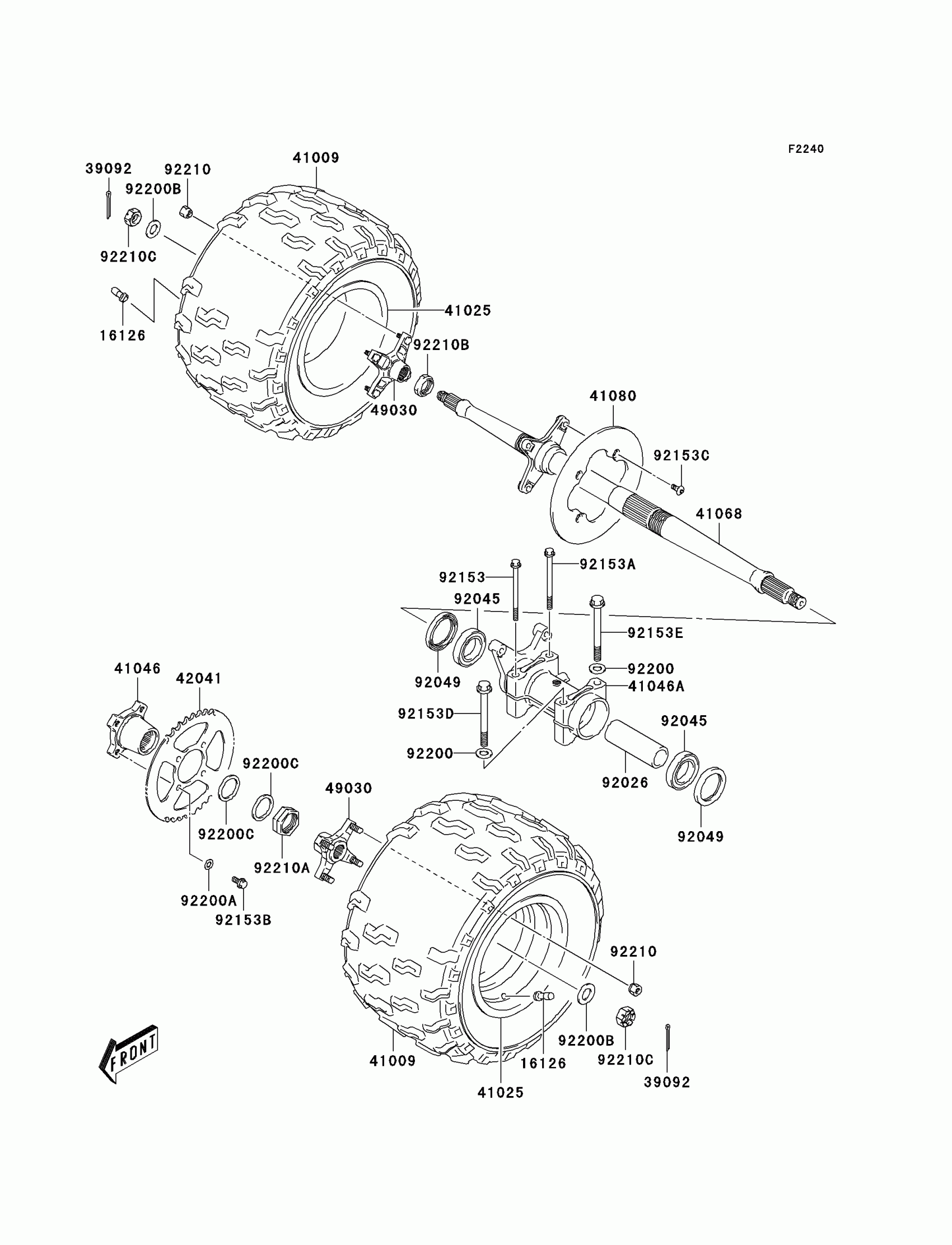

Kawasaki KFX400 Rear Hub(A1) Diagram

#

Description
Price

16126

VALVE,WHEEL RIM,TR412

16126-S002

$10.05

39092

PIN-HAIR,REAR HUB

39092-S010

Unavailable

41009

TIRE,RR

41009-S013

Unavailable

41025

RIM,REAR WHEEL,9X8.0AT

41025-S009

$422.83

41046

HOUSING-BEARING

41046-S004

$135.15

41046A

HOUSING-BEARING

41046-S005

$183.95

41068

AXLE,RR

41068-S011

$605.49

41080

DISC,REAR BRAKE

41080-S006

$185.41

42041

SPROCKET-HUB

42041-S006

$64.69

49030

HUB,RR,F.GRAY

49030-S004-563

$184.47

92026

SPACER,REAR AXLE

92026-S106

$51.27

92045

BEARING-BALL,REAR AXLE

92045-S049

$47.00

92049

SEAL-OIL,AXLE

92049-S052

$18.06

92153

BOLT,REAR AXLE

92153-S268

$7.98

92153A

BOLT,REAR AXLE

92153-S274

$6.27

92153B

BOLT,REAR SPROCKET

92153-S277

$3.83

92153C

BOLT

92153-S283

$3.52

92153D

BOLT,REAR AXLE

92153-S368

Unavailable

92153E

BOLT,REAR AXLE

92153-S369

$11.58

92200

WASHER,AXLE

92200-S138

$2.76

92200A

WASHER,REAR SPROCKET

92200-S139

$4.05

92200B

WASHER,REAR HUB

92200-S141

$3.78

92200C

WASHER,REAR AXLE

92200-S143

$5.63

92210

NUT,WHEEL

92210-S100

$1.80

92210A

NUT,REAR AXLE

92210-S109

$46.49

92210B

NUT,REAR AXLE

92210-S110

$21.15

92210C

NUT,REAR HUB

92210-S113

$4.69
