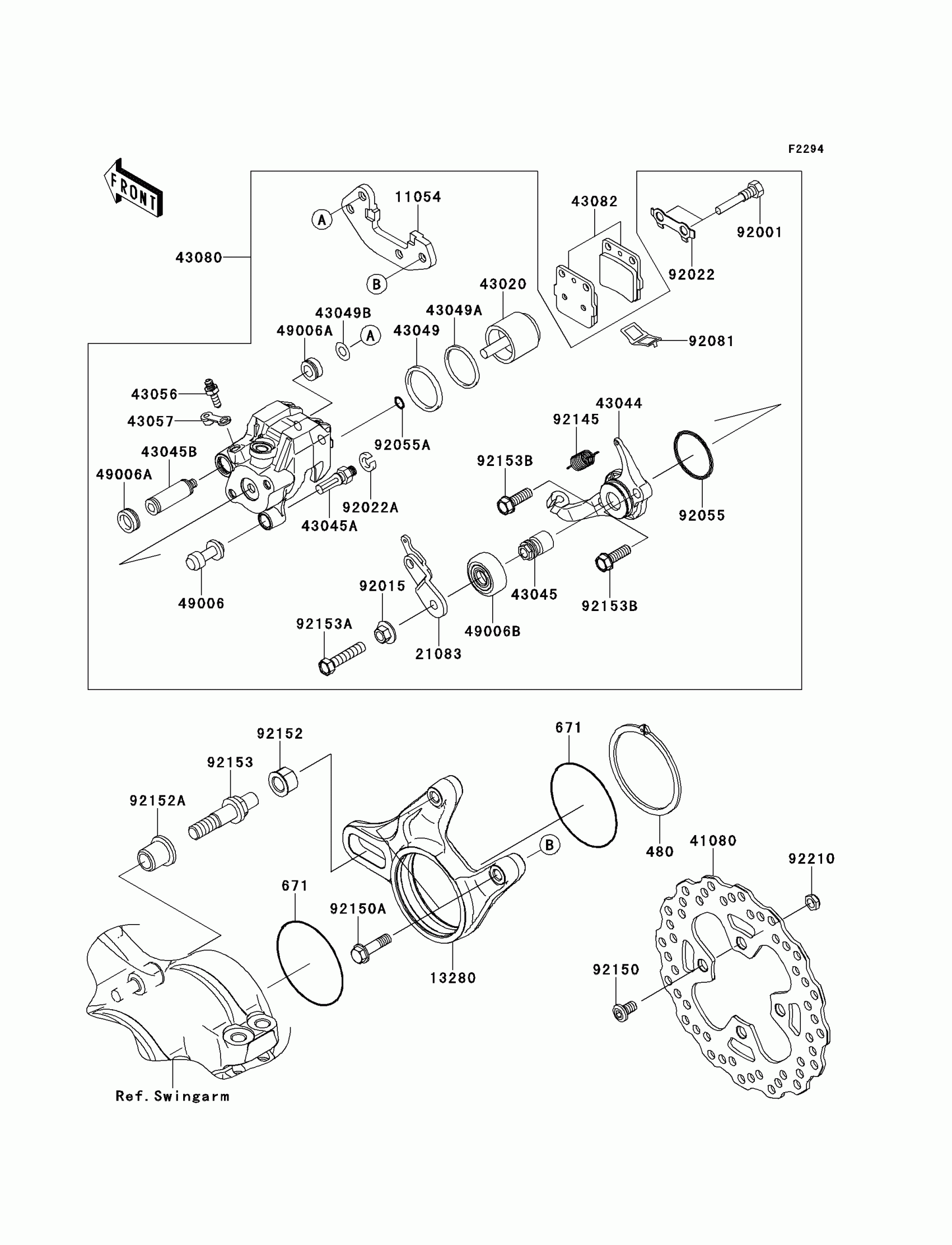

Find the part on the Rear Brake diagram for your 2010 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki KFX®450R Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,75MM

480J7500

1
Out of stock

671

O RING

671B2575

1
Out of stock

11054

1

$89.49

In stock

13280

HOLDER,REAR CALIPER

13280-0177

1

$48.46

In stock

21083

ARM

21083-0038

1
Out of stock

41080

DISC,RR

41080-0097

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1102

1
Out of stock

43044

HOLDER-COMP-CALIPER,RR

43044-0023

1
Out of stock

43045

SHAFT-CALIPER

43045-0001

1
Out of stock

43045A

SHAFT-CALIPER

43045-1010

1
Out of stock

43045B

SHAFT-CALIPER

43045-1051

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1023

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1024

1
Out of stock

43049B

PACKING

43049-1025

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR

43080-0058

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1066

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1089

1
Out of stock

49006B

BOOT,CALIPER

49006-1193

1
Out of stock

92001

BOLT,PAD HOLDER

92001-1723

1
Out of stock

92015

NUT

92015-1600

1
Out of stock

92022

WASHER,LOCK

92022-1372

1
Out of stock

92022A

WASHER,WAVE

92022-1373

1
Out of stock

92055

RING-O

92055-0135

1
Out of stock

92055A

RING-O

92055-1351

1
Out of stock

92081

SPRING,PAD

92081-1502

1
Out of stock

92145

SPRING

92145-0514

1
Out of stock

92150

BOLT,DISC PLATE,8X15

92150-1811

1
Out of stock

92150A

BOLT

92150-1919

1
Out of stock

92152

COLLAR

92152-0406

1
Out of stock

92152A

COLLAR

92152-0407

1
Out of stock

92153

BOLT,12MM

92153-1491

1
Out of stock

92153A

BOLT

92153-1848

1
Out of stock

92153B

BOLT

92153-1849

1
Out of stock

92210

NUT,LOCK,8MM

92210-1243

1
Out of stock
