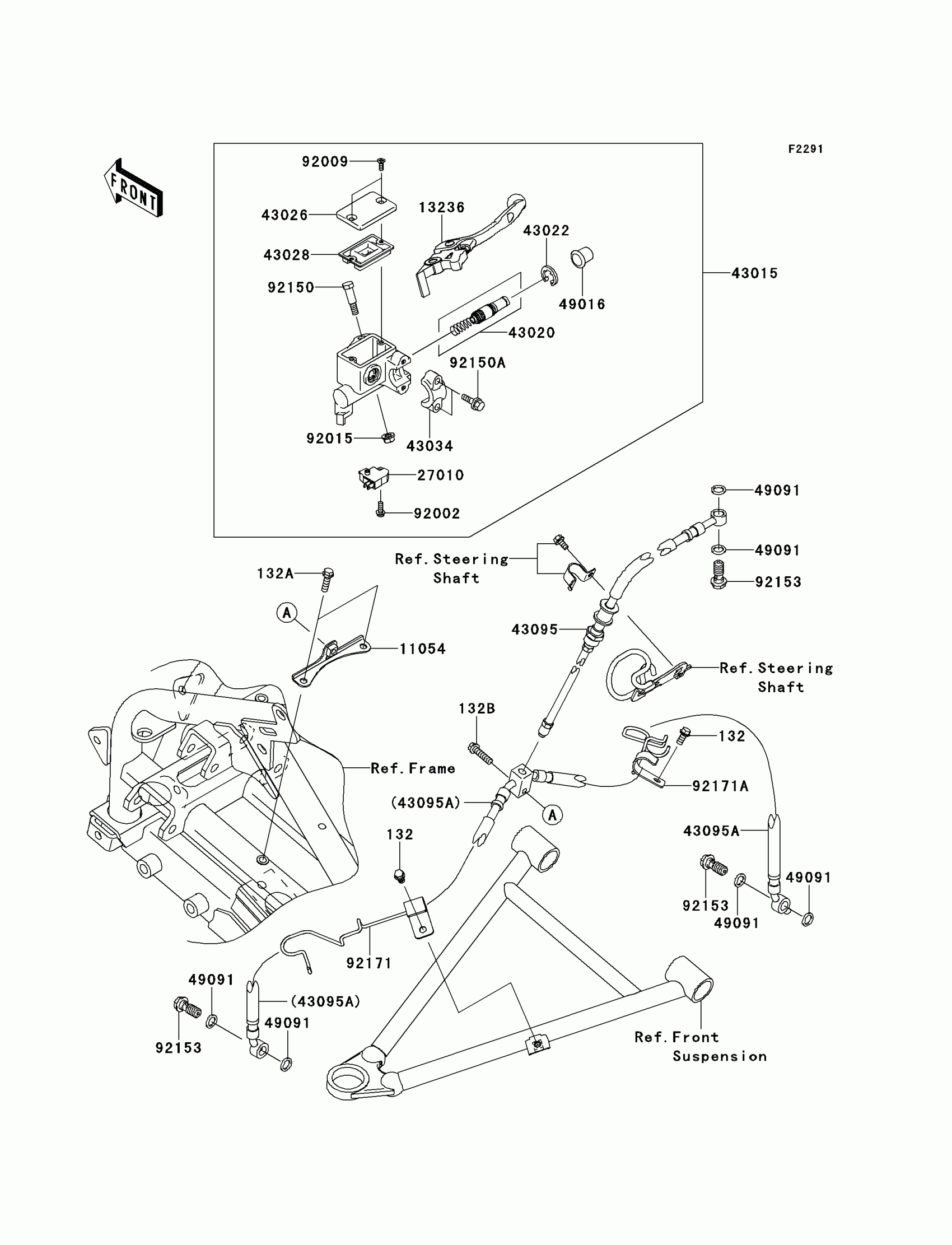

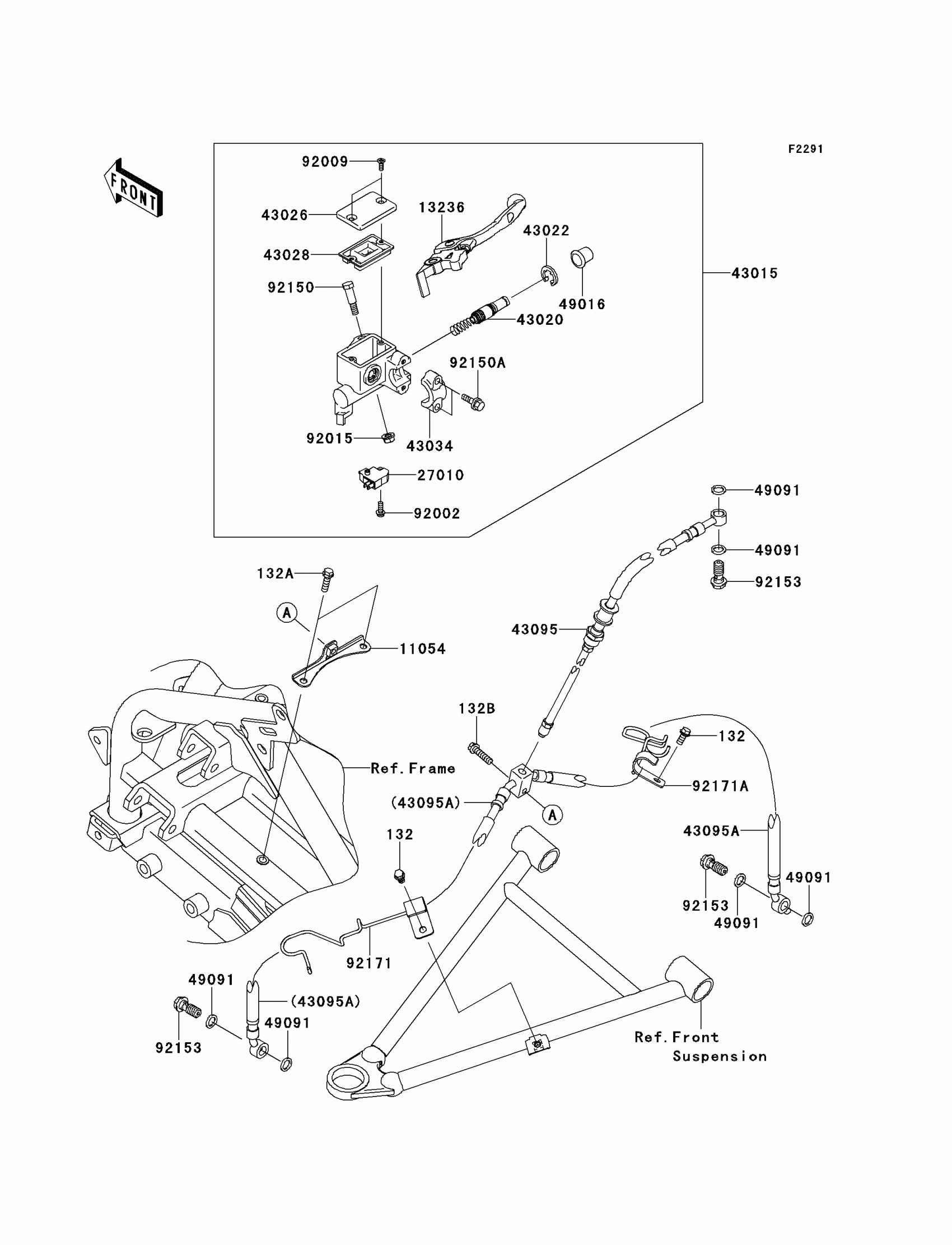

Find the part on the Front Master Cylinder diagram for your 2010 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki KFX®450R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.73

In stock

132A

1

$3.18

In stock

132B

1

$2.29

In stock

11054

BRACKET

11054-0291

1

$8.25

In stock

13236

LEVER-COMP,FRONT BRAKE

13236-0118

1
Out of stock

27010

SWITCH,BRAKE

27010-0025

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0070

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1098

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0010

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE

43034-1110

1
Out of stock

43095

HOSE-BRAKE

43095-0344

1
Out of stock

43095A

HOSE-BRAKE

43095-0375

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92009

SCREW

92009-1795

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92150

BOLT,LEVER SET

92150-1451

1
Out of stock

92150A

BOLT

92150-1452

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92171

CLAMP,LH

92171-0890

1
Out of stock

92171A

CLAMP,RH

92171-0891

1
Out of stock
