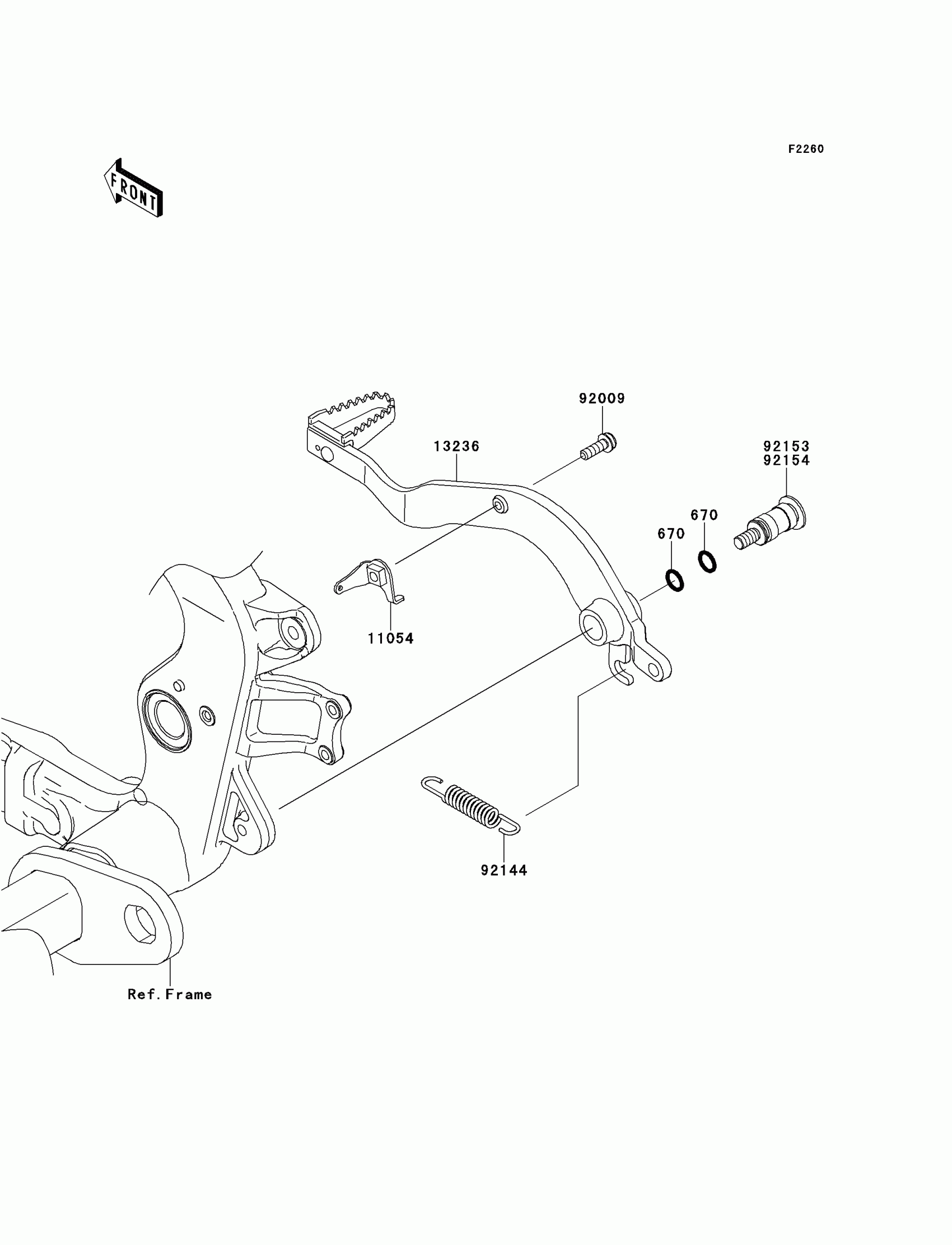

Find the part on the Brake Pedal diagram for your 2010 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki KFX®450R Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,12MM

670B2012

1
Out of stock

11054

1

$7.95

In stock

13236

LEVER-COMP,BRAKE PEDAL

13236-0105

1
Out of stock

92009

SCREW,6X20

92009-3848

1
Out of stock

92144

SPRING

92144-1266

1
Out of stock

92154

BOLT

92154-0025

1
Out of stock
