2010 Kawasaki KFX®450R Chassis Electrical Equipment Diagram

← All diagrams

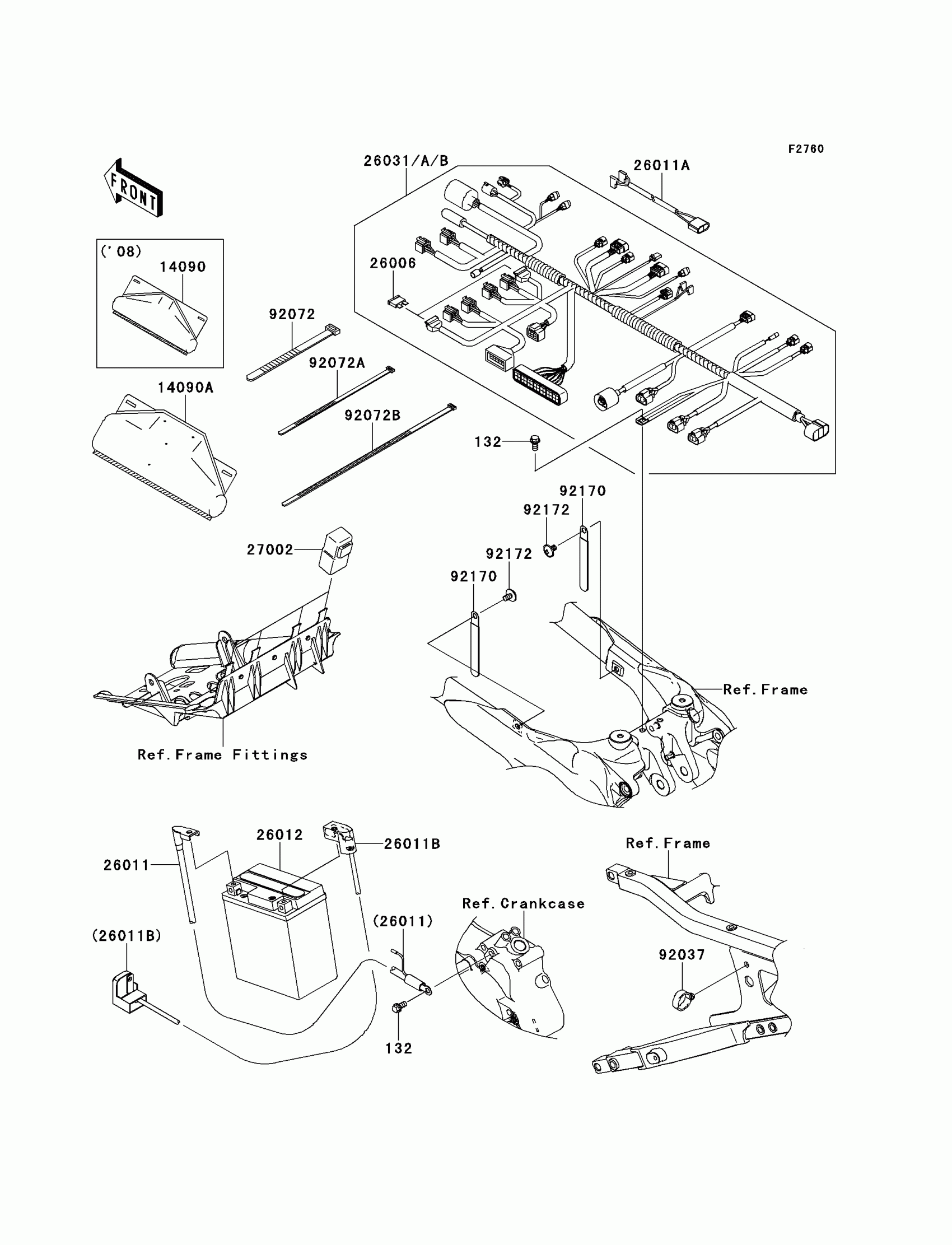

Find the part on the Chassis Electrical Equipment diagram for your 2010 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki KFX®450R Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.12

In stock

14090A

COVER,COUPLER

14090-1611

1

$8.31

In stock

26006

FUSE,MINI BLADE,10A,RED

26006-0009

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-0098

1
Out of stock

26011A

WIRE-LEAD,FRONT BRAKE

26011-0119

1
Out of stock

26011B

WIRE-LEAD,BATTERY(+)

26011-0149

1
Out of stock

26012

BATTERY,YTX7L-BS,12V 6AH

26012-0084

1
Out of stock

26031B

HARNESS,MAIN

26031-0816

1
Out of stock

27002

RELAY-ASSY

27002-1088

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92072A

BAND,L=188

92072-1239

1
Out of stock

92072B

BAND,L=368.3

92072-3872

1
Out of stock

92170

CLAMP

92170-1925

1

$1.98

In stock

92172

SCREW,6X10

92172-0005

1
Out of stock
