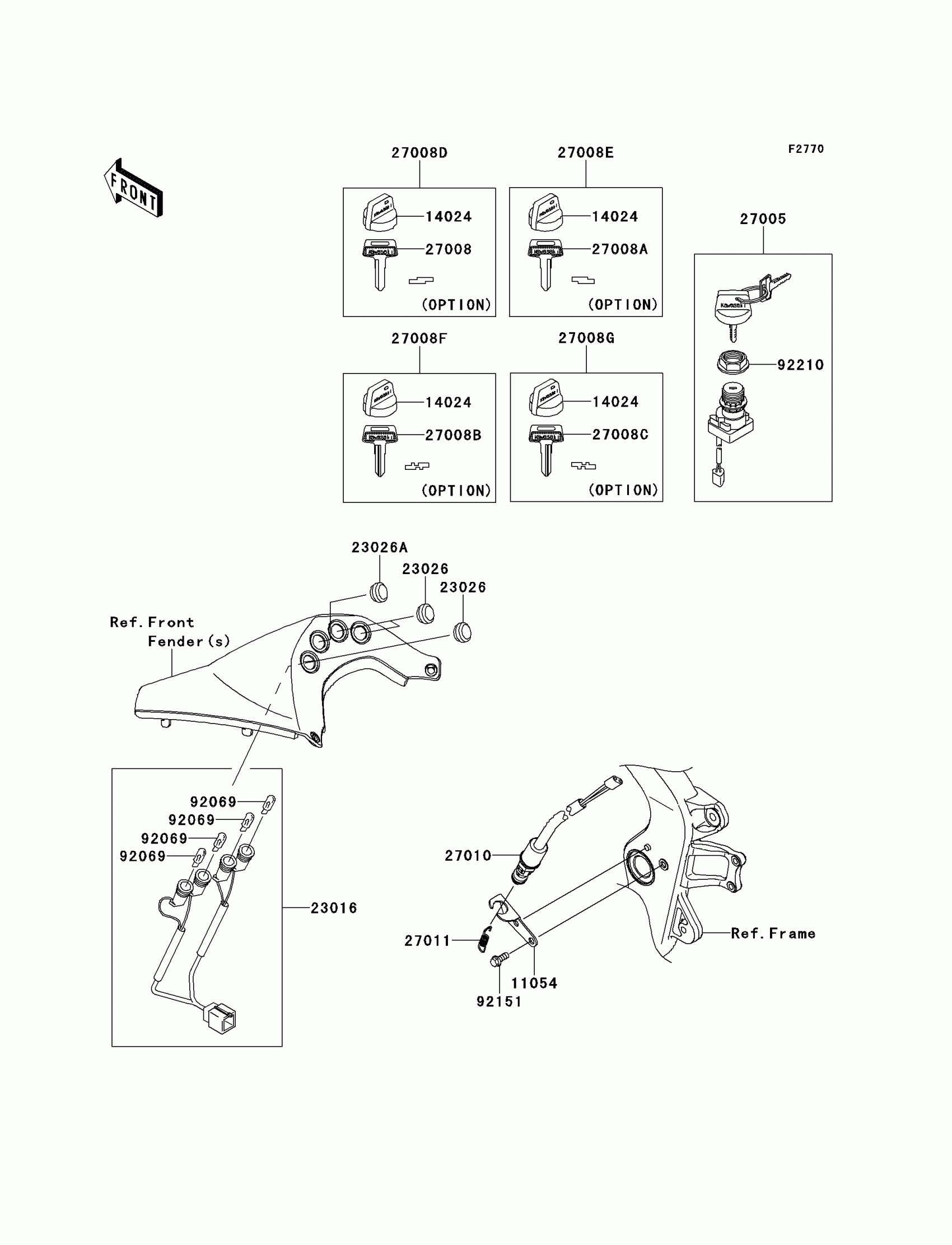

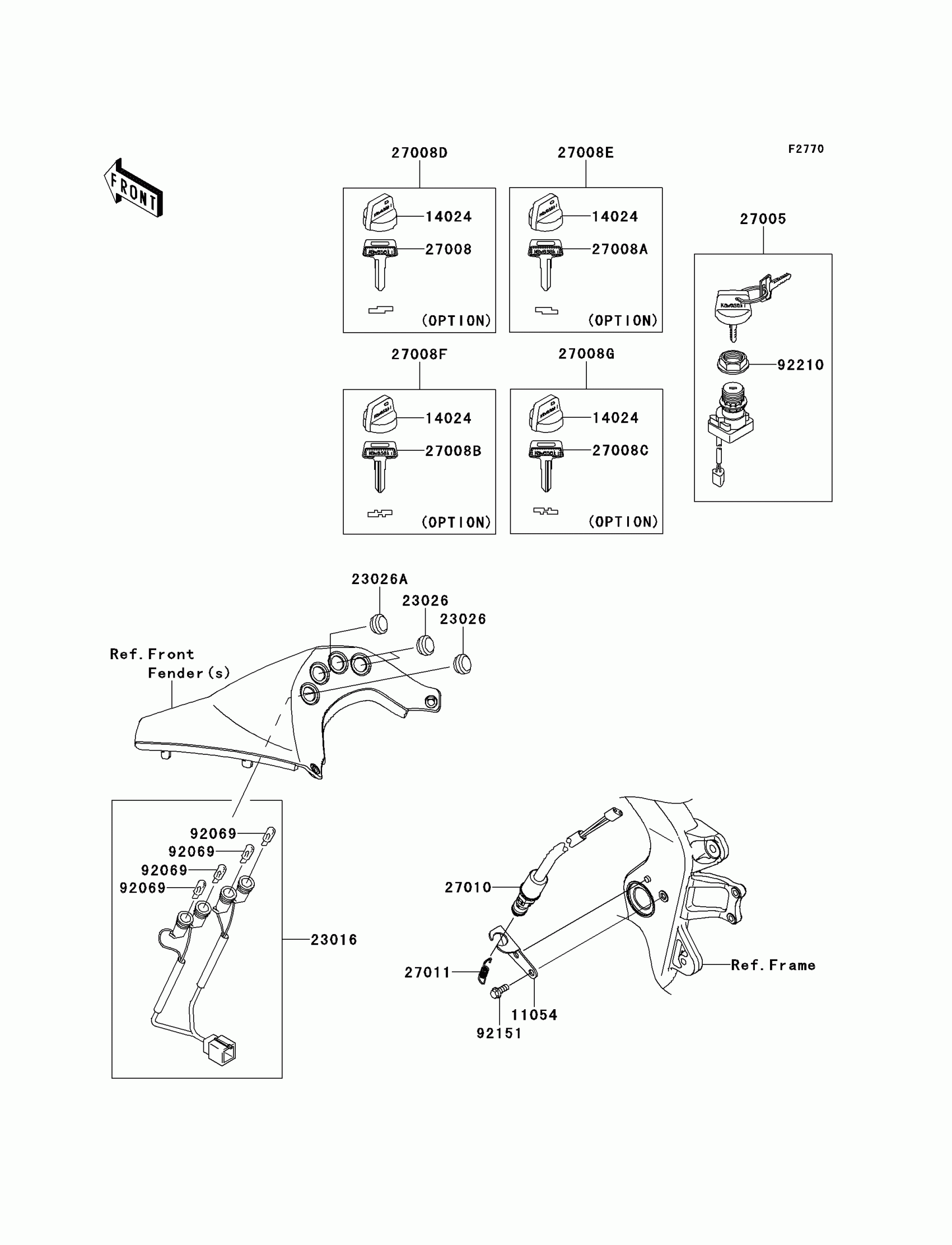

Kawasaki KFX®450R Ignition Switch Diagram

Description

Price

11054

BRACKET,BRAKE SWITCH

11054-0271

$18.24

14024

COVER,KEY

14024-1551

$4.72

23016

LAMP-ASSY

23016-1192

$72.71

23026

LENS,PILOT,RED

23026-1105

$9.12

23026A

LENS,PILOT,GREEN

23026-1107

$9.12

27005

SWITCH-ASSY-IGNITION

27005-1229

$109.54

27008

KEY-LOCK,BLANK

27008-1041

$13.56

27008A

KEY-LOCK,BLANK

27008-1042

$13.56

27008B

KEY-LOCK,BLANK

27008-1043

$13.56

27008C

KEY-LOCK,BLANK

27008-1044

$16.83

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

$17.51

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

$17.51

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

$14.12

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

$14.12

27010

SWITCH,BRAKE

27010-1494

$51.47

27011

SPRING,SWITCH

27011-014

$8.46

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92151

BOLT,6X14

92151-1647

$1.95

92210

NUT,IGNITION SWITCH

92210-1109

$4.67
