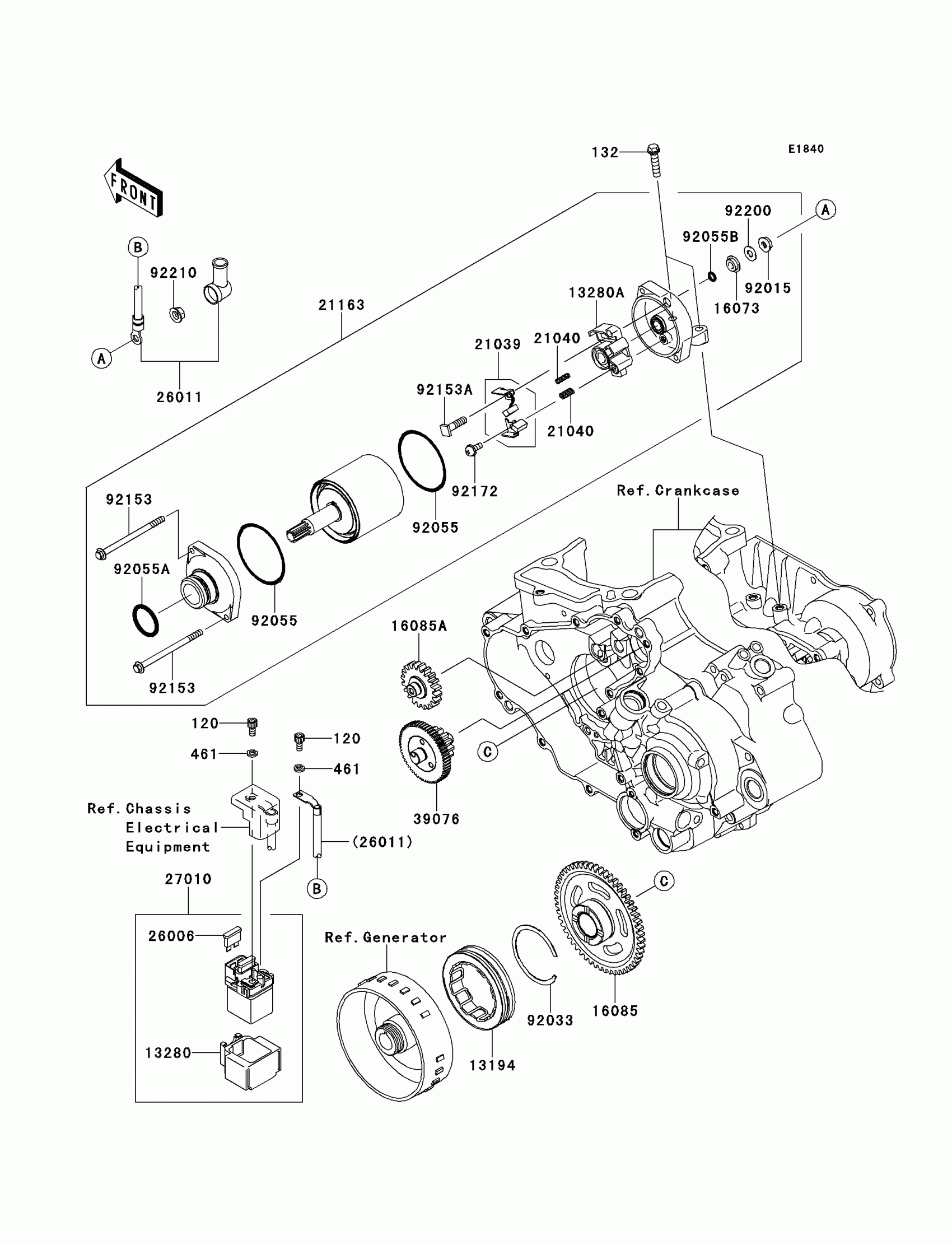

Kawasaki KFX®450R Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120CB0510

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132BD0625

$4.09

461

WASHER-SPRING,5MM

461DB0500

$1.29

13194

CLUTCH-ONEWAY

13194-0008

$87.66

13280

HOLDER,SWITCH

13280-0109

$12.83

13280A

HOLDER

13280-0261

$15.78

16073

INSULATOR

16073-0053

$11.42

16085

GEAR,53T

16085-0092

$124.73

16085A

GEAR,20T

16085-0093

$111.41

21039

BRUSH,CARBON SET

21039-0005

$69.54

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0033

$371.73

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD

26011-0103

$33.18

27010

SWITCH,MAGNETIC

27010-0030

Unavailable

39076

LIMITER,58T&13T

39076-0015

$62.66

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92033

RING-SNAP

92033-3731

$5.37

92055

RING-O

92055-0136

$5.91

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92153

BOLT,SET

92153-1851

$7.56

92153A

BOLT

92153-1866

$4.14

92172

SCREW

92172-0334

$4.14

92200

WASHER

92200-0386

$4.14

92210

NUT,6MM

92210-0188

$1.81
