2004 Kawasaki KFX 250 Mojave Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2004 Kawasaki KFX 250 Mojave, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

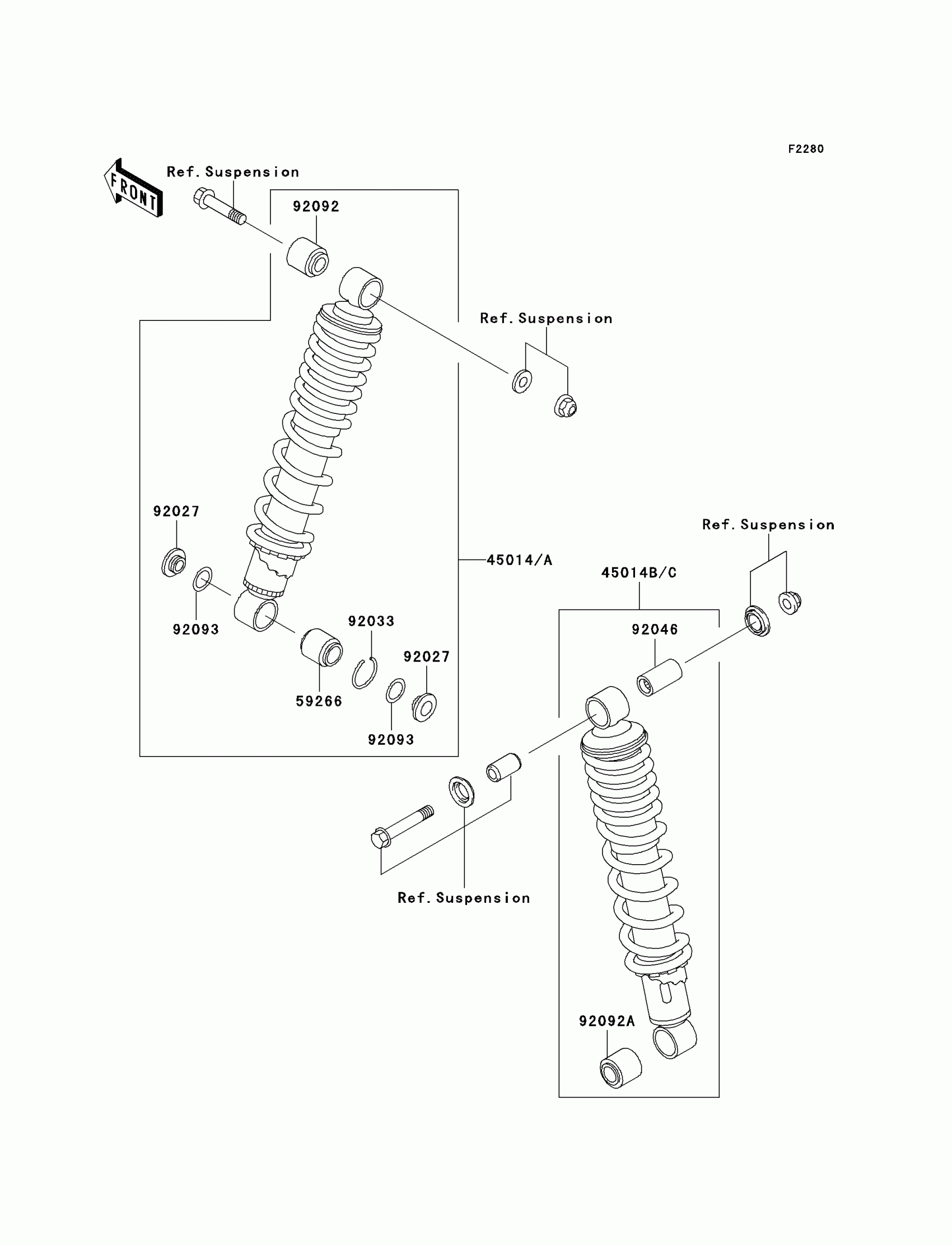

2004 Kawasaki KFX 250 Mojave Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER,FR,L.GREEN

45014-1391-CC

1

$746.63

In stock

45014B

SHOCKABSORBER,RR,L.GREEN

45014-1392-CC

1

$950.79

In stock

59266

JOINT-BALL

59266-1053

1

$119.17

In stock

92027

COLLAR

92027-1862

1

$19.49

In stock

92033

RING-SNAP

92033-1090

1

$4.76

In stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

92092

1

$30.51

In stock

92092A

1

$35.15

In stock

92093

SEAL

92093-1183

1

$15.59

In stock
