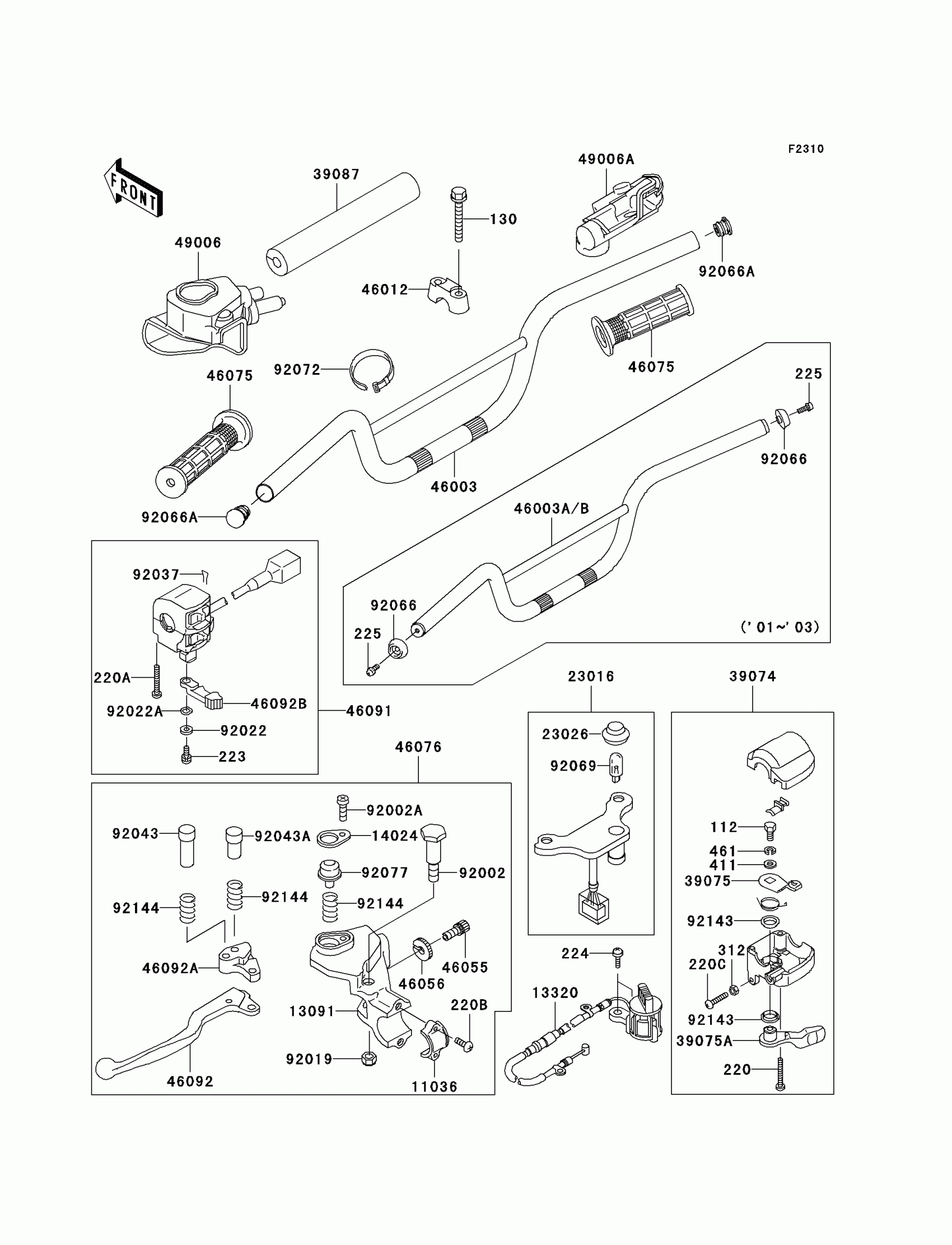

Kawasaki KFX 250 Mojave Handlebar Diagram

#

Description
Price

112

BOLT-UPSET

112D0614

$0.48

11036

BRACKET-A,LEVER HOLDER

11036-1297

Unavailable

13091

HOLDER,LEVER

13091-1456

$47.87

13320

LEVER-ASSY,REVERSE

13320-1006

Unavailable

14024

COVER,PARKING LEVER

14024-1351

$9.61

23016

LAMP-ASSY,REVERSE

23016-1105

$78.41

23026

LENS,PILOT,RED

23026-1105

$9.12

39074

LEVER-ASSY-THROTTLE

39074-1055

$80.61

39075

LEVER-THROTTLE,ARM

39075-1054

$11.03

39075A

LEVER-THROTTLE

39075-1059

Unavailable

39087

PAD-HANDLE

39087-1051

$17.20

46003

HANDLE,G.GRAY

46003-0009-HN

$49.80

46012

HOLDER-HANDLE

46012-1168

$15.44

46055

SCREW,CABLE ADJUST,8MM

46055-009

$14.38

46056

NUT,CABLE ADJUST

46056-006

$6.82

46075

GRIP

46075-1056

$20.92

46076

LEVER-ASSY-GRIP,LH

46076-1137

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

46091-1477

$208.50

46092

LEVER-GRIP,CLUTCH

46092-1137

$18.78

46092A

LEVER-GRIP,PARKING

46092-1138

$12.39

46092B

LEVER-GRIP,CHOKE

46092-1139

$8.90

49006

BOOT,LH

49006-1197

Unavailable

49006A

BOOT

49006-1338

$10.03

92002

BOLT,LEVER SET

92002-1833

Unavailable

92002A

BOLT,TAPPING

92002-1834

$3.49

92019

NUT,LOCK,6MM

92019-008

$3.12

92022

WASHER,5MM

92022-1837

$2.31

92022A

WASHER,WAVE,5MM

92022-1838

$2.31

92037

CLAMP,CLIP

92037-1836

$4.68

92043

PIN,5X15

92043-1341

$9.34

92043A

PIN,5X11

92043-1342

$8.92

92066A

PLUG

92066-1550

$8.66

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92072

BAND,L=149

92072-031

$3.81

92077

KNOB,PARKING LEVER

92077-1076

Unavailable

92143

COLLAR

92143-1138

$3.15

92144

SPRING

92144-1058

$7.41

130

BOLT-FLANGED,8X60

130P0860

Unavailable

220

SCREW-PAN-CROS,5X30

220C0530

Unavailable

220A

SCREW-PAN-CROS,5X35

220C0535

$1.49

220B

SCREW-PAN-CROSS,5X14

220F0514

$1.33

220C

SCREW-PAN-CROSS

220F0630

Unavailable

223

SCREW-PAN-WS-CROS,5X12

223C0512

$3.29

224

SCREW-PAN-WP-CROS,5X20

224B0520

Unavailable

312

NUT-HEX,6MM,BLACK

312C0600

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

461

WASHER-SPRING

461L0600

$0.66
