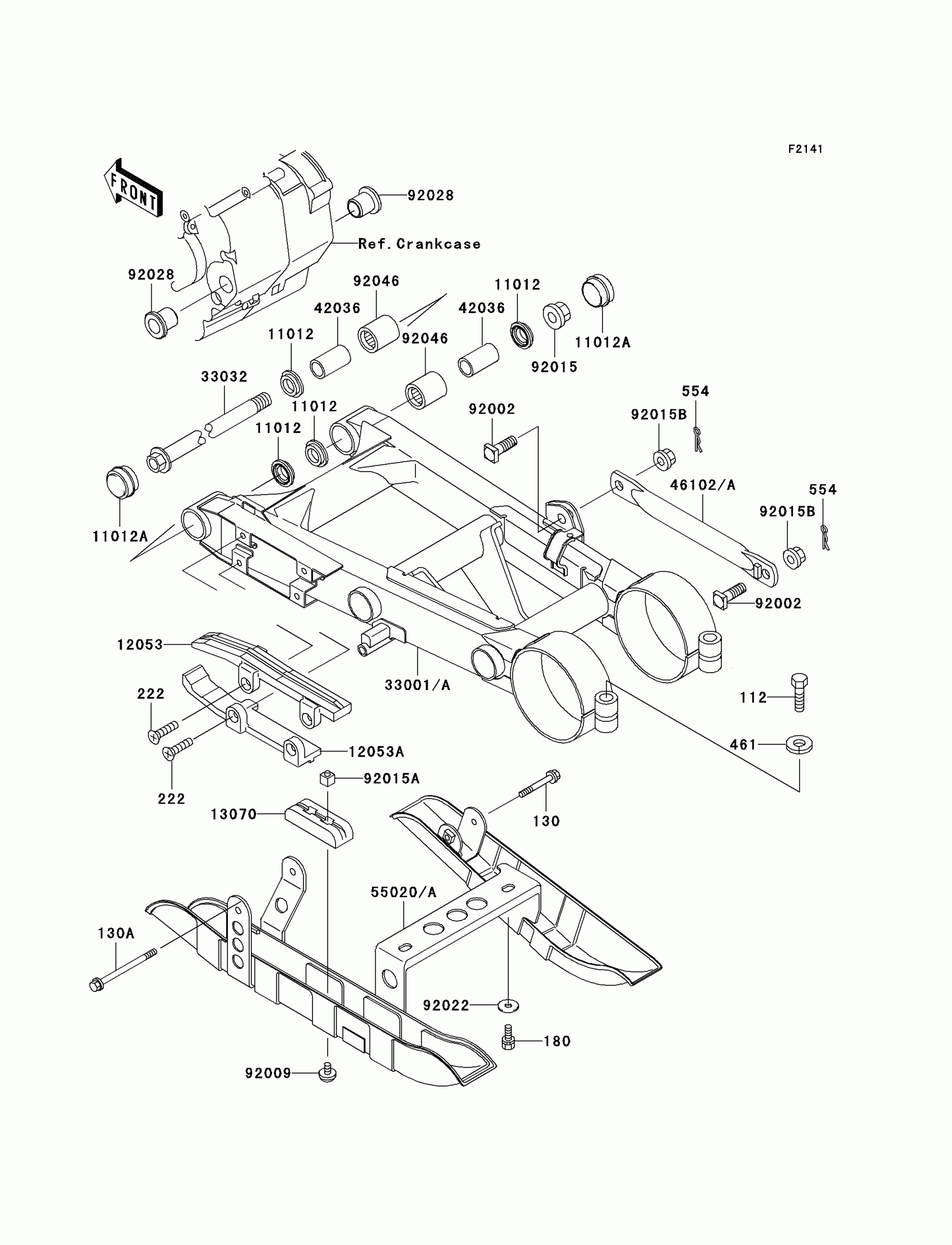

Kawasaki KFX 250 Mojave Swingarm Diagram

#

Description
Price

112

BOLT-UPSET

112P1035

Unavailable

130

BOLT-FLANGED,6X40

130G0640

Unavailable

130A

BOLT-FLANGED

130G0680

Unavailable

180

BOLT-UPSET-WS,6X14

180G0614

$1.00

222

SCREW-CSK-RD-CROS,6X12

222B0612

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable

554

PIN-SNAP,10MM

554A1000

$0.73

11012

CAP,SWING ARM

11012-1259

$17.61

11012A

CAP,SWING ARM

11012-1520

$9.10

12053

GUIDE-CHAIN,UPP

12053-1194

$70.85

12053A

GUIDE-CHAIN,LWR

12053-1195

$54.62

13070

GUIDE,CHAIN

13070-1156

Unavailable

33001A

ARM-COMP-SWING,G.GRAY

33001-1415-HN

Unavailable

33032

SHAFT-SWING ARM

33032-1139

$92.86

42036

SLEEVE,SWING ARM

42036-1064

$19.97

46102A

ROD,TORQUE,G.GRAY

46102-1342-HN

$13.19

55020A

GUARD,CHAIN&DISC,G.GRAY

55020-1636-HN

$31.70

92002

BOLT,10X28

92002-1733

$9.71

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92015

NUT,14MM

92015-1407

$7.54

92015A

NUT,6MM

92015-1452

$4.61

92015B

NUT,LOCK,10MM

92015-1597

$4.18

92022

WASHER,6.5X20X1.6

92022-1804

$1.08

92028

BUSHING,SWING ARM

92028-1261

$16.31

92046

BEARING-NEEDLE

92046-1128

$21.08
