2004 Kawasaki KFX 250 Mojave Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2004 Kawasaki KFX 250 Mojave, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

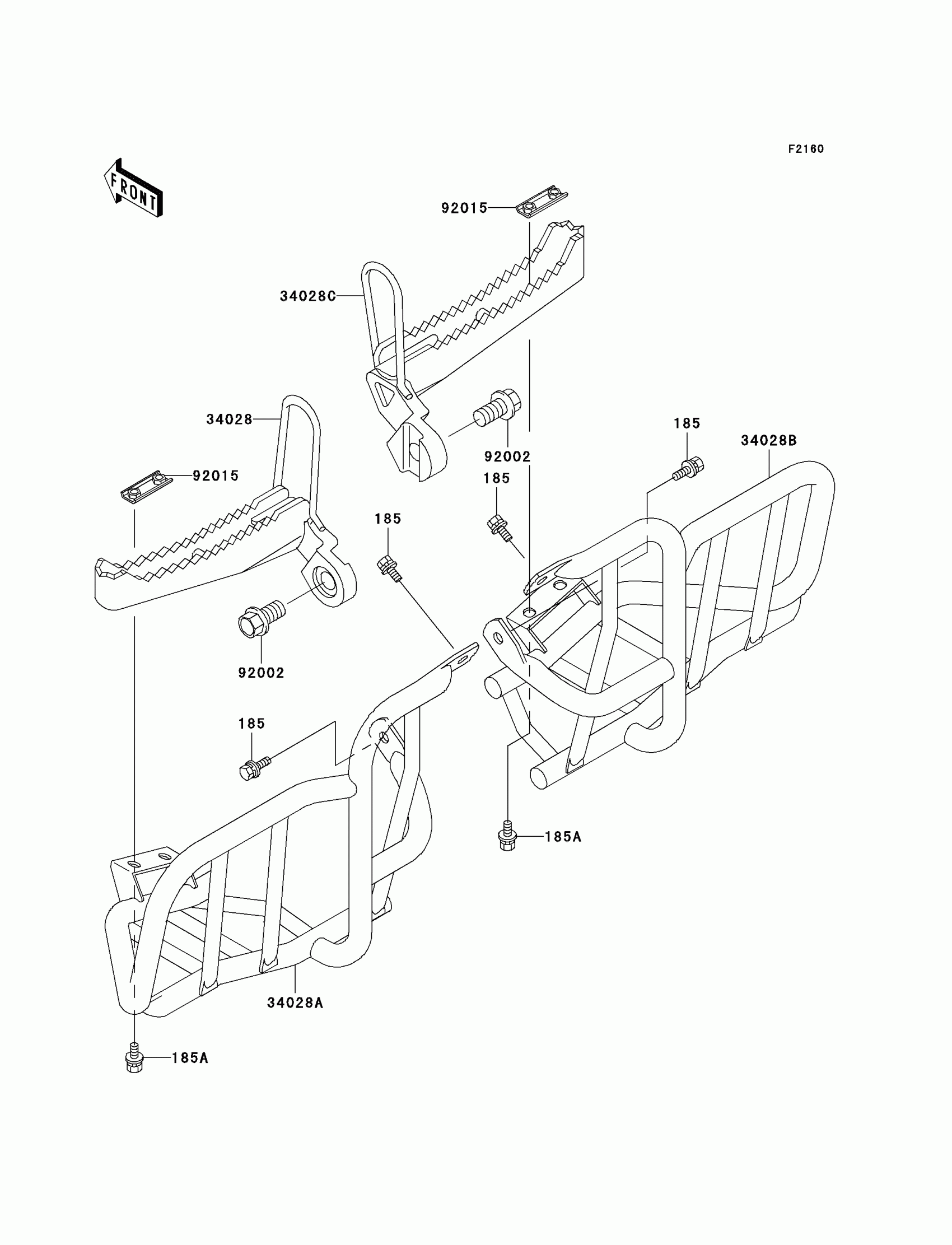

2004 Kawasaki KFX 250 Mojave Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

185

BOLT-UPSET-WSP-SMALL

185J0818

1
Out of stock

185A

BOLT-UPSET-WSP-SMALL,8X20

185J0820

1
Out of stock

34028

STEP,LH,P.C.GRAY

34028-1366-CQ

1

$36.76

In stock

34028A

1

$65.95

In stock

34028B

1

$65.95

In stock

34028C

STEP,RH,P.C.GRAY

34028-1509-CQ

1

$32.67

In stock

92002

BOLT,FLANGED,14X25

92002-1767

1
Out of stock

92015

NUT

92015-1732

1
Out of stock
