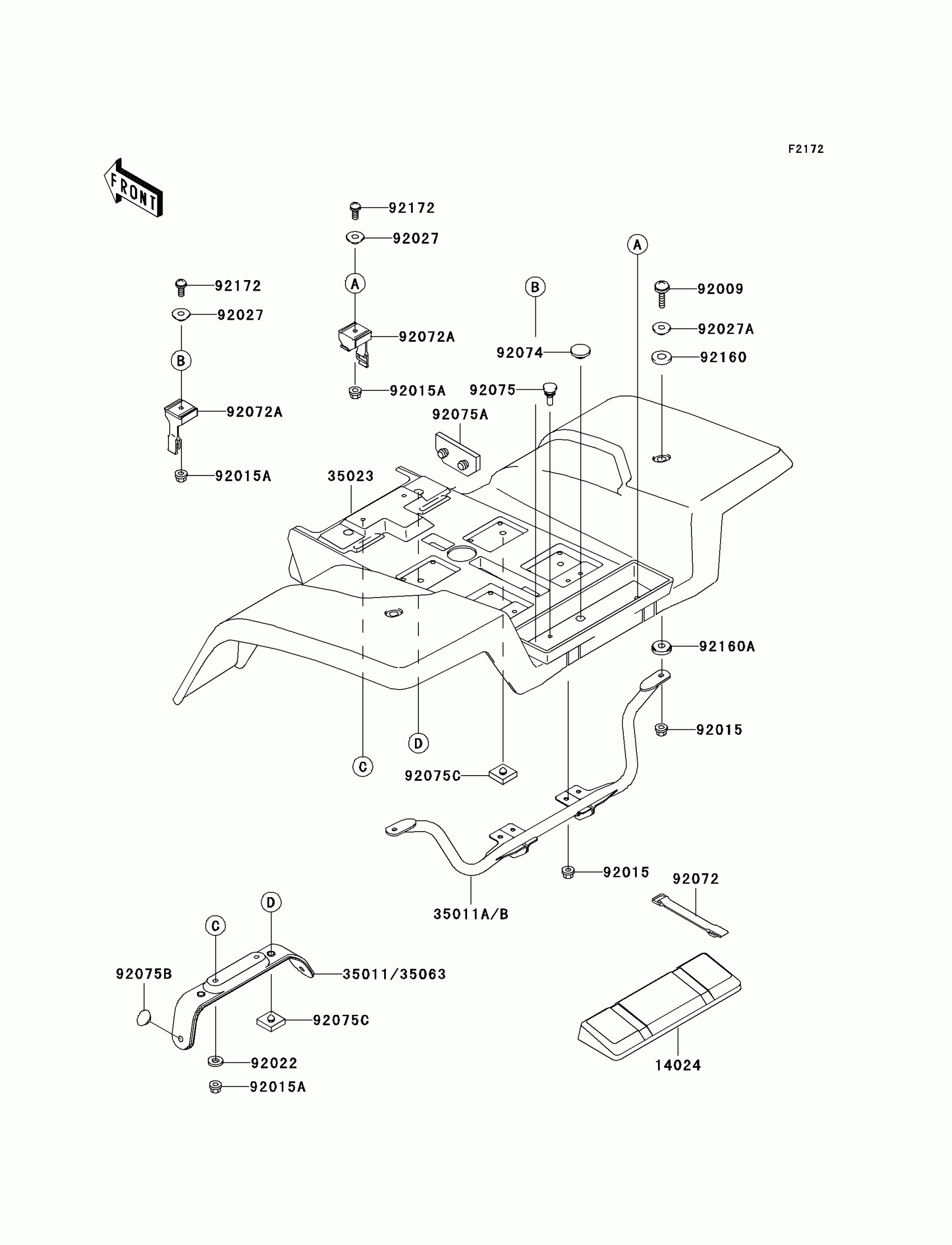

Kawasaki KFX 250 Mojave Rear Fender(s) Diagram

Description

Price

14024

COVER,REAR FENDER,L.GREEN

14024-1283-6W

$61.58

35011B

STAY,REAR FENDER,RR,G.GRAY

35011-1698-HN

$57.37

35023

FENDER-REAR,L.GREEN

35023-1167-6W

Unavailable

35063

STAY,REAR FENDER,FR

35063-1170

$52.20

92009

SCREW,6X25

92009-1465

$2.99

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92022

WASHER,6.5X20X1.6

92022-1804

$1.08

92027

COLLAR,L=5.1

92027-1260

$4.67

92027A

COLLAR

92027-1767

$4.18

92072

BAND,L=150

92072-1203

$10.80

92072A

BAND

92072-1215

Unavailable

92074

PLUG,11X3.2

92074-038

$7.14

92075

DAMPER,6X10X15

92075-1808

$1.06

92075A

DAMPER

92075-1860

Unavailable

92075B

DAMPER

92075-1861

$10.00

92075C

DAMPER

92075-1882

$6.18

92160

DAMPER

92160-1011

Unavailable

92160A

DAMPER

92160-1017

$5.07

92172

SCREW,6X14

92172-0004

$1.98
