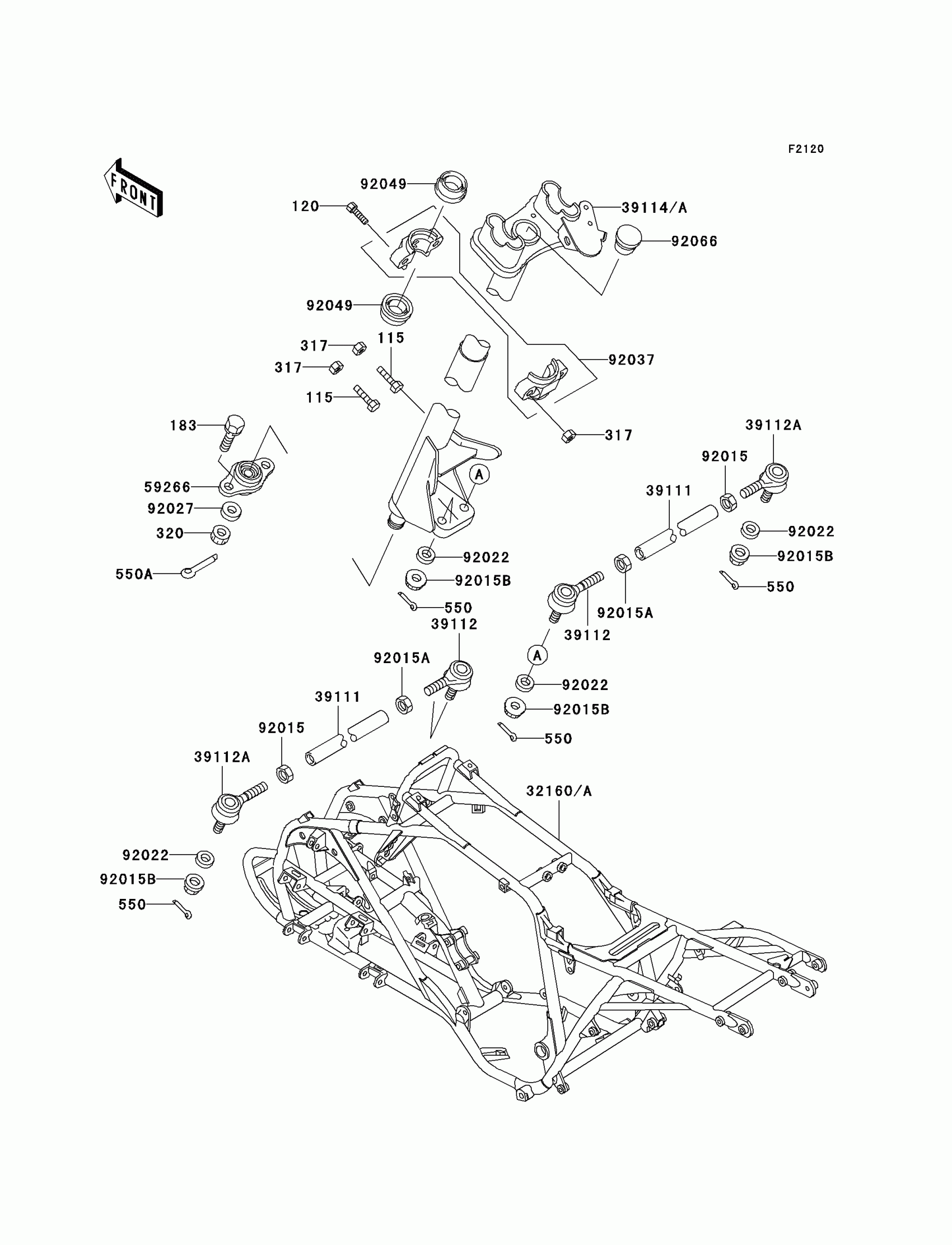

Kawasaki KFX 250 Mojave Frame Diagram

#

Description
Price

115

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

120

BOLT,8X50

120P0850

Unavailable

183

BOLT-UPSET-WS-SMALL

183G0822

Unavailable

317

NUT-HEX-SMALL,8MM

317G0800

Unavailable

320

NUT-CASTLE

320H1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.5X18

550D2518

$0.61

32160A

FRAME-COMP,G.GRAY

32160-1279-HN

Unavailable

39111

ROD-TIE

39111-1069

$37.17

39112

RODEND-TIE

39112-1063

$94.55

39112A

RODEND-TIE

39112-1064

$94.55

39114A

SHAFT-COMP-STRG,G.GRAY

39114-1080-HN

Unavailable

59266

JOINT-BALL

59266-1066

$144.36

92015

NUT,LOCK,10MM

92015-1460

$5.66

92015A

NUT,LOCK,10MM

92015-1494

$5.42

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92022

WASHER,10.5X20X1

92022-239

$2.99

92027

COLLAR,10X21.3X7

92027-1817

$14.34

92037

CLAMP,STEERING SHAFT

92037-1839

$70.85

92049

SEAL-OIL,SR7 25 34 7.8 NS

92049-1278

$5.58

92066

PLUG

92066-1220

$4.39
