1983 Kawasaki KE175 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1983 Kawasaki KE175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

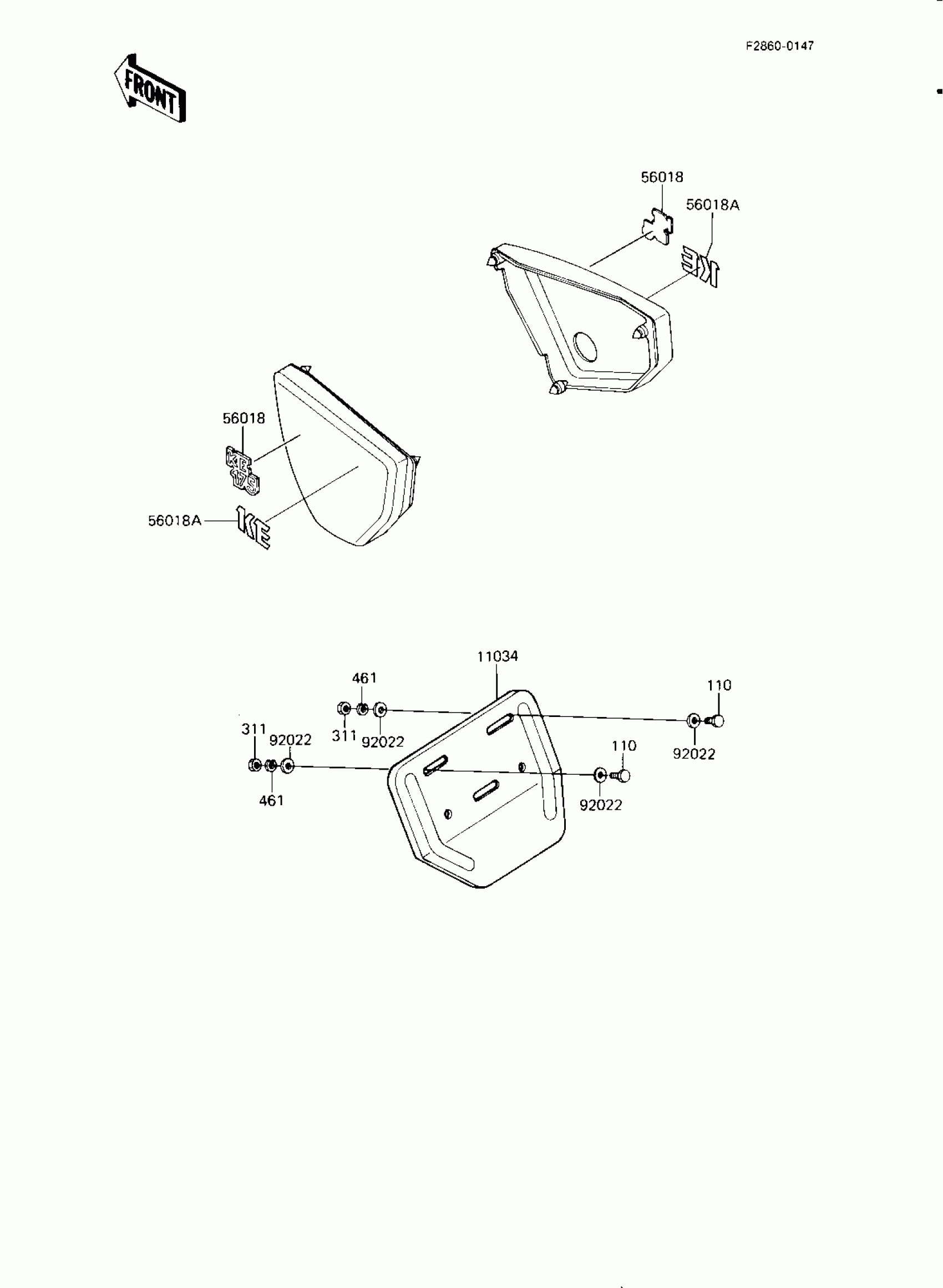

1983 Kawasaki KE175 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,LICENSE PLATE

11034-1117

1
Out of stock

56018A

1

$12.64

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

110

BOLT-UPSET,6X20

112G0620

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
