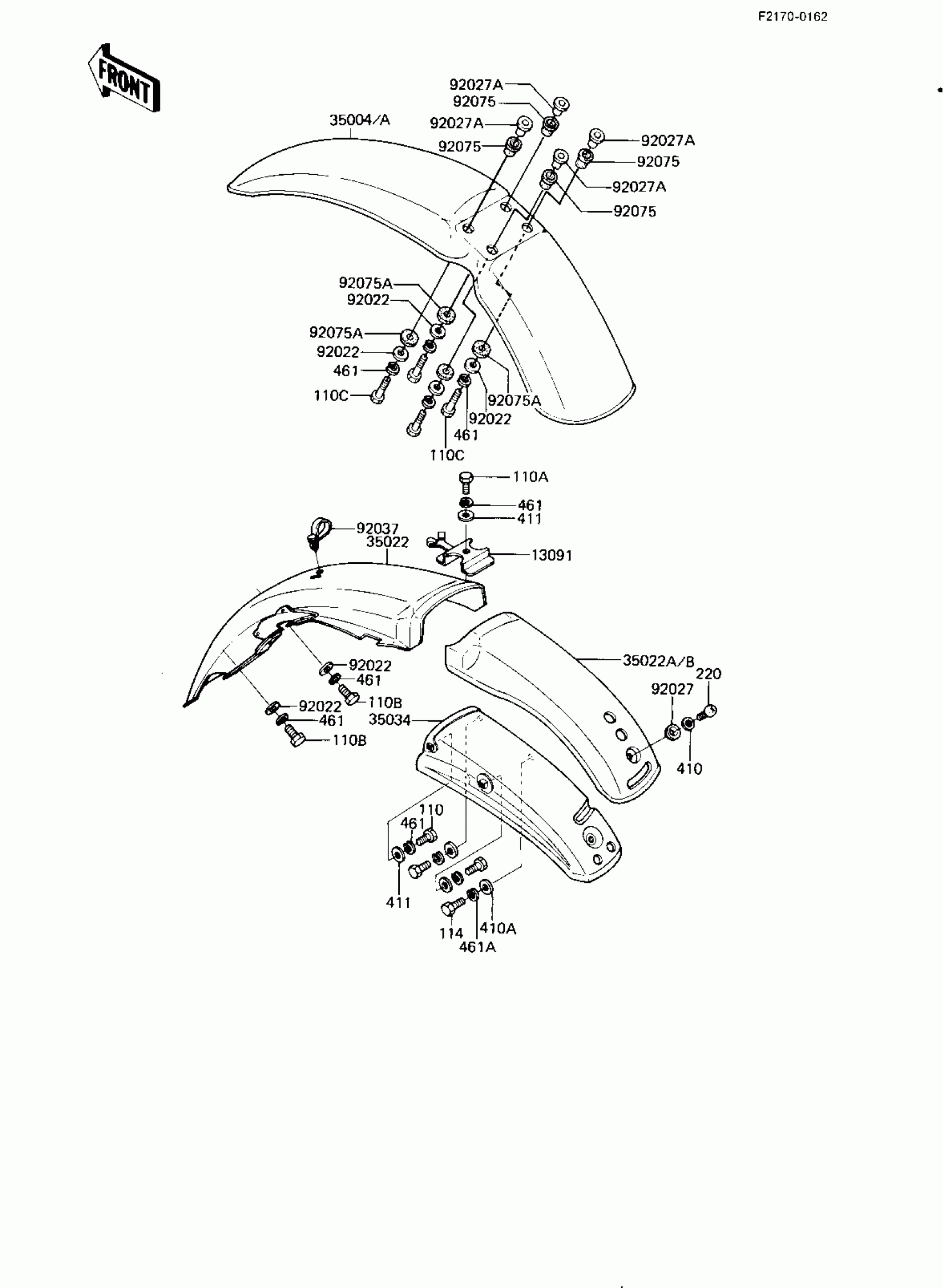

Kawasaki KE175 FENDERS ('82-'83 KE175-D4/D5) Diagram

Description

Price

13091

HOLDER,WIRING HARNESS

13091-1022

Unavailable

35004

FENDER-FRONT,EBONY (Canada)

35004-1024-6C

Unavailable

35022

FENDER-RR

35022-1017

$77.35

35022A

FENDER-COMP-REAR,RR,EBONY (Can

35022-1018-6C

Unavailable

35034

REINFORCE,REAR FENDER

35034-1029

$67.53

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,L=3.5

92027-1018

$3.98

92027A

COLLAR

92027-194

$4.18

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92075

DAMPER RUBBER

92075-103

$3.35

92075A

DAMPER,FENDER

92075-121

$3.49

110

BOLT-UPSET,6X12

112G0612

Unavailable

110A

BOLT-UPSET 6X14

112B0614

Unavailable

110B

BOLT-UPSET,6X16

112G0616

Unavailable

110C

BOLT-UPSET

112G0625

Unavailable

114

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

410A

WASHER PLAIN 8MM

410B0800

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable
