1983 Kawasaki KE175 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1983 Kawasaki KE175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

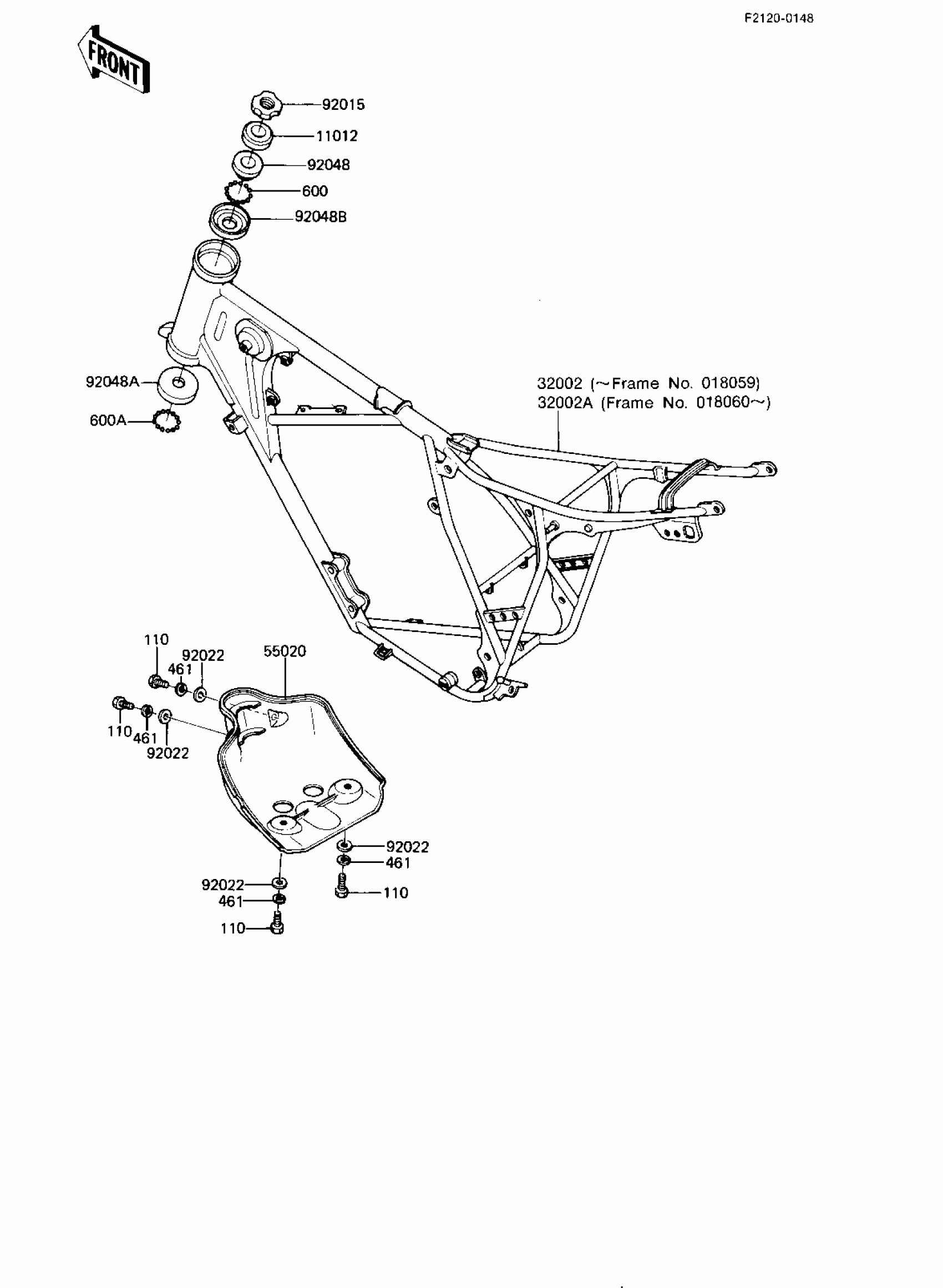

1983 Kawasaki KE175 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-018

1

$5.15

In stock

32002A

FRAME-COMP,US (Canada)

32002-1482

1
Out of stock

55020

GUARD,ENGINE

55020-1025

1

$28.98

In stock

92015

1

$20.25

In stock

92022

WASHER-PLAIN,7MM

92022-240

1
Out of stock

92048

RACE,STEERING STEM BEARING

92047-014

1
Out of stock

92048A

RACE,STEERING STEM BEARING,LWR

92048-005

1
Out of stock

92048B

RACE,STEERING STEM BEARING

92048-009

1
Out of stock

110

BOLT-UPSET,6X16

112G0616

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

600

BALL-STEEL,3/16

600A0600

1

$1.02

In stock

600A

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
