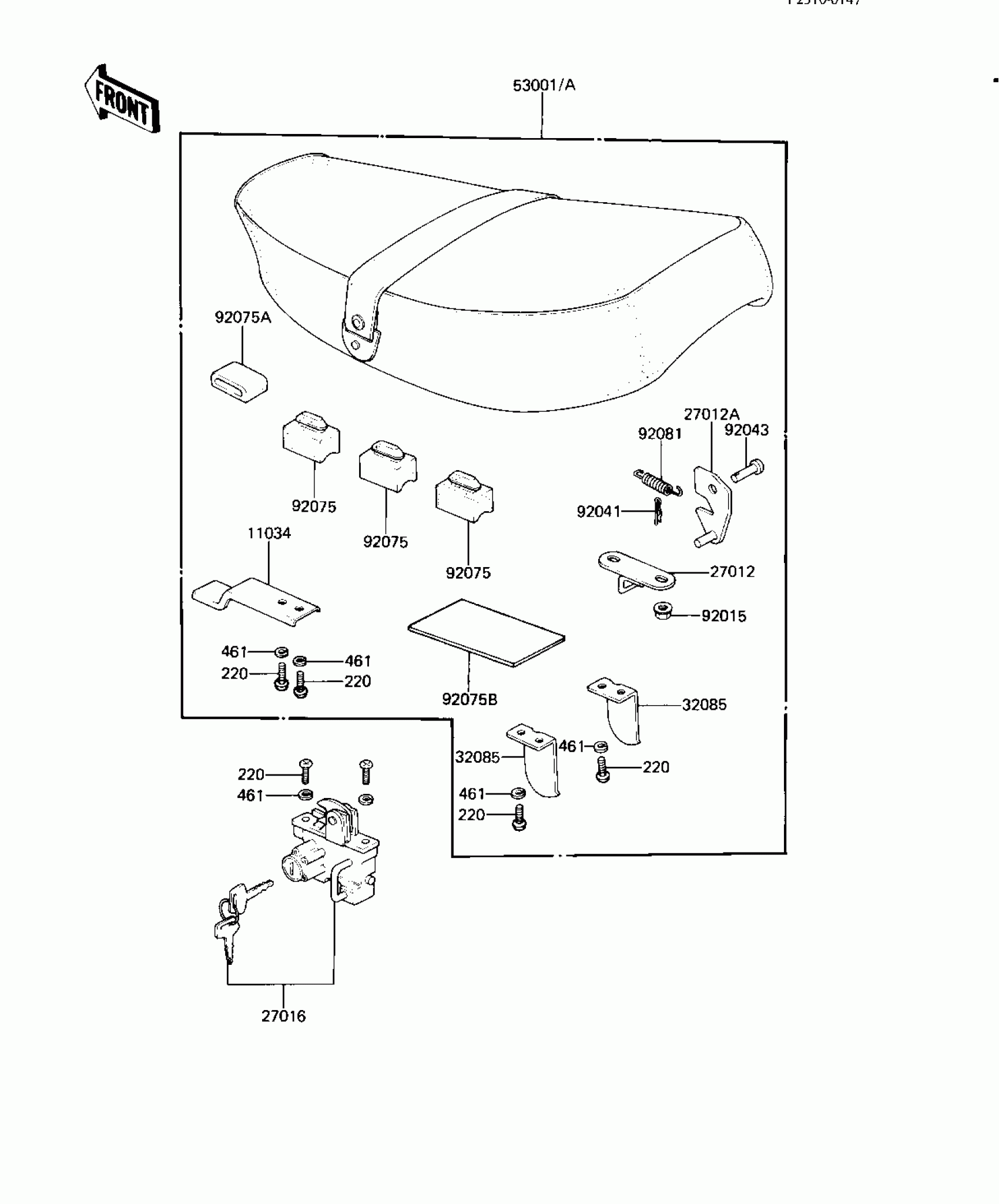

Kawasaki KE125 SEAT ('82-'83 A9/A10) Diagram

Description

Price

11034

BRACKET,DUAL SEAT

53032-005

$10.61

27012

HOOK,SEAT,LH

27012-1021

$8.39

27012A

HOOK,SEAT,R.H

53008-029

$5.15

27016

LOCK-ASSY,SEAT

27016-5044

$74.40

32085

STOPPER,SEAT

53059-001

$12.51

53001A

53001-1374 (Canada)

53001-1247

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92041

COTTER PIN

92041-003

$4.35

92043

PIN DUAL SEAT PIVOT

53011-001

$4.92

92075

DAMPER,SEAT

92075-216

Unavailable

92075A

DAMPER,SEAT

92075-219

Unavailable

92075B

DAMPER RUBBER,BATERY

92075-224

Unavailable

92081

SPRING,HOOK

53012-013

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

461

WASHER SPRING 6MM

461F0600

Unavailable
