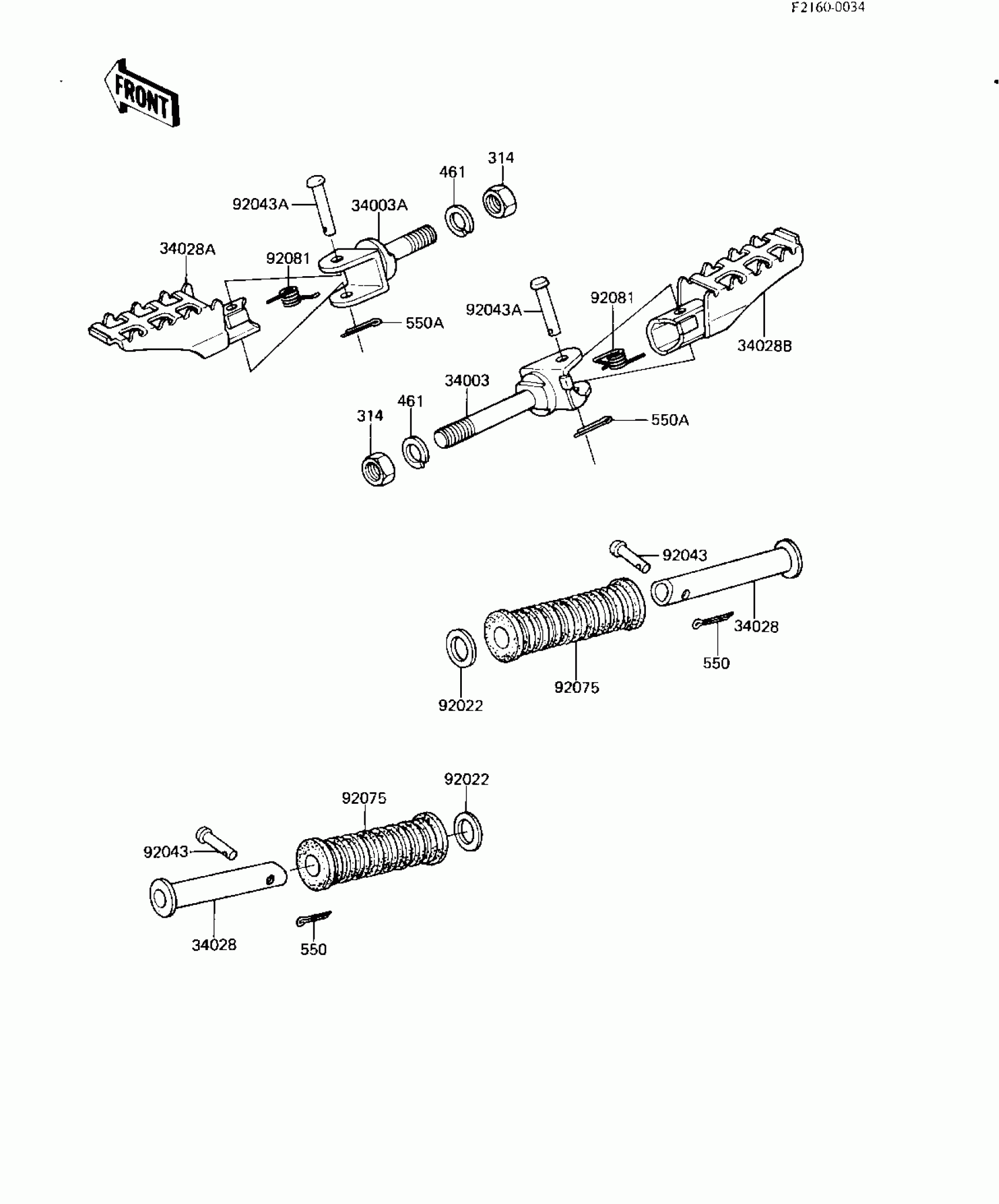

Kawasaki KE125 FOOTRESTS ('82-'83 A9/A10) Diagram

Description

Price

34003

HOLDER-STEP,RH

34003-1111

$47.32

34003A

HOLDER-STEP,FR,LH

34003-1112

$59.07

34028

STEP,RR

34028-009

$24.51

34028A

STEP,L.H FR FOOTREST

34028-1013

Unavailable

34028B

STEP,R.H FR FOOTREST

34028-1014

$53.95

92022

WASHER-PLAIN (OPT)

92022-199

Unavailable

92043

PIN,6X28

92043-1464

$6.18

92043A

PIN,8X31

92043-080

$5.03

92075

RUBBER,REAR FOOTREST

92076-024

$20.16

92081

SPRING,STEP

92081-1133

$5.95

314

NUT,14MM

314B1400

Unavailable

461

WASHER SPRING 14MM

461F1400

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.5X15

550D2515

$0.47
