1983 Kawasaki KE125 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1983 Kawasaki KE125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

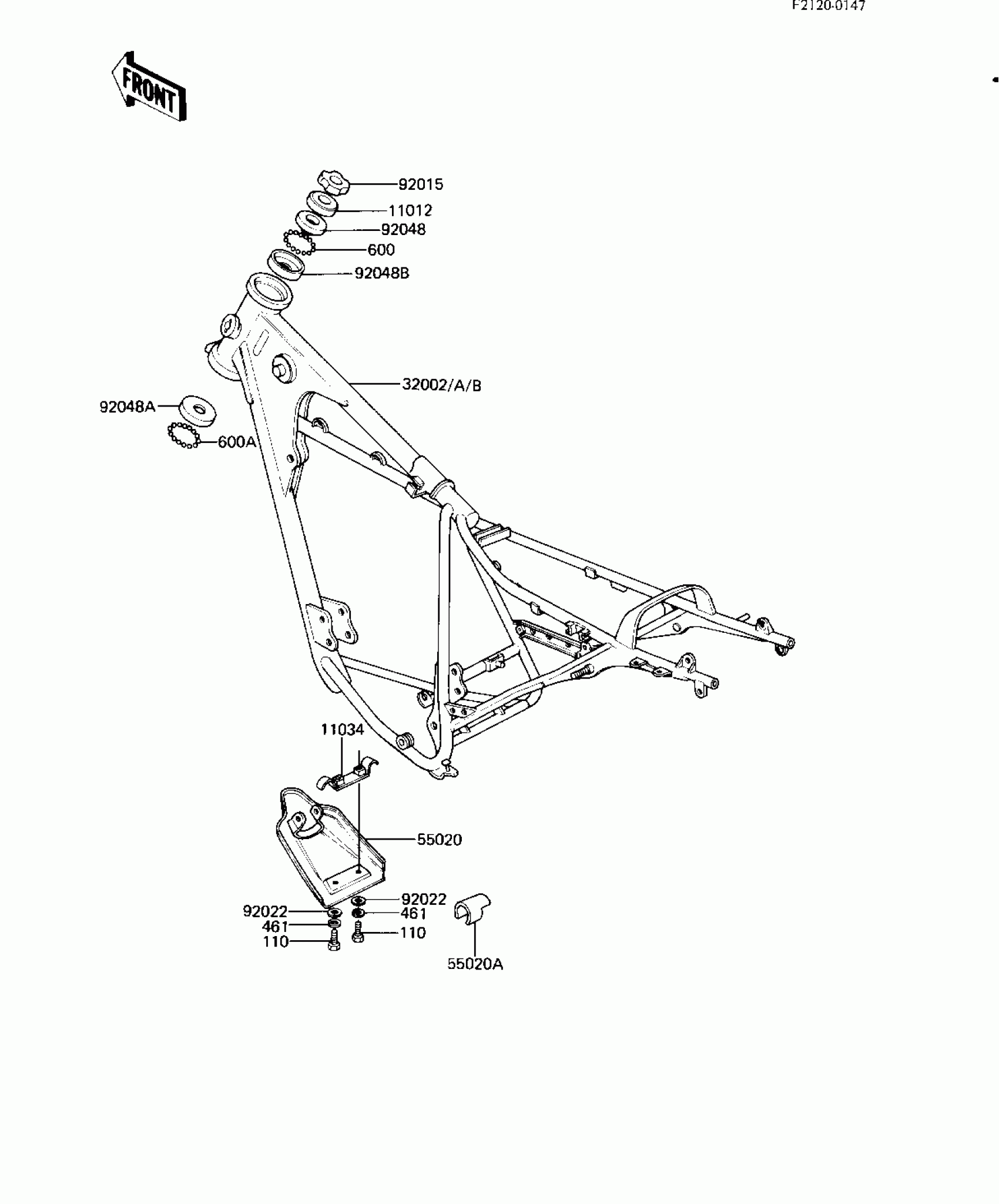

1983 Kawasaki KE125 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-018

1
Out of stock

11034

BRACKET,ENGINE GUARD

55016-008

1
Out of stock

32002A

FRAME-COMP,US (Canada)

32002-1487

1
Out of stock

32002B

FRAME-COMP,US (Canada)

32002-1487

1
Out of stock

55020

GUARD,ENGINE

55011-020

1
Out of stock

55020A

GUARD,CHAIN

55020-1045

1
Out of stock

92015

NUT,STEERING LOCK,25MM

92090-022

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92048

RACE,STEERING STEM BEARING

92047-014

1
Out of stock

92048A

RACE,STEERING STEM BEARING,LWR

92048-005

1
Out of stock

92048B

RACE,STEERING STEM BEARING

92048-009

1
Out of stock

110

BOLT-UPSET,6X16

112G0616

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

600

BALL-STEEL,3/16

600A0600

1
Out of stock

600A

BALL-STEEL,1/4

600A0800

1
Out of stock
