1986 Kawasaki KE100 Side Cover/chain Cover Diagram

← All diagrams

Find the part on the Side Cover/chain Cover diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

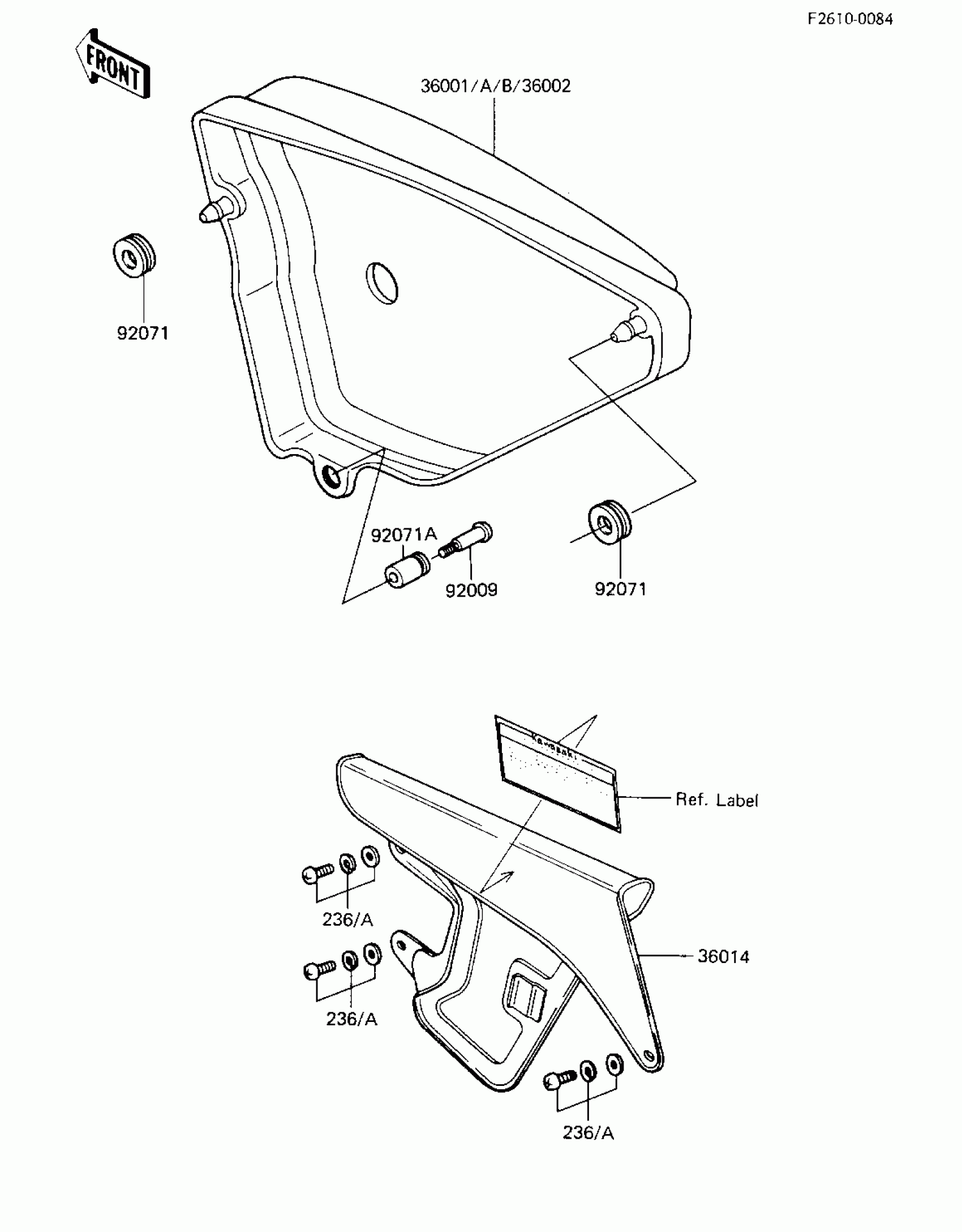

1986 Kawasaki KE100 Side Cover/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36002

COVER-SIDE,RH,P.WHITE

36002-5189-6F

1
Out of stock

36014

CASE-CHAIN,BLACK

36014-1047

1
Out of stock

92009

SCREW,PLUG

92009-1001

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock

92071A

GROMMET,SIDE COVER

92071-1001

1

$6.69

In stock

236A

SCREW-PAN-WSP-CROS,6X12

236C0612

1
Out of stock
← Gear Change Mechanism Transmission →

More Drive & Transmission diagrams
