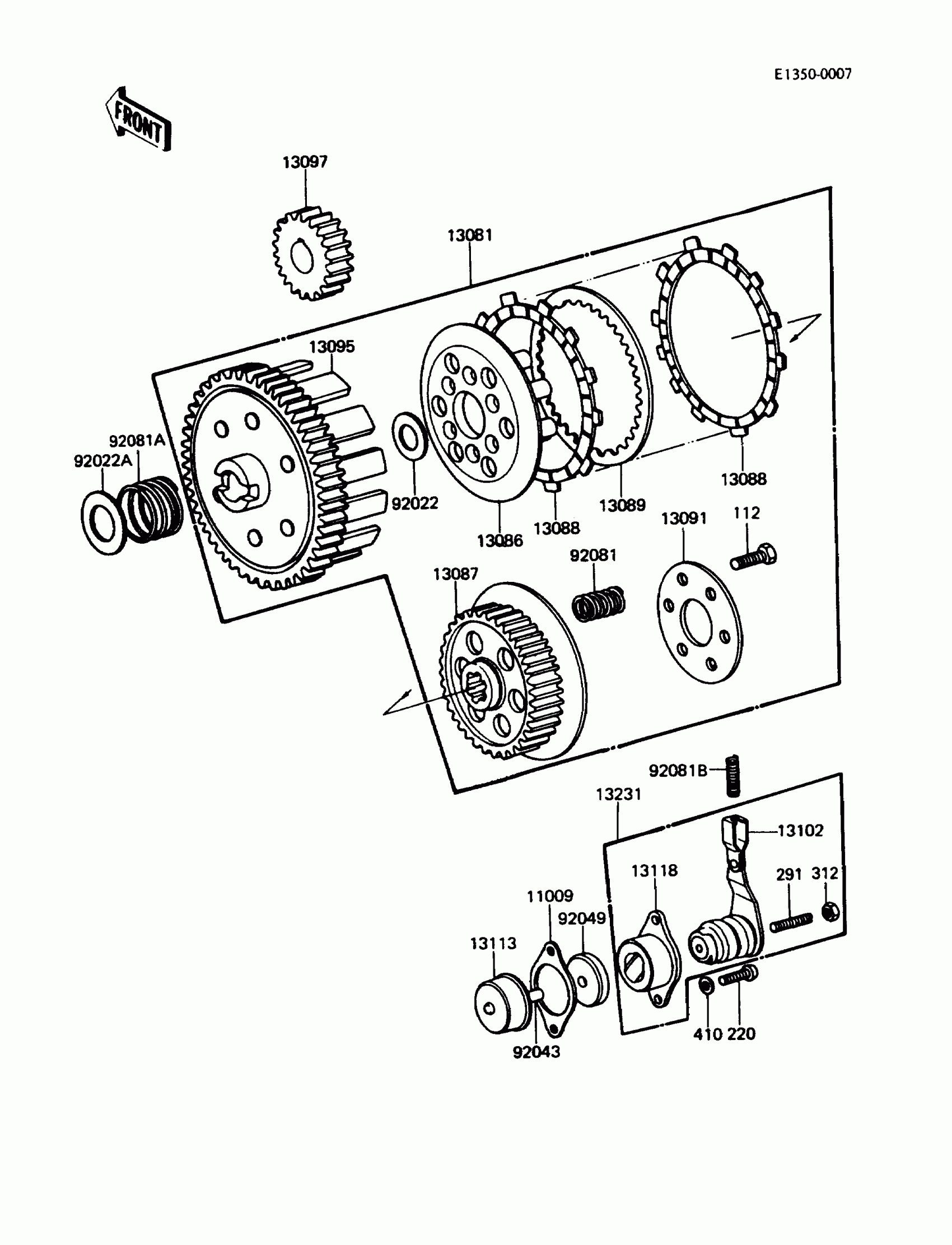

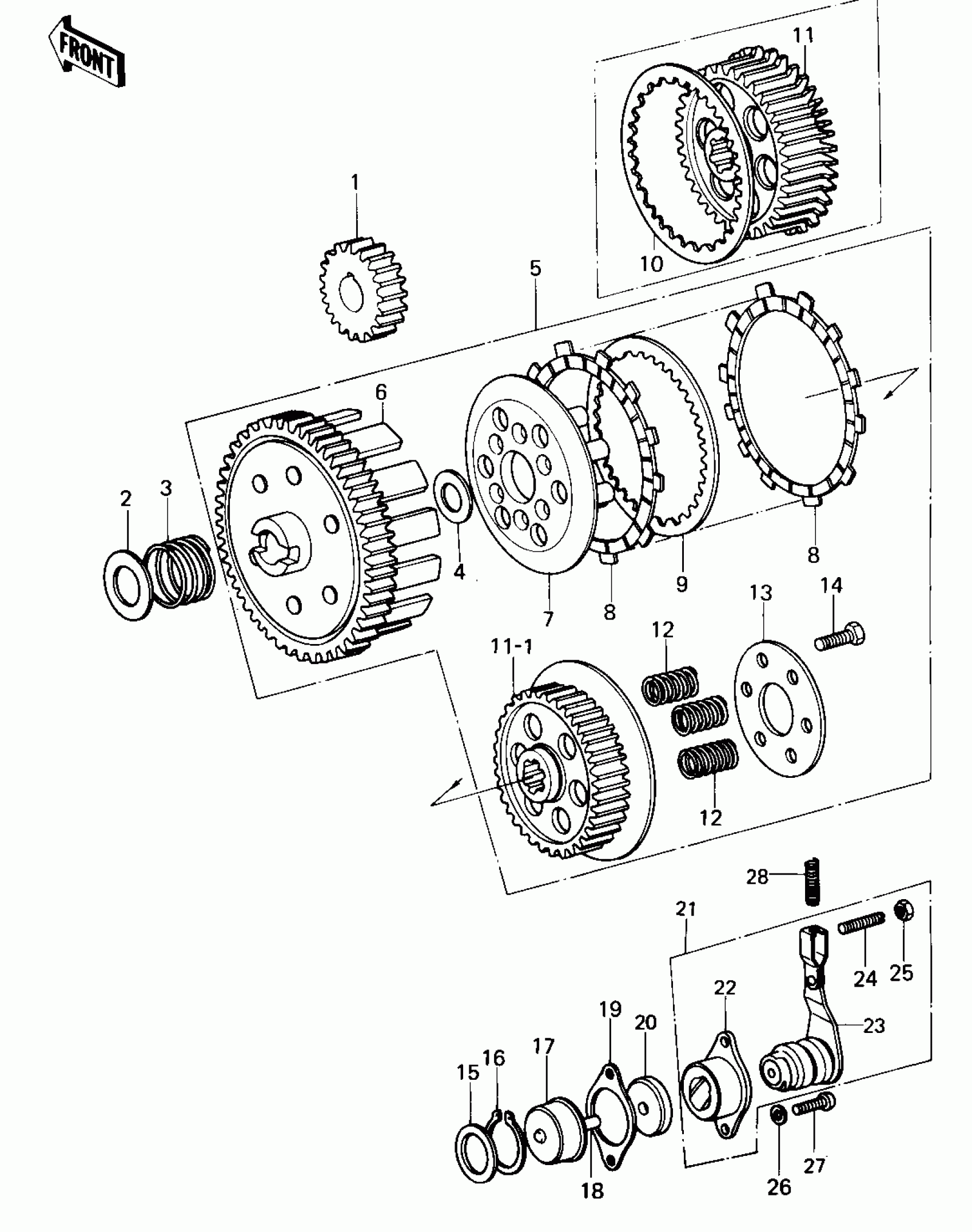

Kawasaki KE100 CLUTCH Diagram

#

Description
Price

1

PINION,PRIMARY

13121-032

$95.91

1

PINION,PRIMARY

13121-032

$95.91

2

WASHER,25.5X36X1

92022-057

$3.92

3

SPRING,CLUTCH DAMPER

92081-015

$5.97

4

WASHER,16.5X27X1.4

92022-054

$8.03

5

CLUTCH-ASSY

13081-028

Unavailable

5

CLUTCH-ASSY

13081-028

Unavailable

6

HOUSING-COMP-CLUTCH

13095-022

Unavailable

6

HOUSING-COMP-CLUTCH

13095-022

Unavailable

7

WHEEL-CLUTCH

13086-1002

$45.84

7

WHEEL-CLUTCH

13086-1002

$45.84

8

PLATE-FRICTION

13088-1103

Unavailable

9

PLATE-CLUTCH,STEEL

13089-1009

$10.67

10

PLATE CLUTCH OUTER

13090-004

Unavailable

11

HUB-CLUTCH

13087-1011

$92.86

11-1

HUB-CLUTCH

13087-1011

$92.86

12

SPRING,CLUTCH

92081-012

$5.13

13

HOLDER,CLUTCH SPRING

13091-1115

$17.20

14

BOLT-UPSET

112G0516

Unavailable

15

WASHER,THRUST,16.5X21X0.8

92022-053

$3.59

16

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

17

PUSHER-COMP-CLUTCH

13113-003

$9.22

18

PIN,DOWEL,7X20

92042-043

$4.14

19

GASKET,CLUTCH RELEASE

11060-1197

$6.97

20

SEAL-OIL

92050-071

$8.45

21

RELEASE-ASSY-CLUTCH

13231-1008

Unavailable

22

RELEASE-ASSY-CLUTCH

13231-1008

Unavailable

23

RELEASE-ASSY-CLUTCH

13231-1008

Unavailable

24

SCREW-SET,6X16

291H0616

$7.42

25

NUT 6MM

312B0600

Unavailable

26

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

27

SCREW-PAN-CROS,6X16

220B0616

Unavailable

28

SPRING,CLUTCH RELEASE

92081-096

$4.29
