1996 Kawasaki KE100 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1996 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

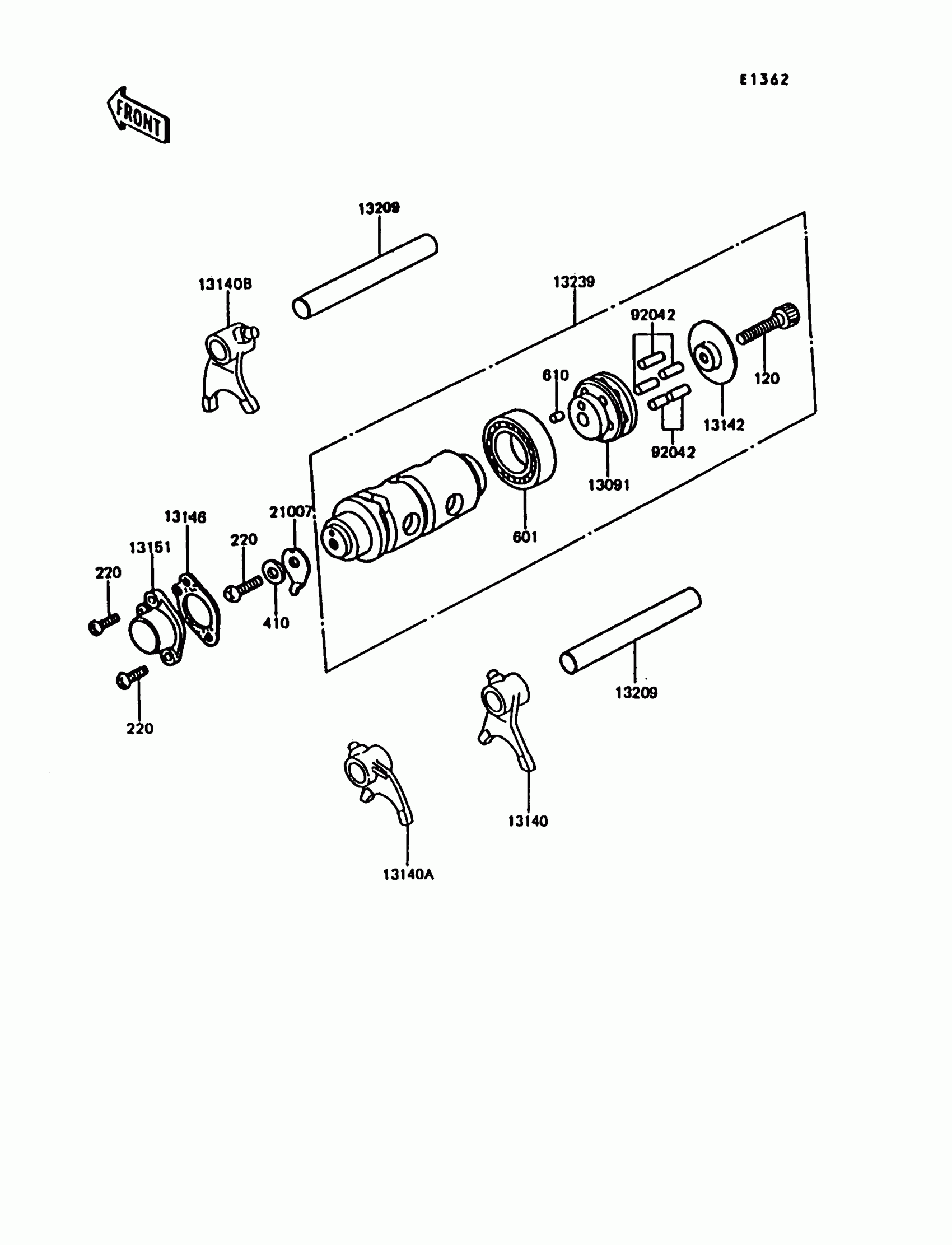

1996 Kawasaki KE100 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X30

120Q0630

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

410

1

$1.19

In stock

601

1

$9.84

In stock

610

ROLLER,4X6

610A0406

1

$3.43

In stock

13091

HOLDER,CHANGE DRUM

13091-1077

1

$38.21

In stock

13140

FORK-SHIFT,LOW&2ND

13140-1026

1

$89.95

In stock

13140A

FORK-SHIFT,3RD

13140-1027

1

$103.50

In stock

13140B

FORK-SHIFT,4TH&TOP

13140-1028

1
Out of stock

13142

1

$20.34

In stock

13146

1

$4.14

In stock

13151

SWITCH-COMP,NEUTRAL

13151-1002

1

$15.86

In stock

13209

ROD-SHIFT,10X80

13209-014

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1034

1
Out of stock

21007

ROTOR,TOP & NEUTRAL

21007-1003

1

$7.97

In stock

92042

PIN,DOWEL,4X14.8

92042-042

1

$4.08

In stock
