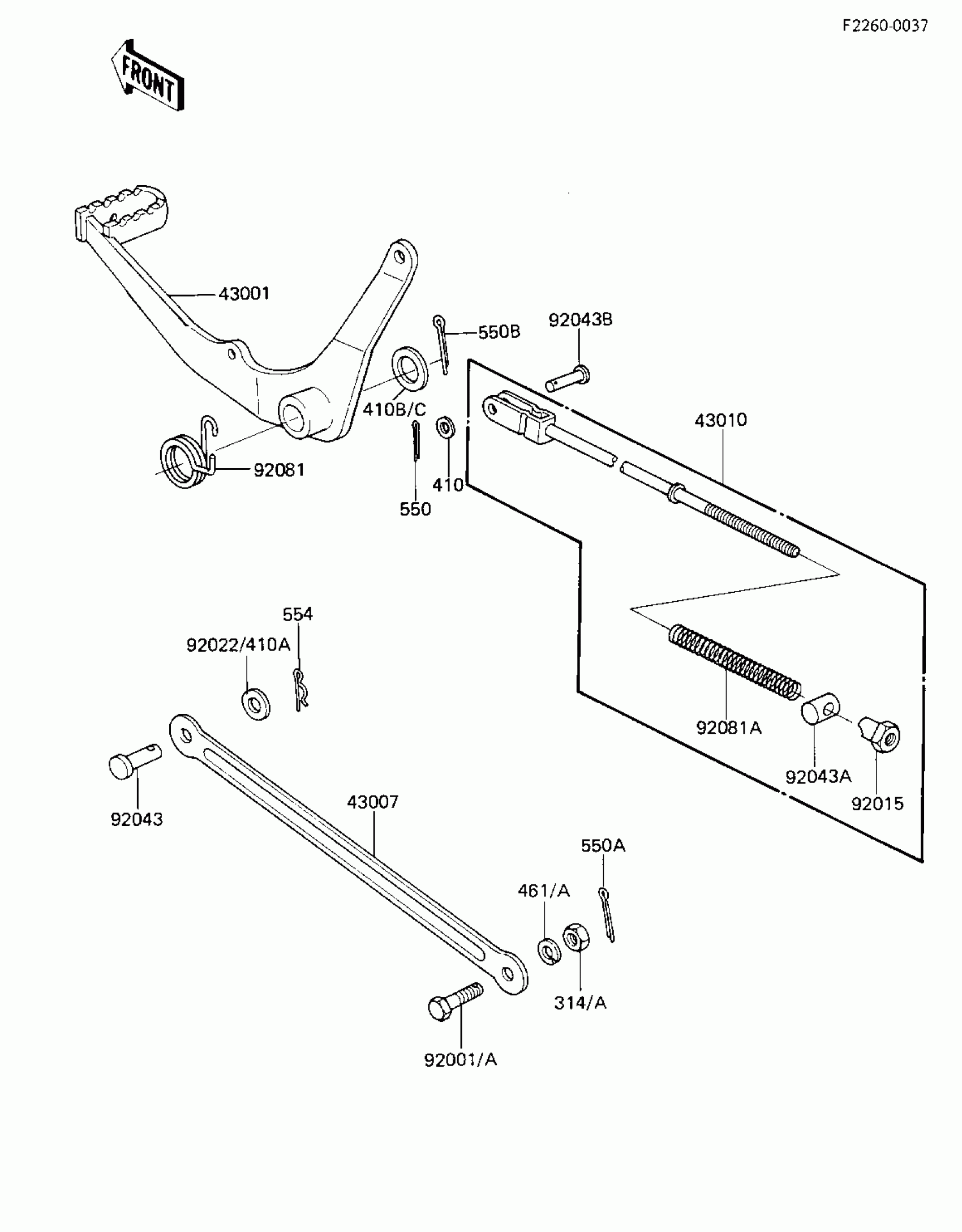

Find the part on the Brake Pedal/torque Link diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KE100 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-056

1
Out of stock

43007

ROD-TORQUE,RR

43007-028

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-5001

1
Out of stock

92001

BOLT,10X32

92001-1671

1

$5.42

In stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92022

WASHER PLAIN 10MM

410B1000

1
Out of stock

92043

PIN,SPRING,10X12

43009-001

1
Out of stock

92043A

PIN,BRAKE ROD

92043-039

1

$5.06

In stock

92043B

PIN,6X17

92043-064

1

$3.72

In stock

92081

SPRING,BRAKE PEDAL

43005-007

1
Out of stock

92081A

SPRING,BRAKE ROD

43012-001

1

$3.69

In stock

314A

NUT-HEX-FINE,10MM,BLACK

314C1000

1
Out of stock

410

1

$1.19

In stock

410C

WASHER-PLAIN-SMALL,14MM,BLACK

410F1400

1
Out of stock

461A

WASHER SPRING 10MM

461F1000

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

550A

1

$0.51

In stock

550B

1

$2.08

In stock

554

PIN-SNAP,8MM

554A0800

1
Out of stock
