1988 Kawasaki KDX80 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1988 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

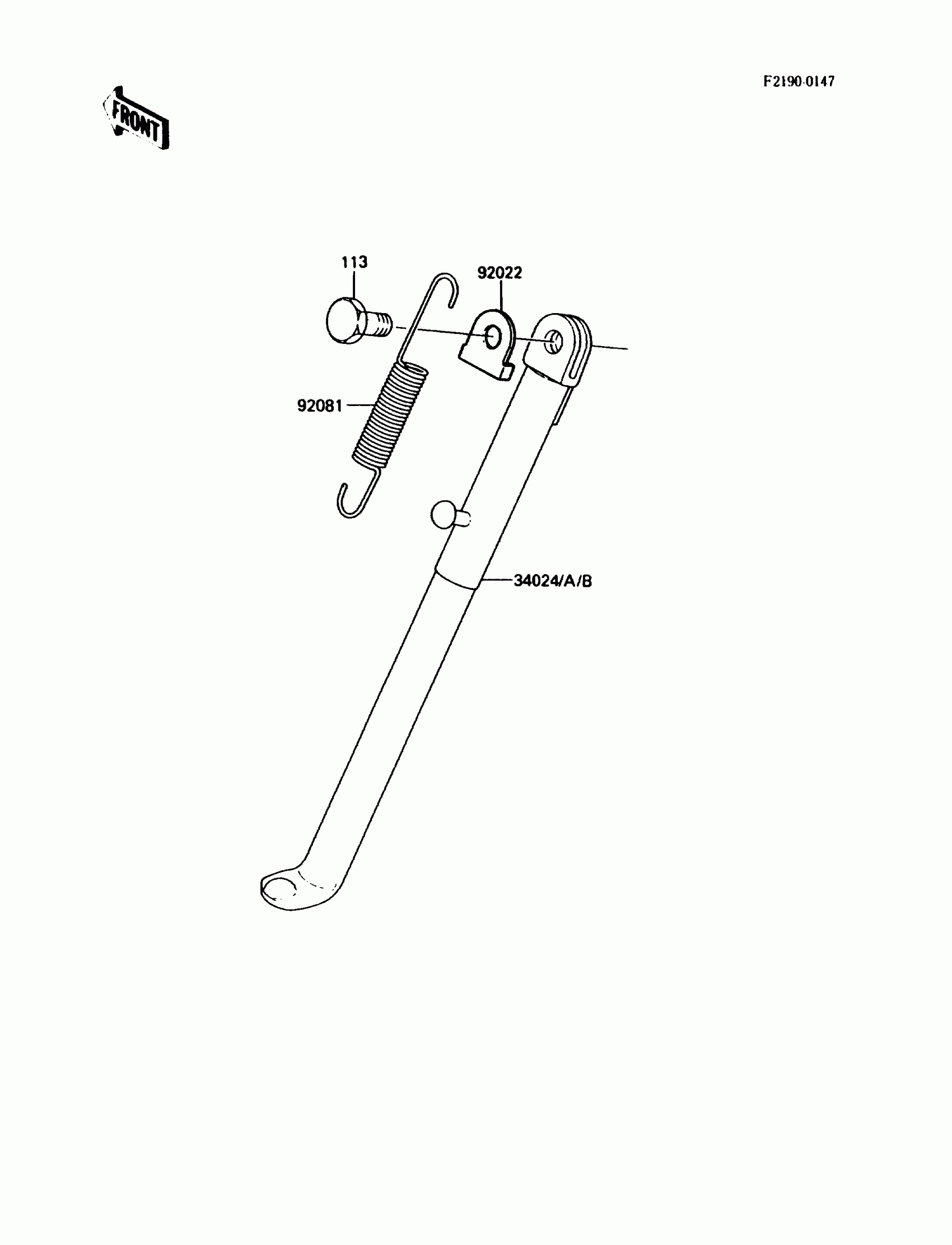

1988 Kawasaki KDX80 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34024B

STAND-SIDE

34024-1235

1

$66.85

In stock

92022

WASHER,LOCK

92022-1473

1
Out of stock

92081

SPRING,STAND

34025-005

1

$6.03

In stock

113

BOLT,HEX HEAD,10X18

113G1018

1
Out of stock
