1983 Kawasaki KDX80 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1983 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

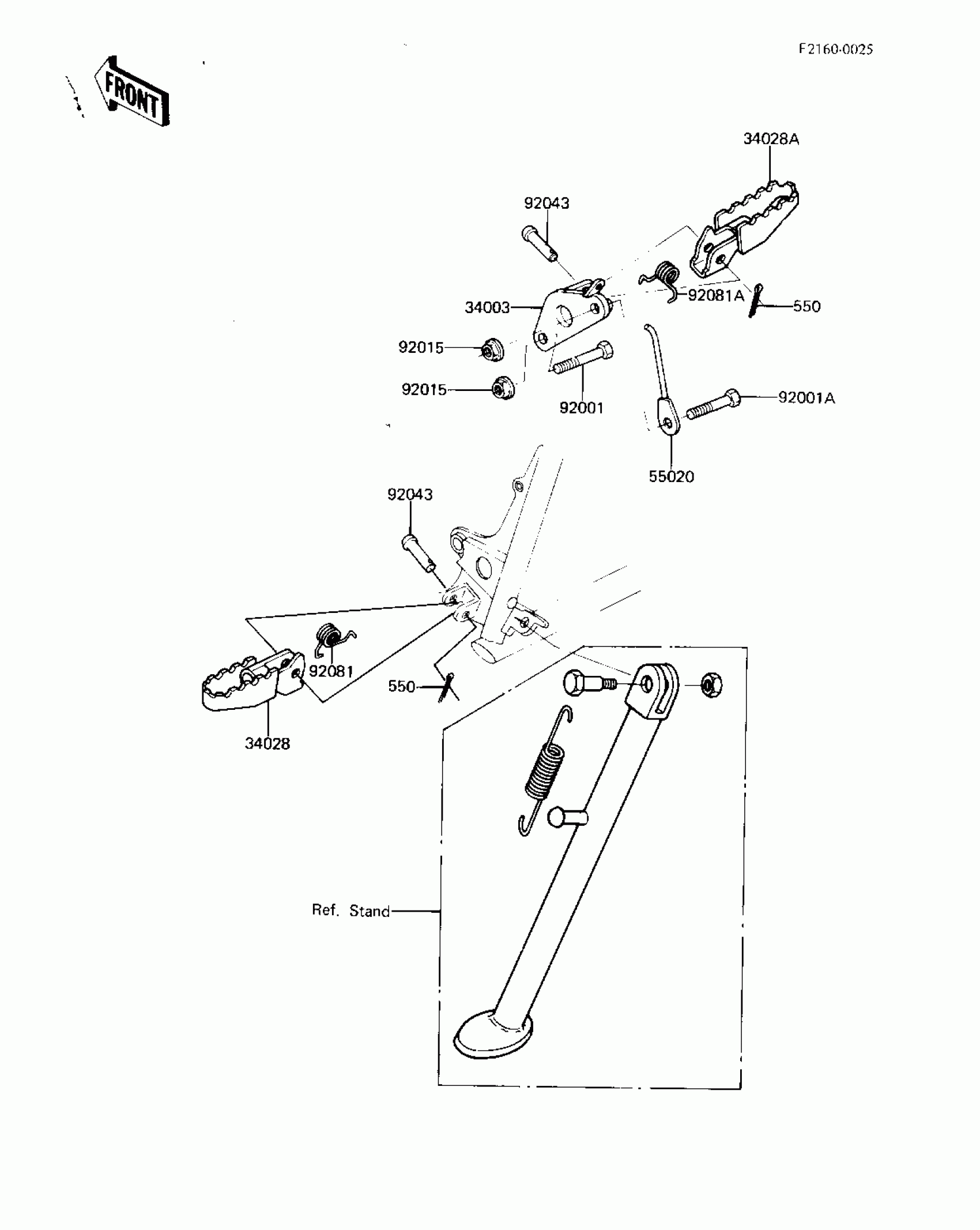

1983 Kawasaki KDX80 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER,STEP,R,H

34003-1077

1
Out of stock

34028

STEP,FOOTREST,L.H.

34028-1011

1
Out of stock

34028A

STEP,FOOTREST,R.H.

34028-1012

1
Out of stock

55020

GUARD,BRAKE ROD

55020-1058

1
Out of stock

92001

BOLT,8X50

92001-1439

1
Out of stock

92001A

BOLT,8X45

92001-1449

1

$5.21

In stock

92015

NUT,8MM

92015-1143

1
Out of stock

92043

PIN,8X35.5

92043-115

1

$9.22

In stock

92081

SPRING,L.H FOOTREST

92081-1288

1
Out of stock

92081A

SPRING,R.H FOOTREST

92081-1289

1
Out of stock

550

1

$0.51

In stock
