1983 Kawasaki KDX80 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1983 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

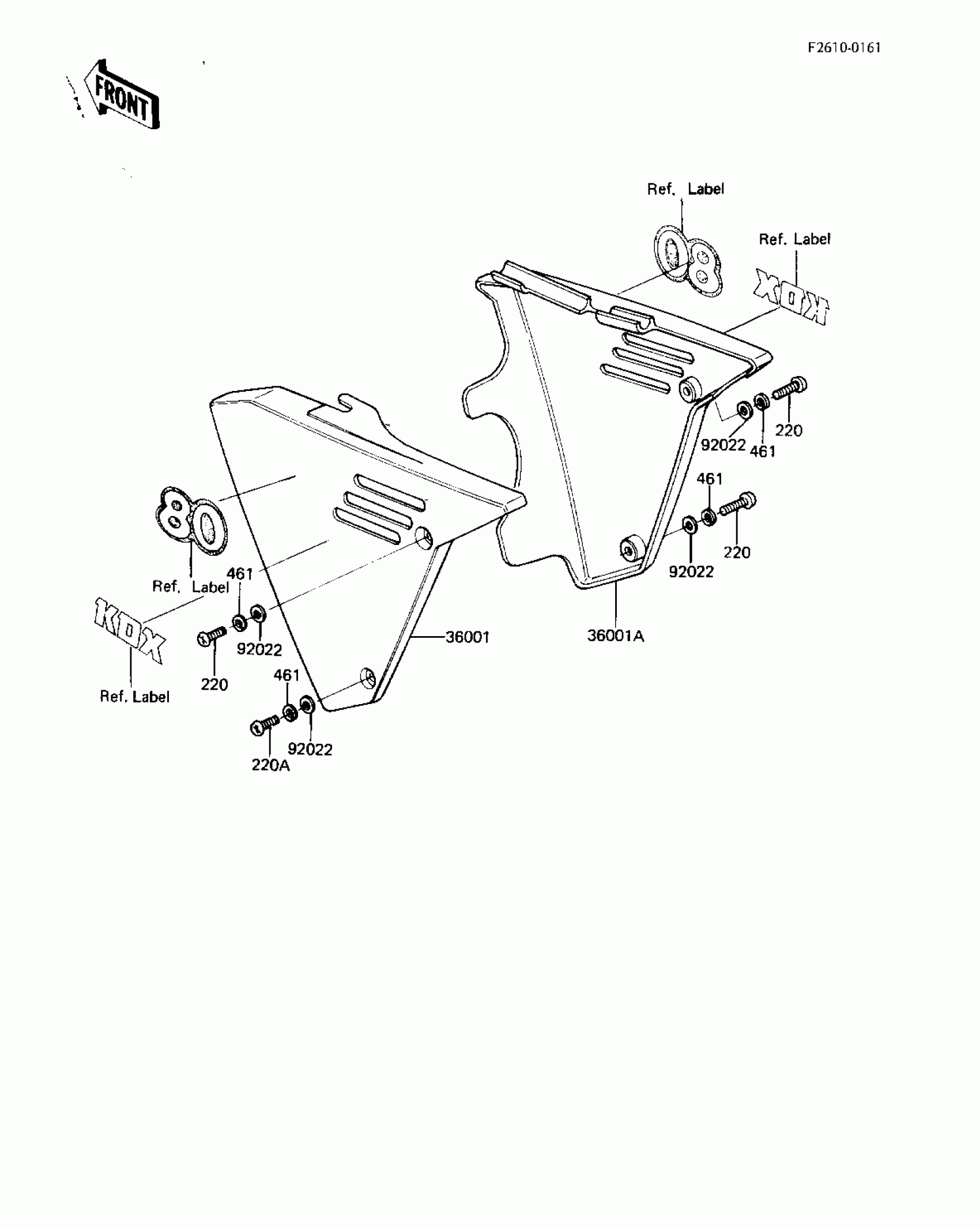

1983 Kawasaki KDX80 Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER,SIDE,L GREEN

36001-1112-6W

1

$55.42

In stock

36001A

COVER,R.H SIDE L.GRN

36001-1113-6W

1

$55.42

In stock

92022

WASHER PLAIN

92022-024

1

$2.92

In stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

220A

1

$4.61

In stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
