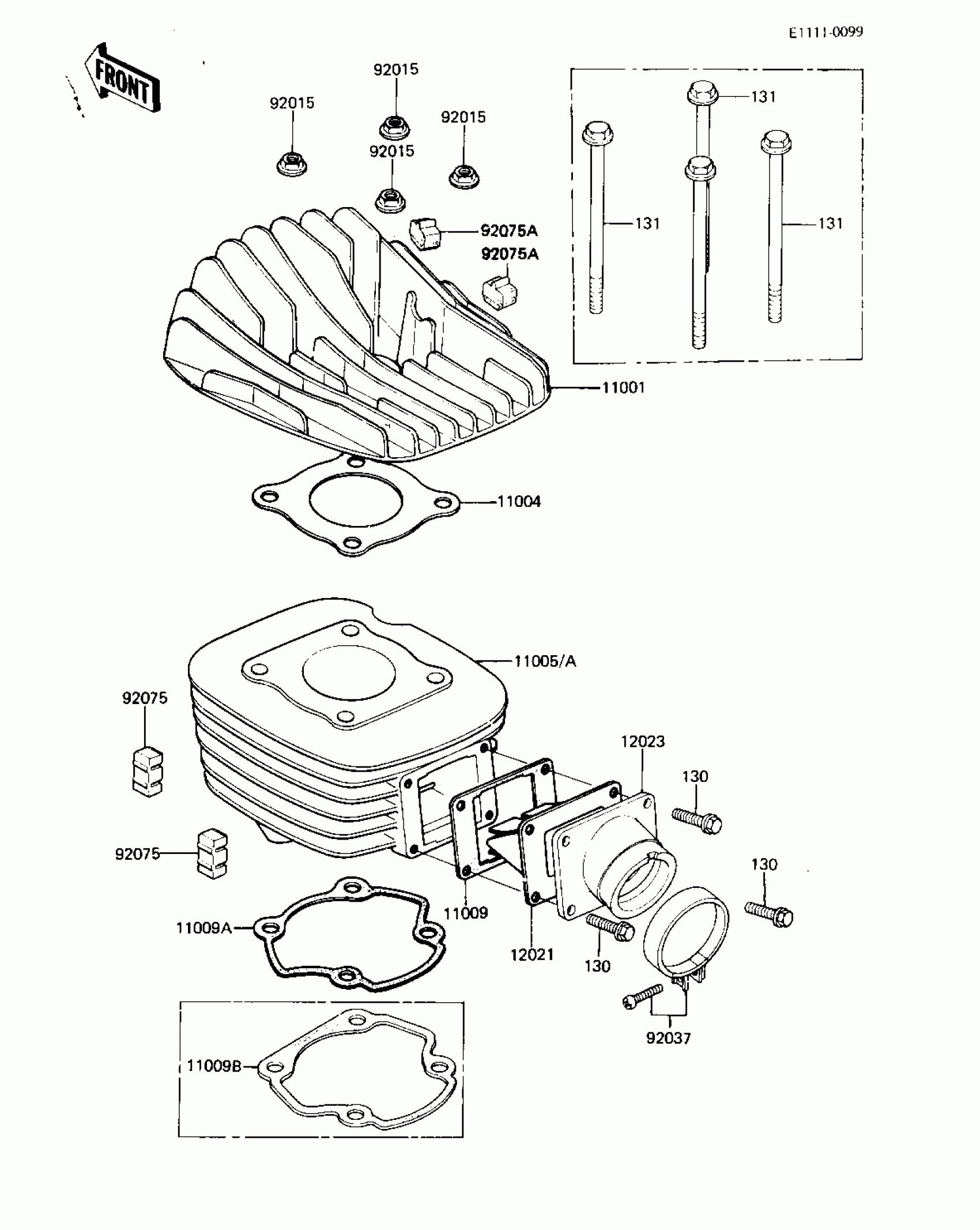

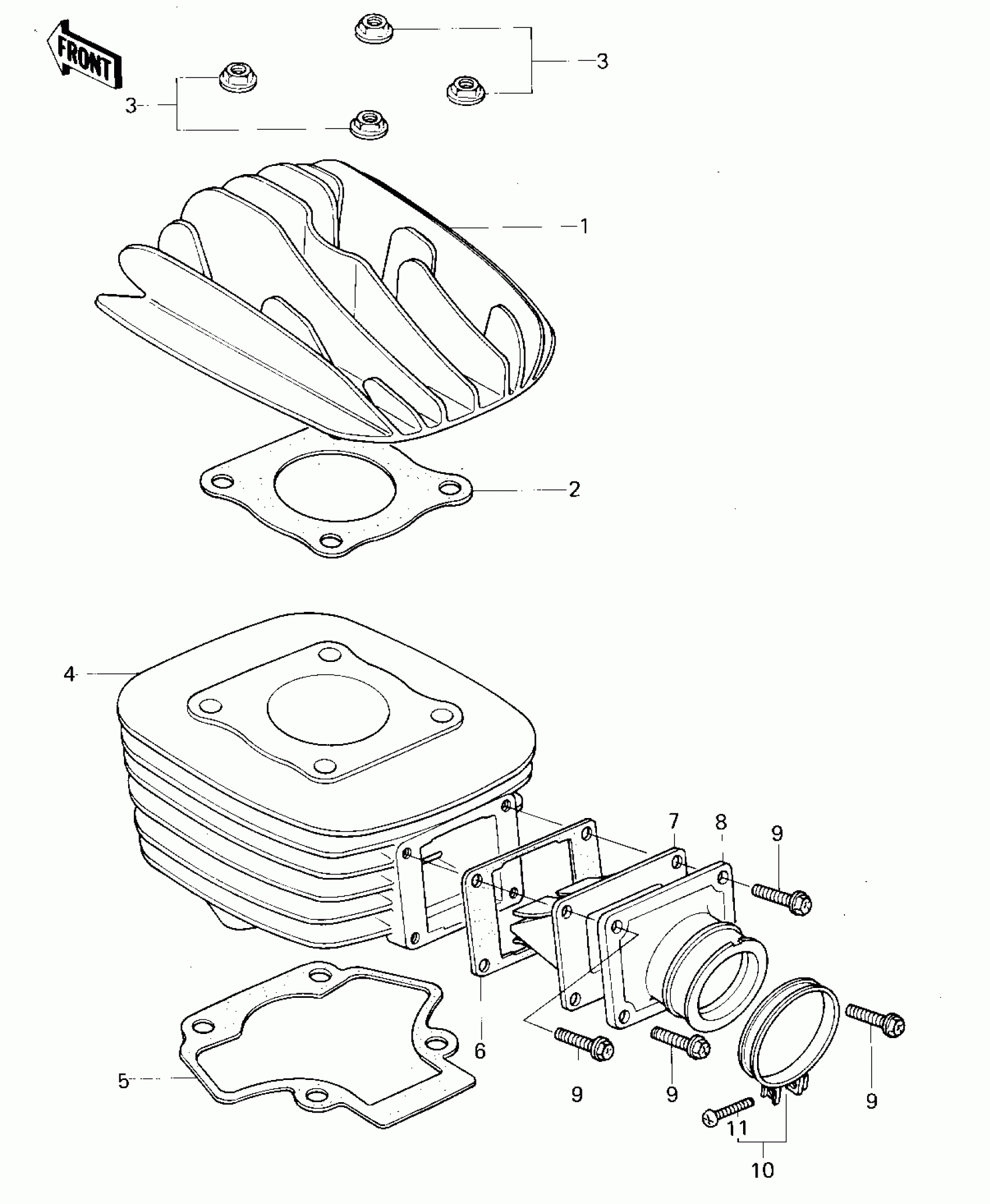

Kawasaki KDX80 CYLINDER HEAD/CYLINDER/REED VALVE Diagram

#

Description

Price

1

HEAD,CYLINDER

11001-1032

Unavailable

2

GASKET,HEAD,CYLINDER

11004-1013

Unavailable

3

NUT,FLANGED,8MM

92015-1014

Unavailable

4

CYLINDER

11005-1071

Unavailable

5

GASKET,CYLINDER BASE

11009-1153

Unavailable

6

GASKET,REED VALVE

11009-1109

Unavailable

7

VALVE ASSY,REED

12021-1005

Unavailable

8

HOLDER,VALVE,REED

12023-1005

Unavailable

9

BOLT-FLANGED,6X20

130G0620

Unavailable

10

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

11

SCREW-PAN-CROS,5X25

220B0525

Unavailable
