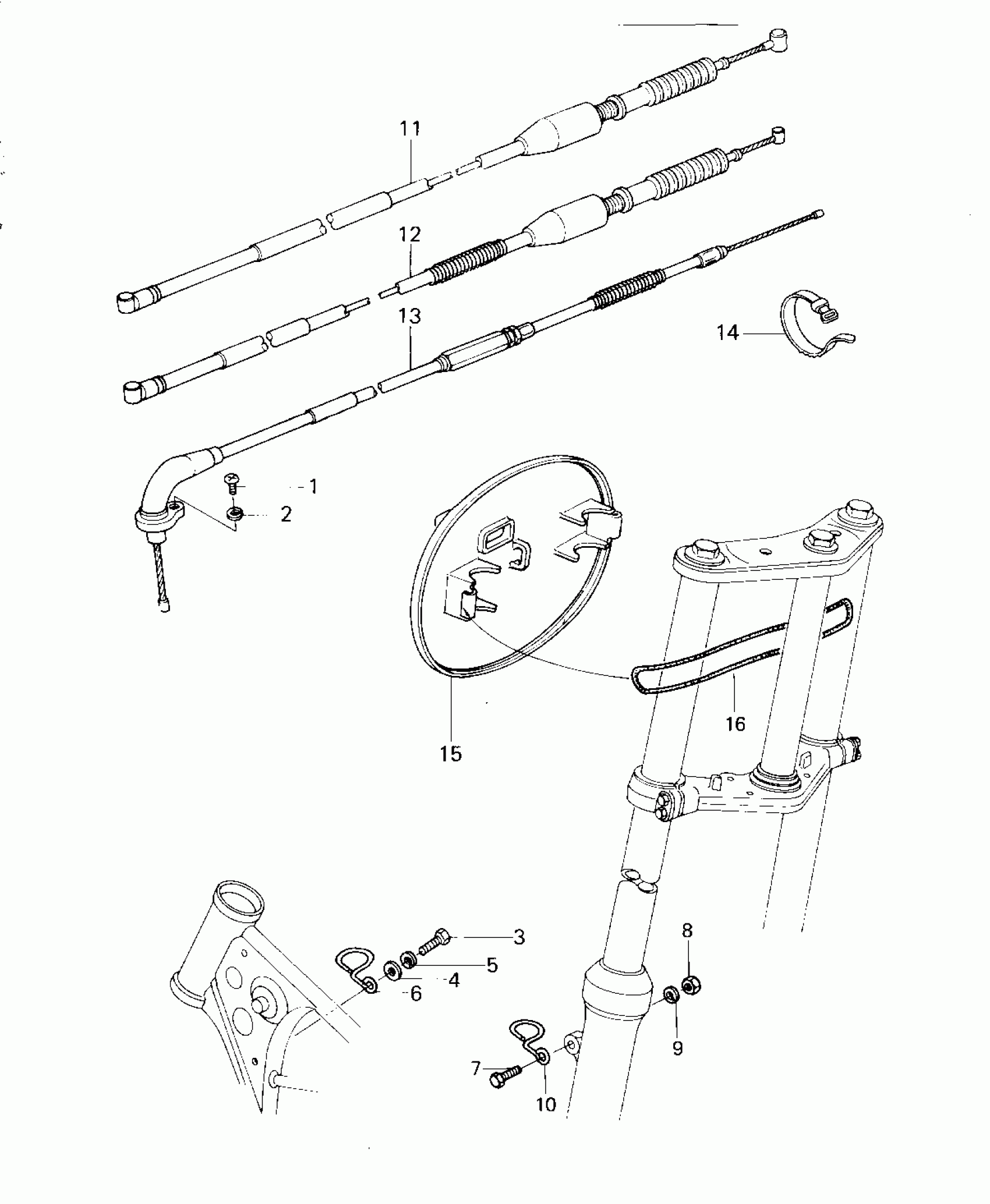

Kawasaki KDX80 CABLES/NUMBER PLATE Diagram

#

Description

Price

1

SCREW PAN HEAD 5X10

220B0510

Unavailable

2

WASHER SPRING 5MM

461F0500

Unavailable

3

BOLT-UPSET,6X12

112G0612

Unavailable

4

WASHER PLAIN 6MM

411B0600

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

CLAMP,CABLE

92037-092

$7.72

7

BOLT-UPSET

112G0618

Unavailable

8

NUT 6MM

311B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

CLAMP,CABLE

92037-092

$7.72

11

CABLE,BRAKE,FRONT

54005-1013

Unavailable

12

CABLE-CLUTCH

54011-1035

Unavailable

13

CABLE,THROTTLE

54012-1022

Unavailable

14

BAND,L=186

92072-056

$3.97

15

PLATE,NUMBER,L.GREEN

58029-1002-6W

Unavailable

16

"O" RING,135MM

92055-1058

Unavailable
