1981 Kawasaki KDX80 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1981 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

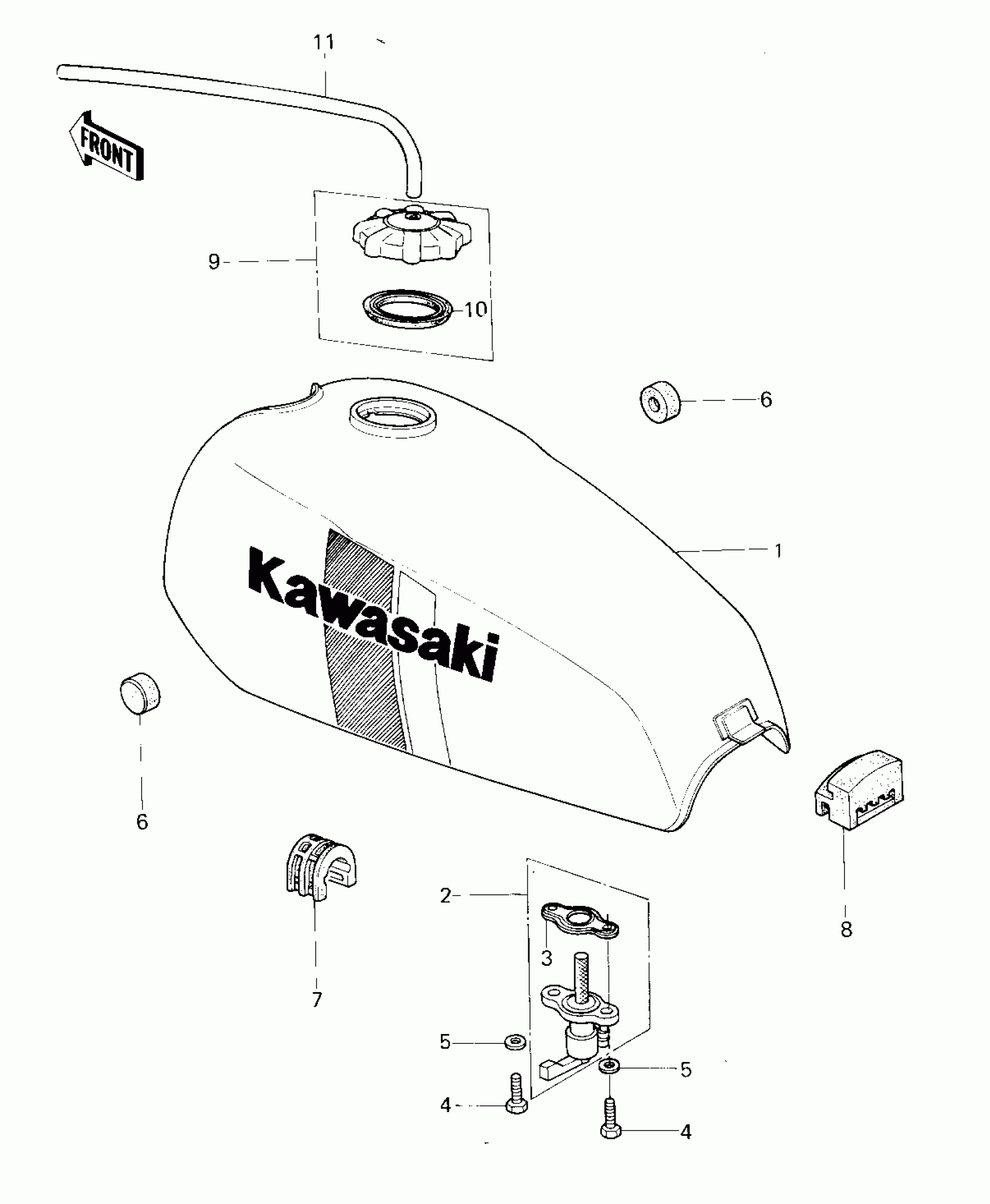

1981 Kawasaki KDX80 Fuel Tank Diagram

#

Description
Price
Status
Order Qty

1

TANK-FUEL,LIME GREEN

51001-5046-7F

$376.20

In stock

2

TAP-ASSY,FUEL

51023-1115

Out of stock

3

GASKET,FUEL TAP

11009-1135

Out of stock

4

BOLT,6X20

92001-1091

$3.12

In stock

5

WASHER-PLAIN

92022-183

Out of stock

6

DAMPER,FUEL TANK

92075-101

$4.93

In stock

7

DAMPER,FUEL TANK

92075-1065

Out of stock

8

DAMPER,FUEL TANK

92075-1066

Out of stock

9

CAP-ASSY-TANK,FUEL

51048-1004

Out of stock

10

GASKET,FUEL TANK CAP

51059-006

Out of stock

11

TUBE-RUBBER 5X400

702A05400

Out of stock
← Carburetor 1/2 Clutch →
