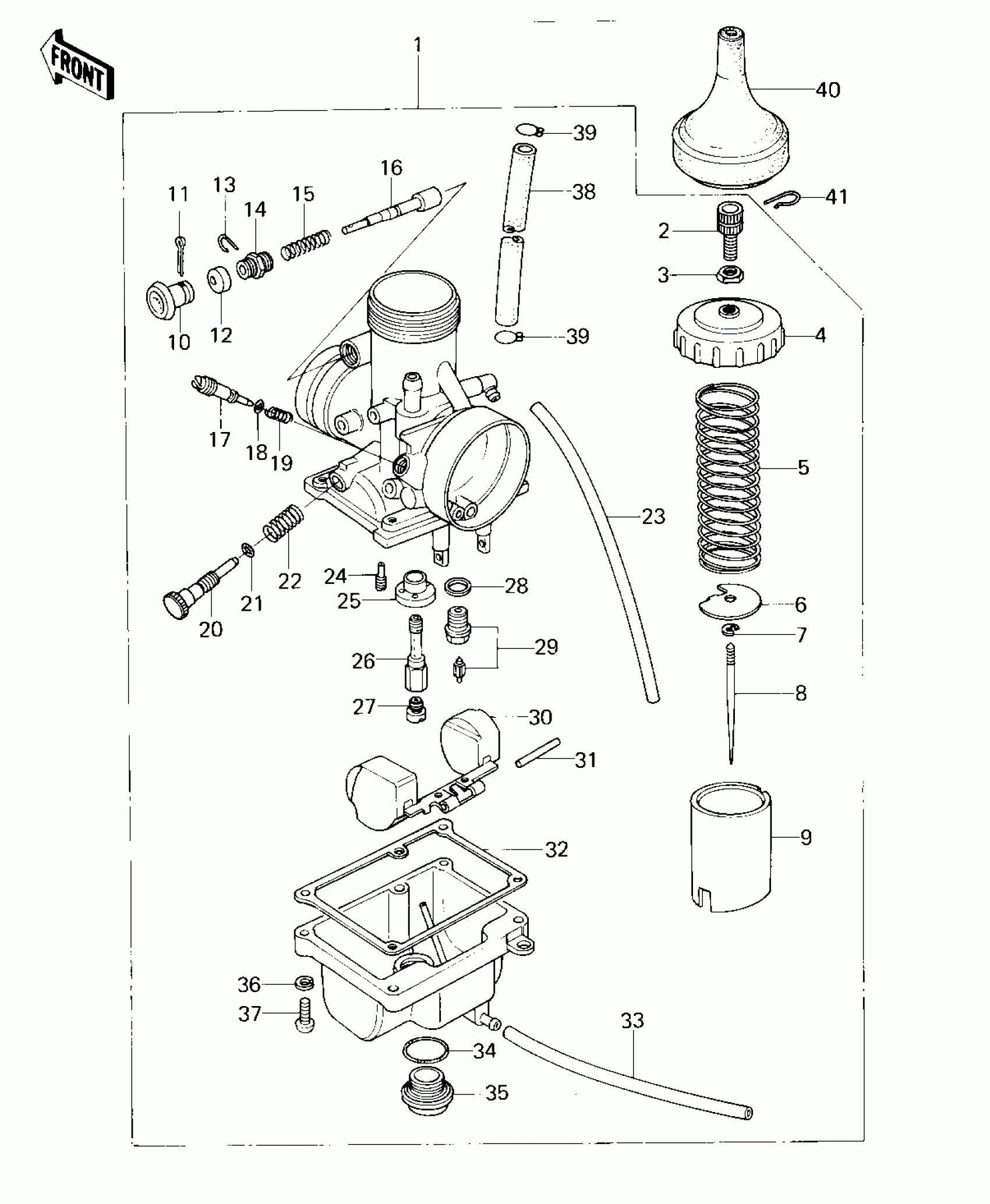

Kawasaki KDX80 CARBURETOR 1/2 Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-1207

Unavailable

2

ADJUSTER-CABLE

16002-011

$11.06

3

NUT,ADJUST LOCK

16003-006

$5.84

4

CAP-CHAMBER

16004-025

$33.92

5

SPRING,THROTTLE VALVE

16006-023

$14.22

6

SEAT-SPRING,THROTTLE VALVE

16007-023

$9.85

7

CLAMP,E-TYPE

16008-010

$8.95

8

JET NEEDLE,5EJ25

16009-1057

Unavailable

9

VALVE,THROTTLE,C.A1.5

16025-1028

$140.51

10

KNOB,STARTER PLUNGER

92077-1009

$8.39

11

PIN-COTTER,1.6X15

550D1615

$2.08

12

BOOT,STARTER PLUNGER

16036-012

$11.00

13

CLAMP

92037-1077

Unavailable

14

CAP-STARTER PLUNGER

16012-021

$15.07

15

SPRING,STARTER PLUNGR

16013-011

Unavailable

16

PLUNGER ASSY,STARTER

16016-1004

$59.69

17

SCREW,PILOT AIR

16014-1013

Unavailable

18

GASKET,"O"RING

16038-022

$5.85

19

SPRING,STOP SCREW

92081-1153

$4.39

20

SCREW,THROTTLE ADJST

16021-1012

Unavailable

21

RING-O

92055-044

$8.24

22

SPRING,THROTTLE ADJUST

92081-1152

$5.37

23

TUBE,3X5X300

92059-1755

$8.97

24

JET-PILOT,#30

92064-1030

$18.64

25

HOLDER,JET NEEDLE

16065-1020

$17.34

26

NEEDLE JET,0-4

16017-1054

$32.51

27

JET-MAIN NO 132.5R

92063-103

Unavailable

27

JET-MAIN,#A127.5

92063-1100

$13.73

27

MAIN JET NO 130R

92063-057

$13.73

27

MAIN JET NO 135R

92063-104

Unavailable

27

MAIN JET,#A137.5

92063-1087

Unavailable

28

WASHER FLOAT VLV SEAT

16029-004

$3.10

29

VALVE-FLOAT,#2.6

16030-1004

Unavailable

30

FLOAT

16031-1005

$54.64

31

PIN,FLOAT

16032-003

$5.95

32

GASKET,FLOAT CHAMBER

11009-1147

$9.85

33

TUBE,3X5X300

92059-1755

$8.97

34

RING-O,MAIN JET COVER

92055-1061

$8.37

35

COVER-MAIN JET

16049-1001

$25.31

36

WASHER SPRING 4MM

461F0400

Unavailable

37

SCREW PAN HEAD 4X16

220B0416

Unavailable

38

TUBE,5.3X10.5X155

92059-1080

$16.46

39

CLAMP,TUBE

92037-072

$5.74

40

BOOT,CARBURETOR

49006-1024

Unavailable

41

RING-SNAP

92036-018

$3.10
