1981 Kawasaki KDX80 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1981 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

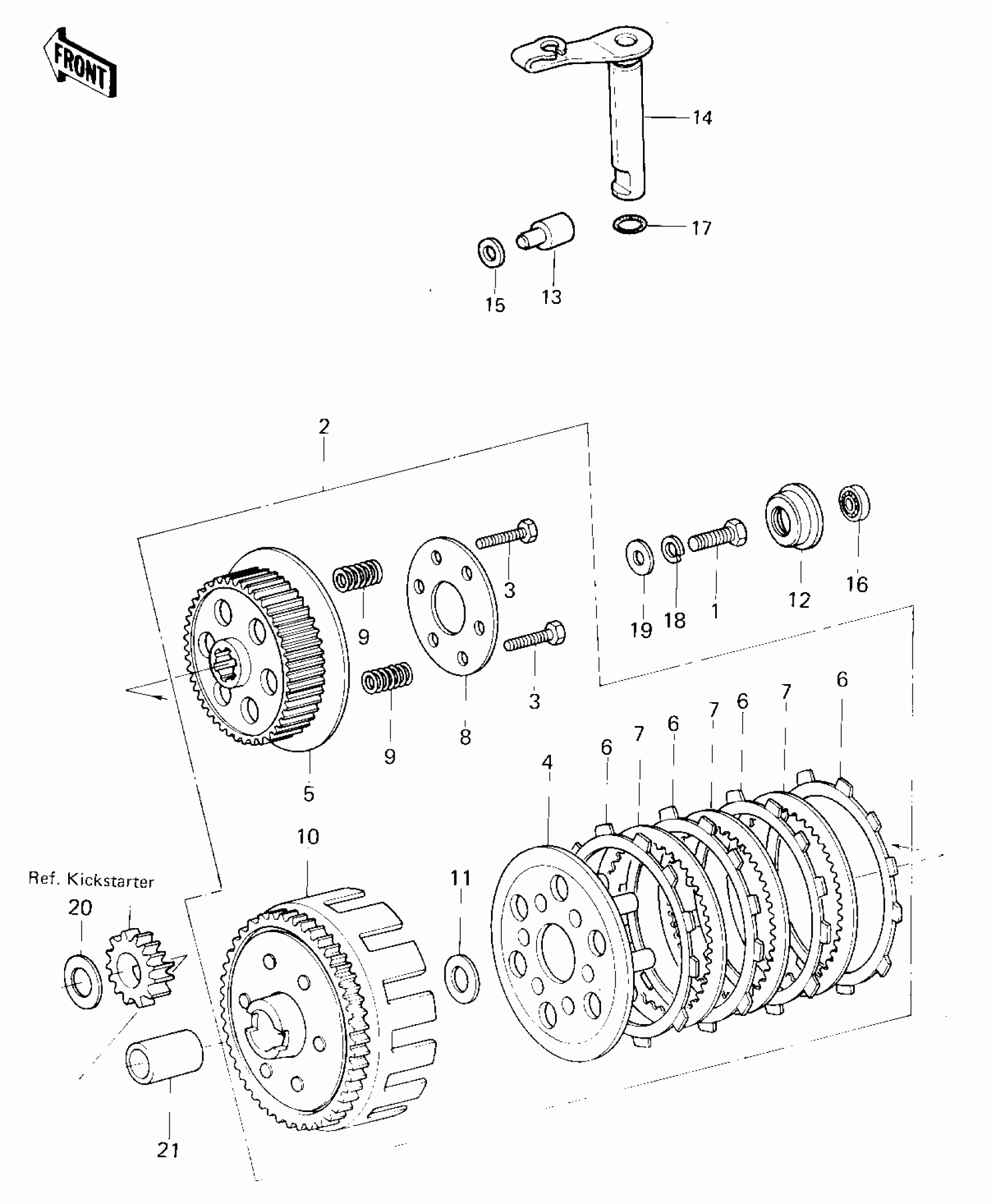

1981 Kawasaki KDX80 Clutch Diagram

#

Description
Price
Status
Order Qty

1

BOLT,8X20

115G0820

Out of stock

2

CLUTCH-ASSY

13081-1028

Out of stock

3

BOLT

110G0520

Out of stock

4

WHEEL-CLUTCH

13086-1002

$45.84

In stock

5

HUB-CLUTCH

13087-1113

Out of stock

6

PLATE-FRICTION

13088-1010

$10.86

In stock

7

PLATE-CLUTCH,STEEL

13089-1009

$11.12

In stock

8

$17.20

In stock

9

SPRING,CLUTCH

92081-1175

$4.88

In stock

10

HOUSING,CLUTCH

13095-1018

Out of stock

11

SPACER,17X30X2

92026-1034

$1.56

In stock

12

HOLDER,CLUTCH PUSHER

13091-1038

Out of stock

13

PUSHER,CLUTCH

13114-1004

Out of stock

14

LEVER,CLUTCH RELEASE

13236-1019

Out of stock

15

$1.19

In stock

16

BEARING-BALL

92045-1211

$9.41

In stock

17

RING-O,8.8X1.9

92055-099

$3.72

In stock

18

WASHER SPRING 8MM

461F0800

Out of stock

19

WASHER,8.5X20X1.6

92022-1561

$3.43

In stock

20

WASHER,17.3X28X1

92022-255

Out of stock

21

BUSHING,CLUTCH

92028-1057

$17.46

In stock
