1981 Kawasaki KDX80 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1981 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

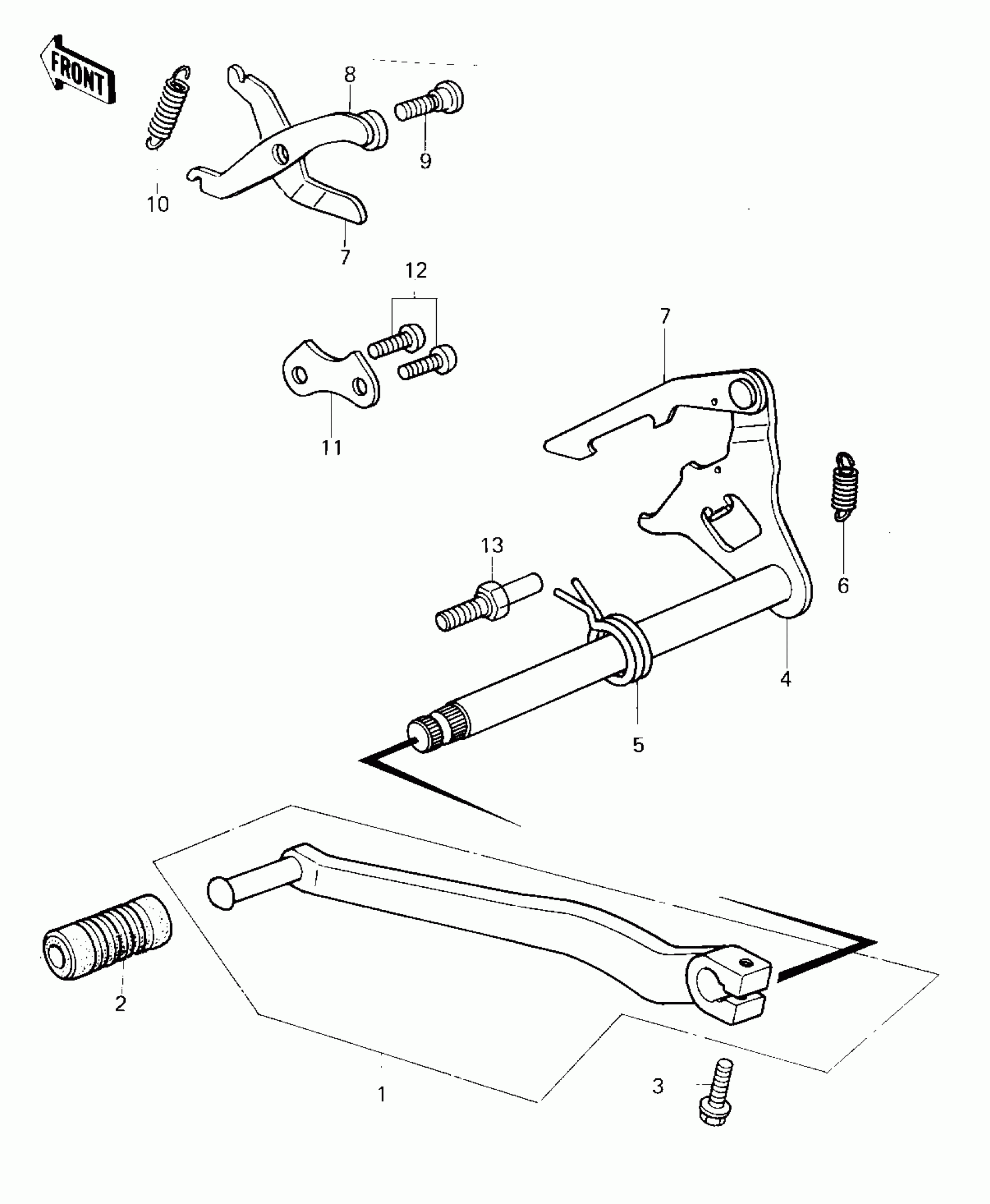

1981 Kawasaki KDX80 Gear Change Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PEDAL ASSY,GEAR CHANG

13156-1018

Out of stock

2

DAMPER,CHANGE PEDAL

92160-1108

Out of stock

3

BOLT,FLANGED,6X22

92001-1352

Out of stock

4

LEVER ASSY,GEAR CHANG

13161-1010

Out of stock

5

SPRING,TENSION

92081-1129

Out of stock

6

SPRING,NEUTRAL POSITION

92081-156

Out of stock

7

LEVER,GEAR SET

13168-1038

Out of stock

8

LEVER,NEUTRAL

13236-1009

Out of stock

9

SCREW,6MM

92011-023

Out of stock

10

SPRING,CHANGE LEVER

92081-1109

Out of stock

11

PLATE,CHANGE DRUM

13169-1132

Out of stock

12

SCREW-PAN-CROS,6X14

220B0614

Out of stock

13

BOLT,RETURN SPRING

92001-1401

Out of stock
