2005 Kawasaki KDX50 Transmission Diagram

← All diagrams

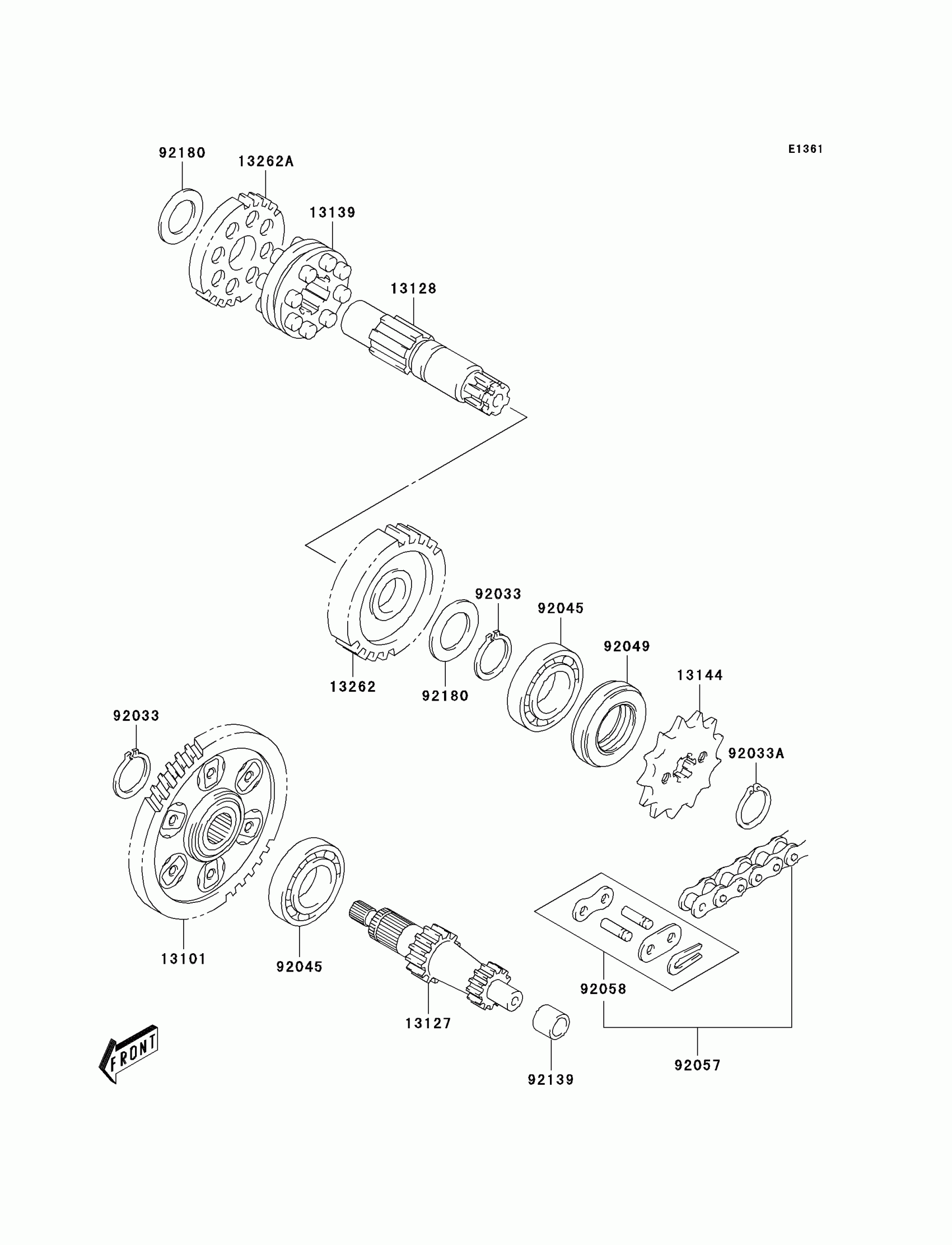

Find the part on the Transmission diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

1

$270.79

In stock

13127

1

$104.47

In stock

13128

1

$106.23

In stock

13139

SHIFTER

13139-S003

1

$55.16

In stock

13144

SPROCKET-OUTPUT,13T

13144-S007

1

$15.47

In stock

13262

GEAR,OUTPUT LOW,40T

13262-S022

1
Out of stock

13262A

GEAR,OUTPUT 2ND,29T

13262-S023

1
Out of stock

92033

RING-SNAP,DRIVEN GEAR

92033-S026

1
Out of stock

92033A

RING-SNAP,ENGINE SPROCKET

92033-S027

1
Out of stock

92045

1

$17.90

In stock

92049

SEAL-OIL,CRANKSHAFT OIL,LH

92049-S028

1
Out of stock

92057

CHAIN,DRIVE 78LJ

92057-S008

1

$20.12

In stock

92058

JOINT-CHAIN

92058-S002

1

$5.90

In stock

92139

1

$4.97

In stock

92180

SHIM,17X30X1.0

92180-S014

1
Out of stock
