2005 Kawasaki KDX50 Brake Pedal Diagram

← All diagrams

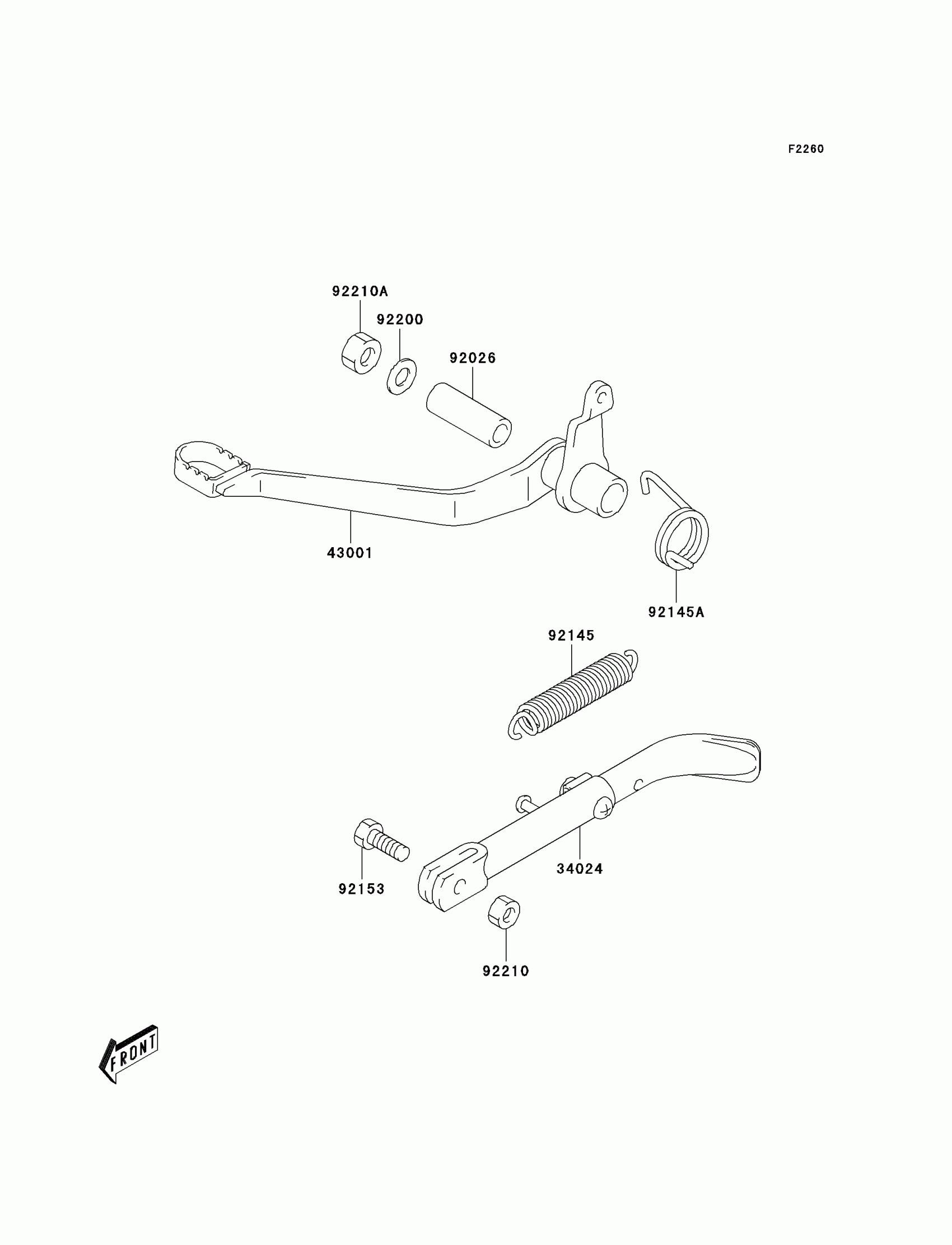

Find the part on the Brake Pedal diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34024

STAND-SIDE,BLACK

34024-S005-503

1

$16.05

In stock

43001

LEVER-BRAKE

43001-S005

1
Out of stock

92026

SPACER,BRAKE PEDAL

92026-S109

1

$4.03

In stock

92145

SPRING

92145-S119

1

$2.90

In stock

92145A

1

$4.03

In stock

92153

BOLT,8X22

92153-S318

1

$3.76

In stock

92200

WASHER,10.5X22X1.6

92200-S173

1
Out of stock

92210

NUT

92210-S051

1
Out of stock

92210A

NUT,BRAKE PEDAL

92210-S117

1
Out of stock
