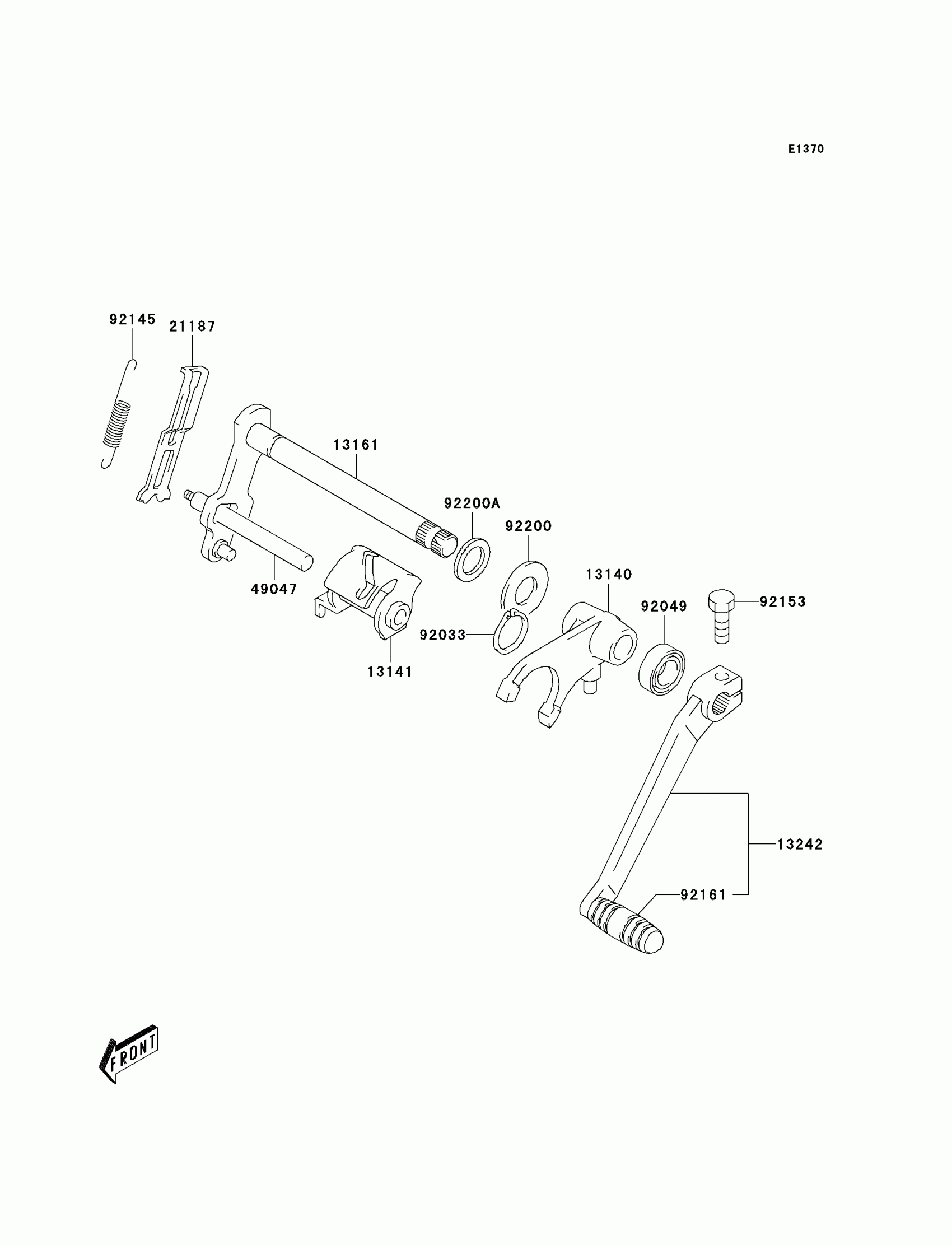

Find the part on the Gear Change Mechanism diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT

13140-S011

1
Out of stock

13141

DRUM-CHANGE

13141-S006

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-S005

1
Out of stock

13242

LEVER-ASSY-CHANGE

13242-S004

1
Out of stock

21187

ARM-ASSY,CAM STOPPER

21187-S007

1
Out of stock

49047

ROD-SHIFT

49047-S005

1
Out of stock

92033

RING-SNAP

92033-S023

1
Out of stock

92049

SEAL-OIL,12X22X9

92049-S020

1
Out of stock

92145

SPRING,GEAR SHIFT CAM

92145-S116

1
Out of stock

92153

BOLT

92153-S127

1
Out of stock

92161

DAMPER,PEDAL

92161-S093

1
Out of stock

92200

WASHER,GEAR SHIFT SHAFT

92200-S170

1
Out of stock

92200A

WASHER,GEAR SHIFT SHAFT

92200-S171

1
Out of stock
