2005 Kawasaki KDX50 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

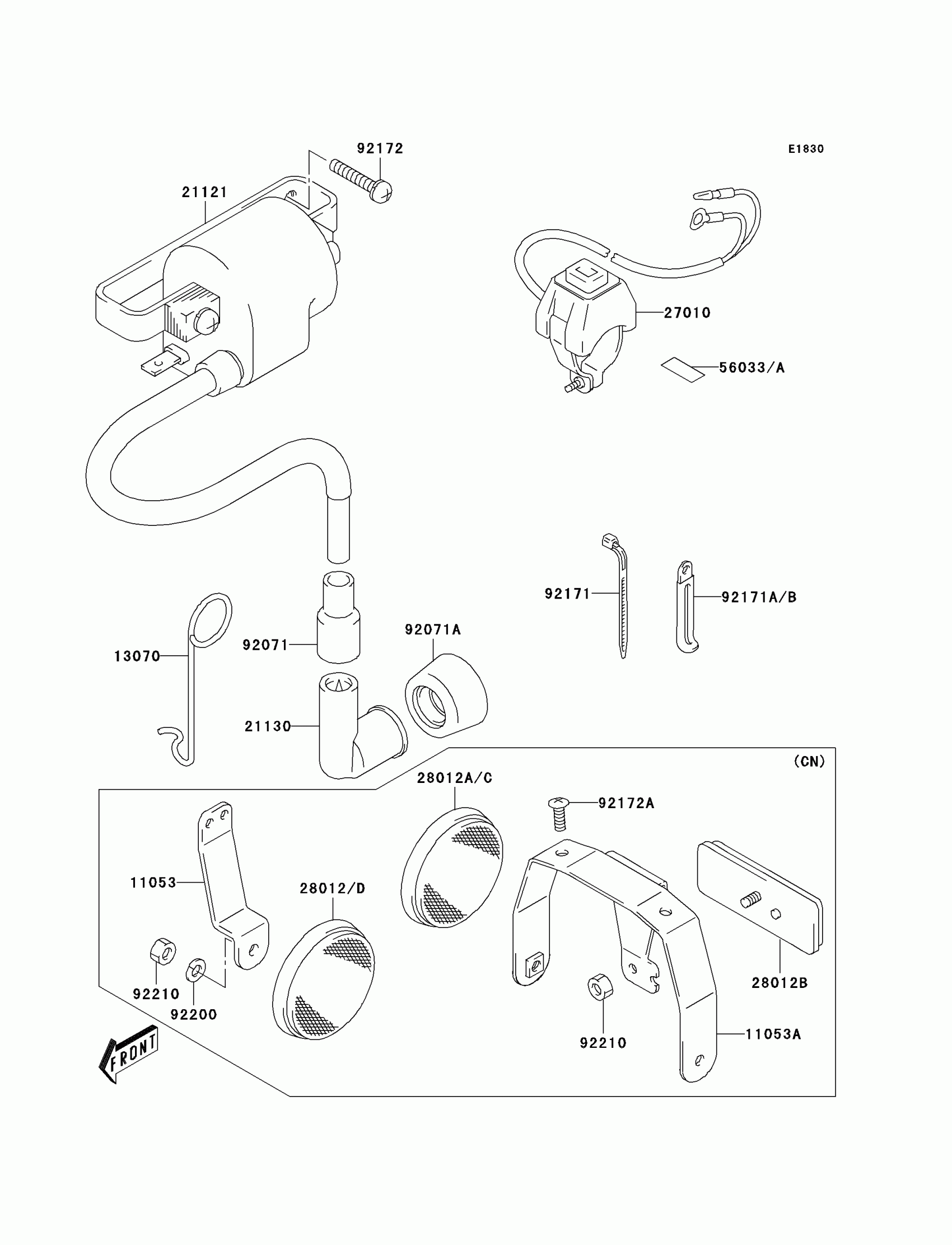

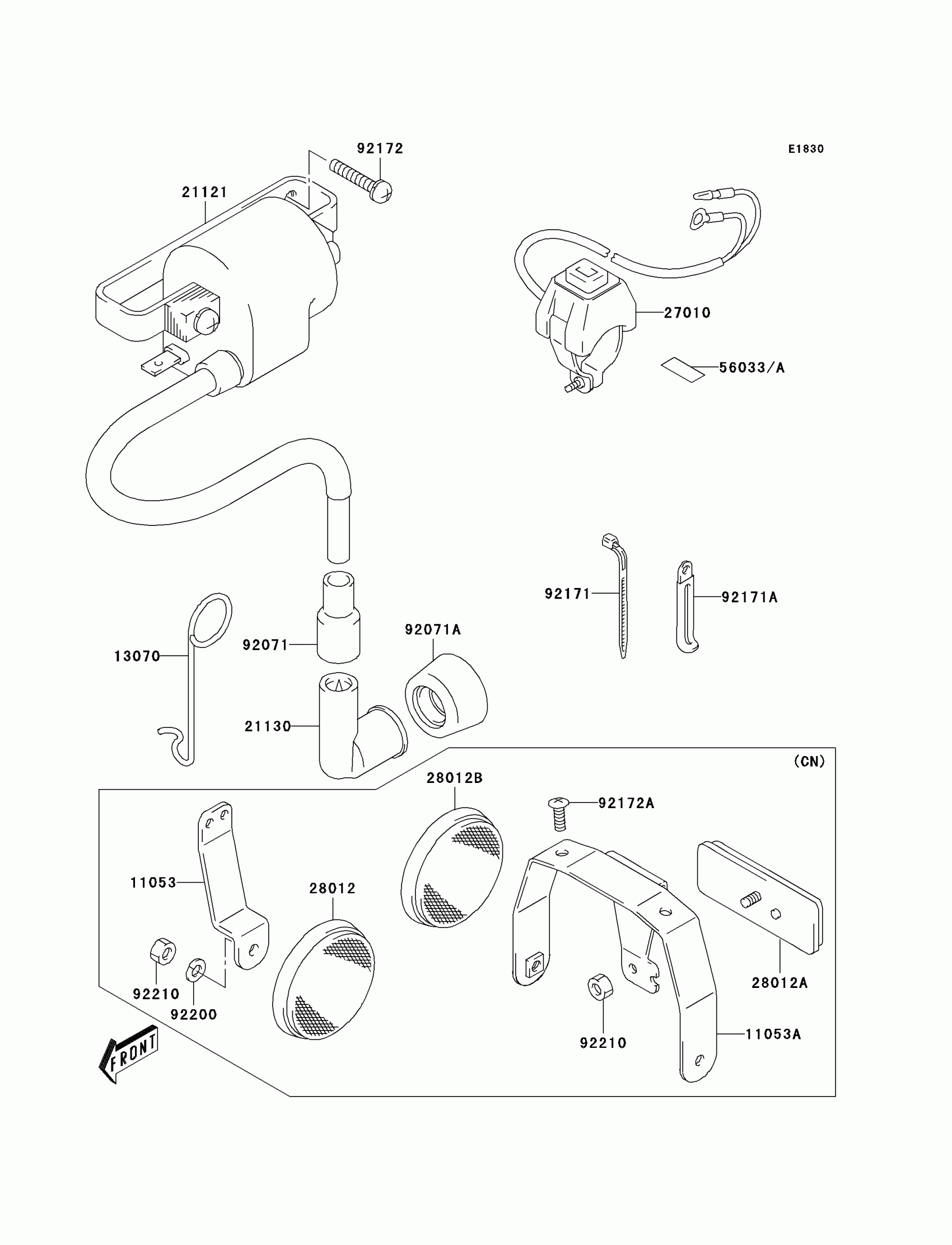

2005 Kawasaki KDX50 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

1

$2.68

In stock

21121

COIL-IGNITION

21121-S004

1

$174.11

In stock

21130

CAP-SPARK PLUG

21130-S007

1
Out of stock

27010

SWITCH,ENGINE STOP

27010-S027

1

$52.49

In stock

92071

GROMMET,HIGHTENSION

92071-S004

1

$4.81

In stock

92071A

GROMMET,SPARK PLUG

92071-S008

1
Out of stock

92171

CLAMP,L=165

92171-S016

1
Out of stock

92171B

CLAMP,L=45

92171-S132

1

$1.88

In stock

92172

SCREW,IGNITION COIL

92172-S187

1

$1.95

In stock

11053

BRACKET,RR

11053-S027

1
Out of stock

11053A

BRACKET,RR

11053-S028

1
Out of stock

28012

REFLECTOR-REFLEX,FR

28012-S001

1
Out of stock

28012B

REFLECTOR-REFLEX,RR

28012-S003

1

$19.81

In stock

28012C

REFLECTOR-REFLEX,REAR SIDE

28012-S004

1
Out of stock

56033

LABEL-MANUAL,ENGINE STOP

56033-S014

1
Out of stock

56033A

LABEL-MANUAL,ENGINE STOP

56033-S016

1
Out of stock

92172A

SCREW

92172-S193

1
Out of stock

92200

WASHER,BRAKE LEVER

92200-S168

1
Out of stock

92210

NUT

92210-S065

1
Out of stock
