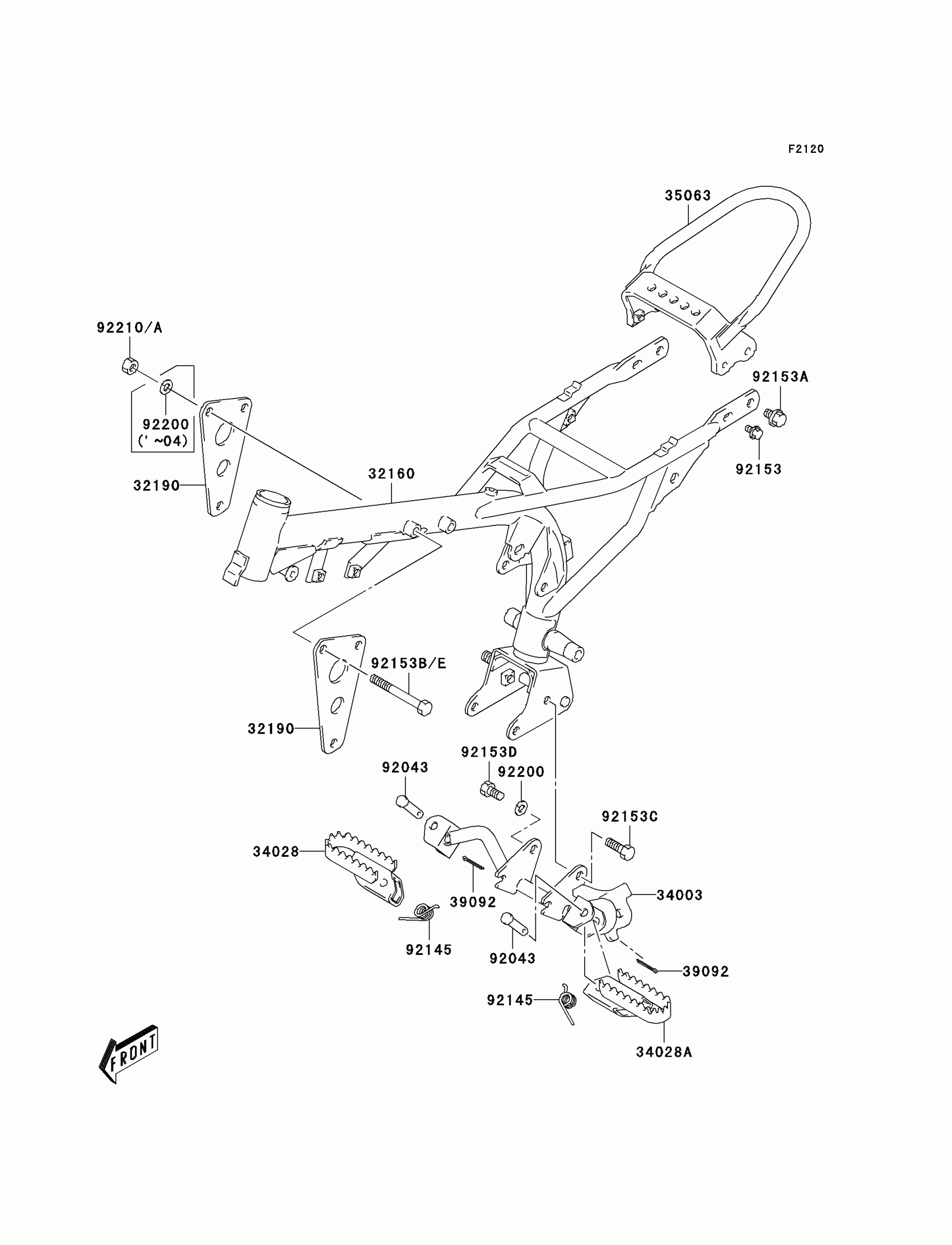

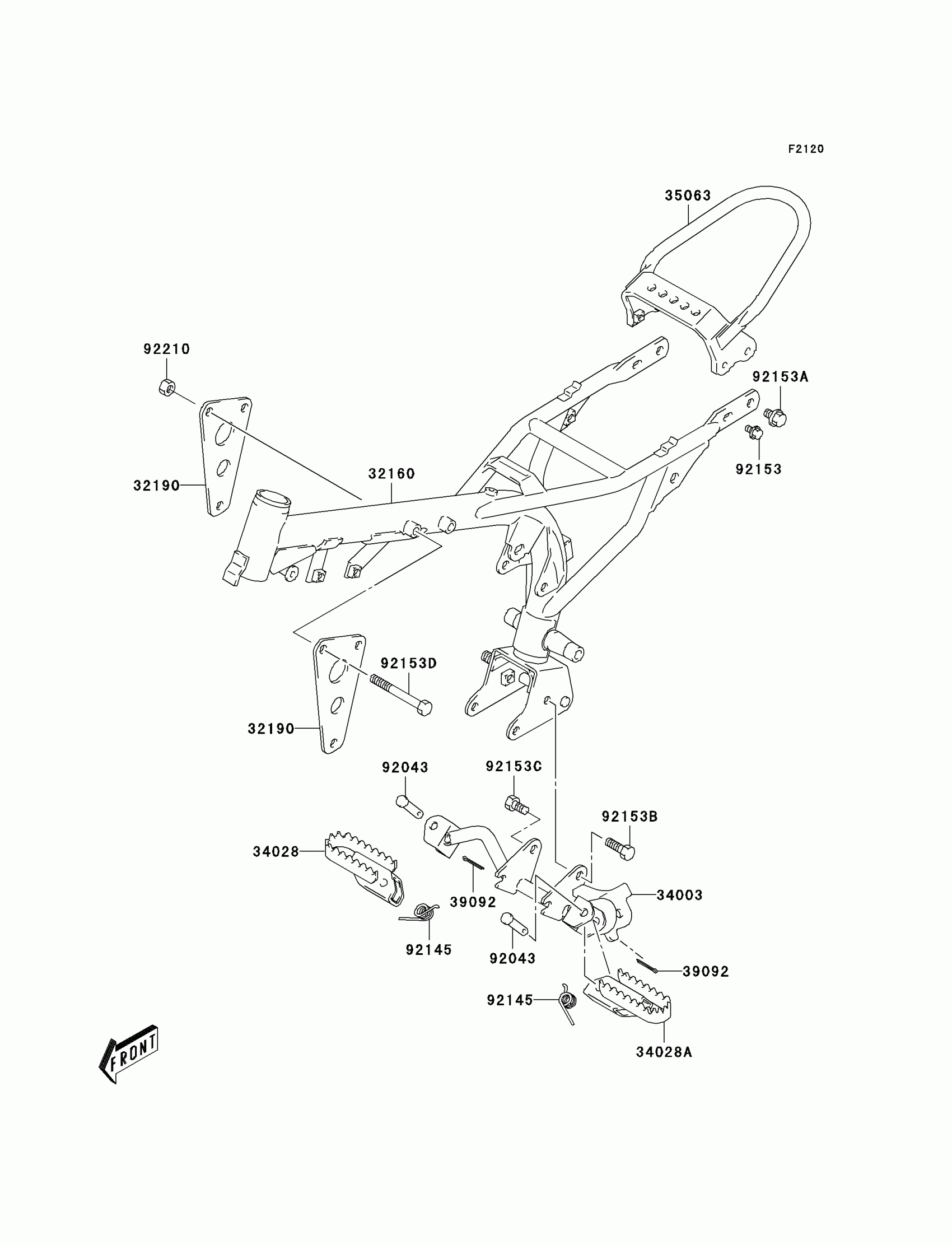

Find the part on the Frame diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,BLACK

32160-S012-503

1

$534.21

In stock

32190

BRACKET-ENGINE

32190-S007

1

$10.10

In stock

34003

HOLDER-STEP

34003-S004

1

$36.01

In stock

34028

STEP,RH,BLACK

34028-S005-503

1
Out of stock

34028A

STEP,LH,BLACK

34028-S006-503

1
Out of stock

35063

STAY,RR

35063-S001

1

$65.26

In stock

39092

PIN-HAIR,FR FOOTREST COTTER

39092-S004

1
Out of stock

92043

PIN

92043-S046

1

$2.00

In stock

92145

SPRING

92145-S118

1

$2.90

In stock

92153

BOLT

92153-S010

1

$1.64

In stock

92153A

BOLT

92153-S015

1

$1.98

In stock

92153C

BOLT

92153-S317

1

$2.00

In stock

92153D

BOLT

92153-S321

1

$1.64

In stock

92153E

BOLT

92153-S401

1

$3.22

In stock

92200

WASHER

92200-S167

1
Out of stock

92210A

NUT

92210-S094

1
Out of stock
