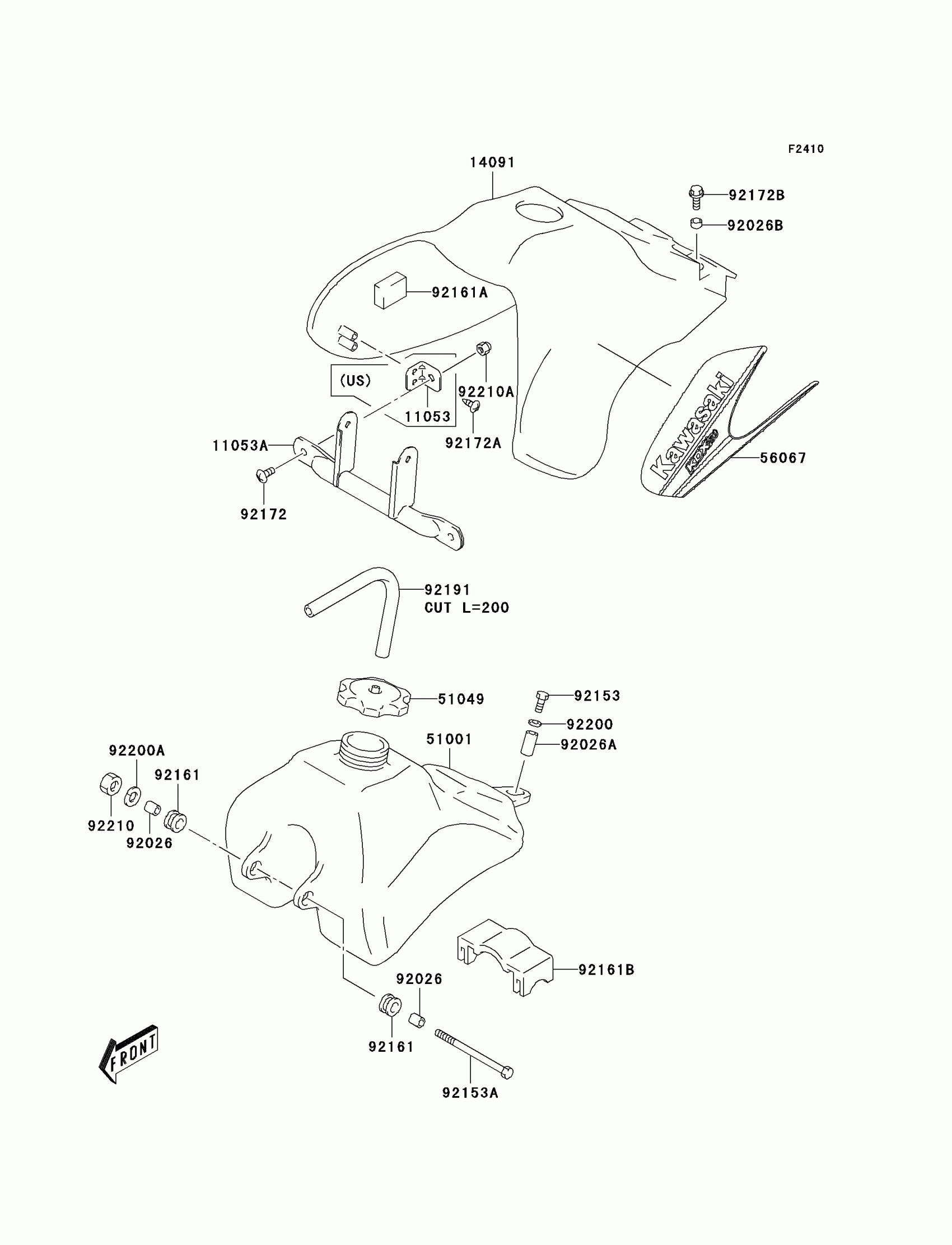

Find the part on the Fuel Tank diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053A

1

$41.19

In stock

14091A

COVER,FUEL TANK,L.GREEN

14091-S093-908

1

$77.27

In stock

51001

TANK-COMP-FUEL

51001-S009

1

$246.95

In stock

51049

CAP-TANK

51049-S005

1

$60.64

In stock

56066B

1

$242.72

In stock

92026

SPACER,FUEL TANK

92026-S058

1

$2.47

In stock

92026A

SPACER,FUEL TANK,RR

92026-S113

1

$4.07

In stock

92026B

SPACER,FUEL TANK COVER,RR

92026-S114

1
Out of stock

92153

BOLT

92153-S126

1
Out of stock

92153A

BOLT,FUEL TANK

92153-S319

1

$3.68

In stock

92161

DAMPER,FUEL TANK

92161-S067

1

$2.80

In stock

92161A

1

$6.02

In stock

92161B

DAMPER

92161-S112

1

$7.83

In stock

92172

SCREW

92172-S017

1
Out of stock

92172A

SCREW,FUEL TANK

92172-S188

1

$1.64

In stock

92172B

SCREW,FUEL TANK

92172-S189

1

$2.03

In stock

92191

TUBE,FUEL TANK BREATHER

92191-S028

1
Out of stock

92200

WASHER,6.5X18X1

92200-S004

1
Out of stock

92200A

WASHER

92200-S102

1
Out of stock

92210

NUT

92210-S001

1
Out of stock

92210A

NUT

92210-S039

1
Out of stock

11053

1

$8.64

In stock
