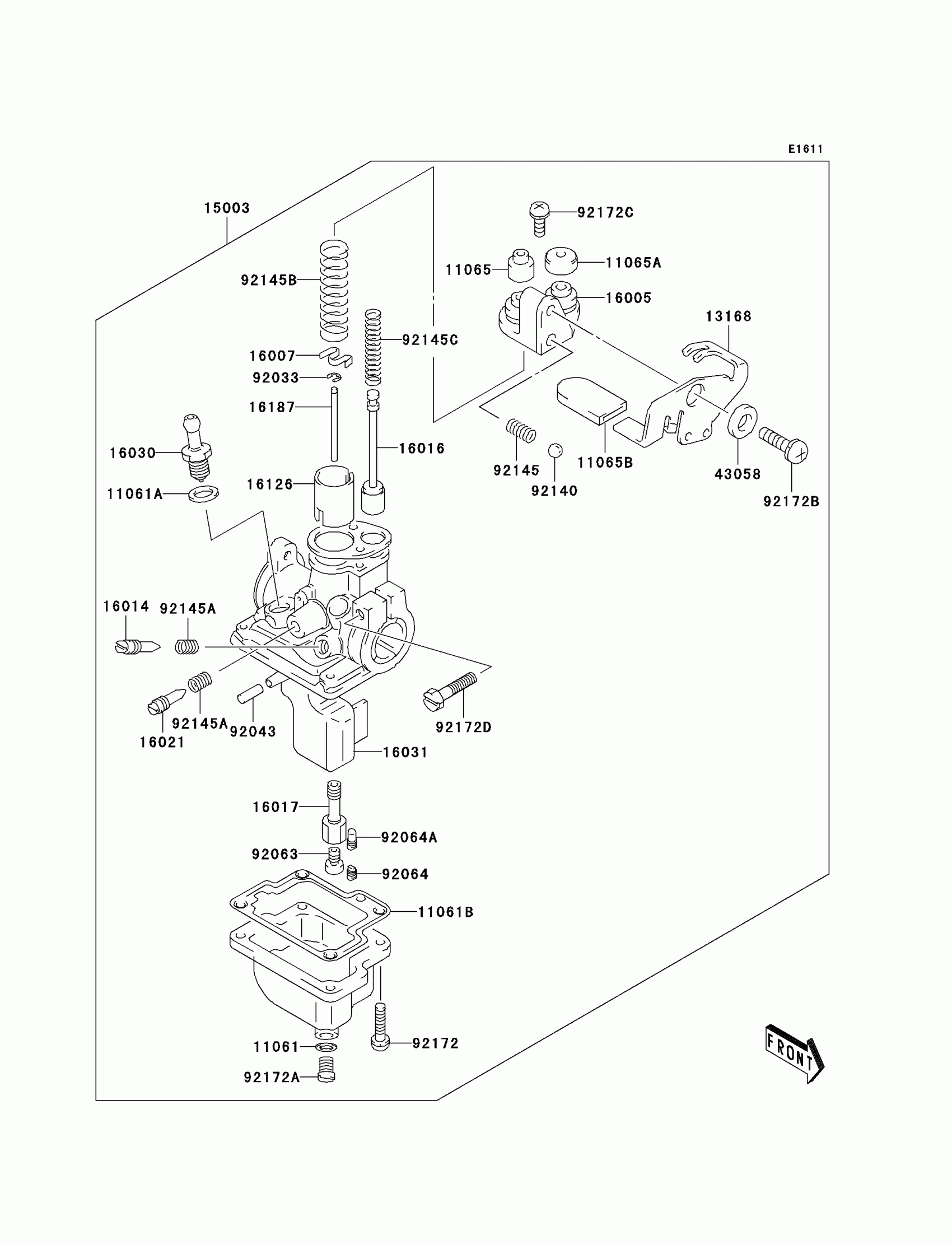

Find the part on the Carburetor diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-S048

1

$1.81

In stock

11061A

GASKET

11061-S049

1

$2.76

In stock

11061B

1

$5.92

In stock

11065

CAP

11065-S020

1

$2.73

In stock

11065A

CAP,STARTER

11065-S021

1

$3.76

In stock

11065B

CAP,LEVER

11065-S043

1

$5.00

In stock

13168

LEVER,STARTER

13168-S006

1

$15.24

In stock

15003

CARBURETOR-ASSY

15003-S009

1

$140.76

In stock

16005

TOP-CHAMBER

16005-S009

1

$26.71

In stock

16007

SEAT-SPRING

16007-S007

1

$8.00

In stock

16014

SCREW-PILOT AIR

16014-S004

1
Out of stock

16016

PLUNGER

16016-S004

1

$13.37

In stock

16017

JET-NEEDLE,E-6

16017-S006

1

$17.97

In stock

16021

SCREW-THROTTLE STOP

16021-S003

1

$6.27

In stock

16030

VALVE-FLOAT

16030-S007

1

$23.86

In stock

16031

FLOAT

16031-S004

1

$23.86

In stock

16126

VALVE,CA3.0

16126-S011

1

$27.41

In stock

16187

NEEDLE-JET,3D23-3

16187-S008

1

$16.49

In stock

43058

RING

43058-S004

1

$5.36

In stock

92033

RING-SNAP,NEEDLE

92033-S025

1
Out of stock

92043

PIN

92043-S027

1
Out of stock

92063

JET-MAIN,#56.3

92063-S009

1

$8.47

In stock

92064

JET-PILOT,#0.38

92064-S004

1

$8.47

In stock

92064A

JET-PILOT,#15

92064-S005

1

$15.66

In stock

92140

BALL

92140-S002

1

$2.00

In stock

92145

1

$4.10

In stock

92145A

SPRING

92145-S060

1

$4.97

In stock

92145B

1

$5.10

In stock

92145C

SPRING

92145-S113

1

$4.42

In stock

92172

SCREW,OIL PUMP

92172-S121

1
Out of stock

92172A

SCREW

92172-S124

1

$5.44

In stock

92172B

SCREW

92172-S126

1

$3.76

In stock

92172C

SCREW

92172-S157

1

$1.64

In stock

92172D

SCREW

92172-S246

1

$3.68

In stock
