2005 Kawasaki KDX50 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

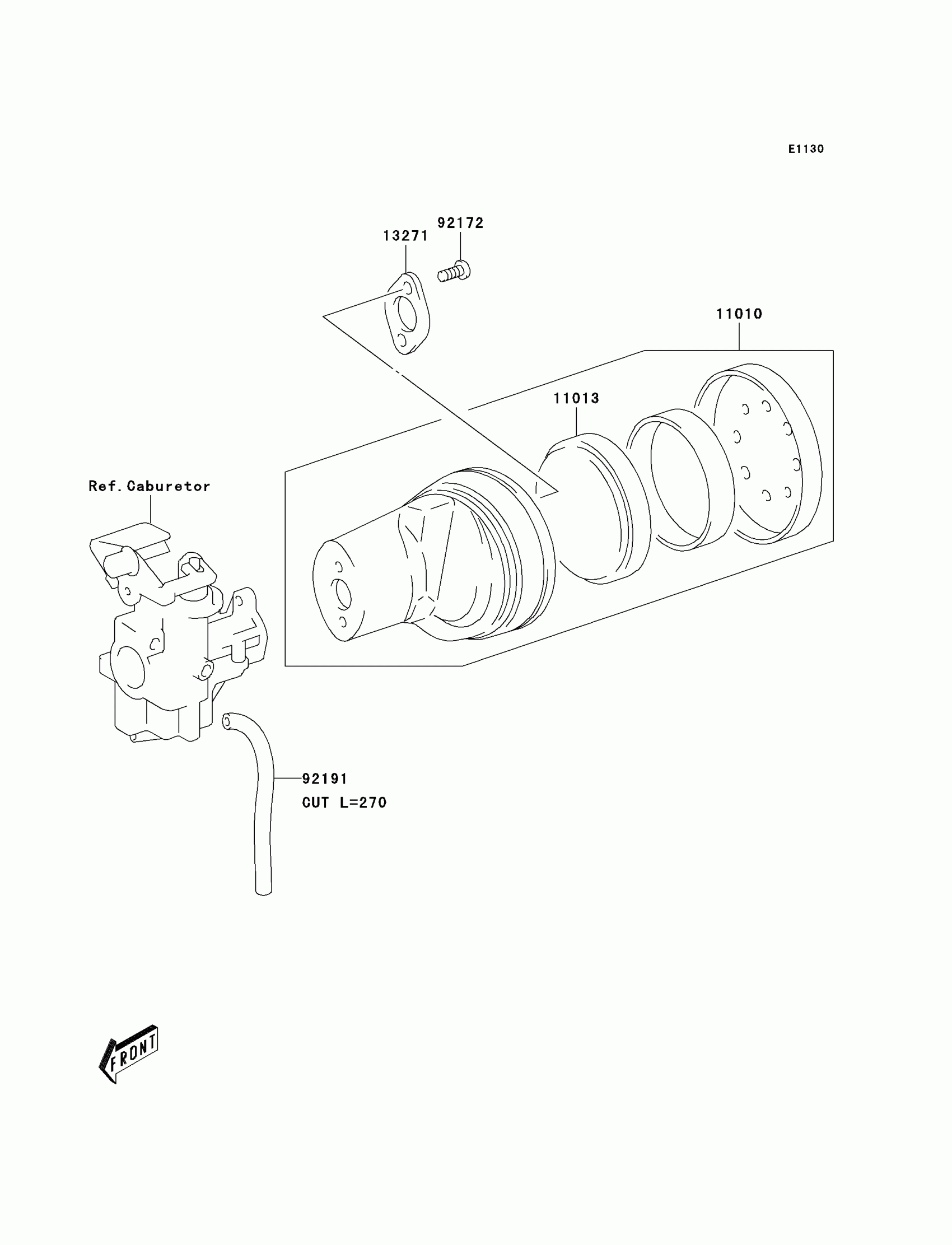

2005 Kawasaki KDX50 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-S004

1

$27.92

In stock

11013

ELEMENT-AIR FILTER

11013-S005

1

$4.08

In stock

13271

PLATE,AIR CLEANER

13271-S026

1

$4.10

In stock

92172

SCREW,AIR CLEANER

92172-S127

1

$1.64

In stock

92191

TUBE

92191-S041

1
Out of stock
