2005 Kawasaki KDX50 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

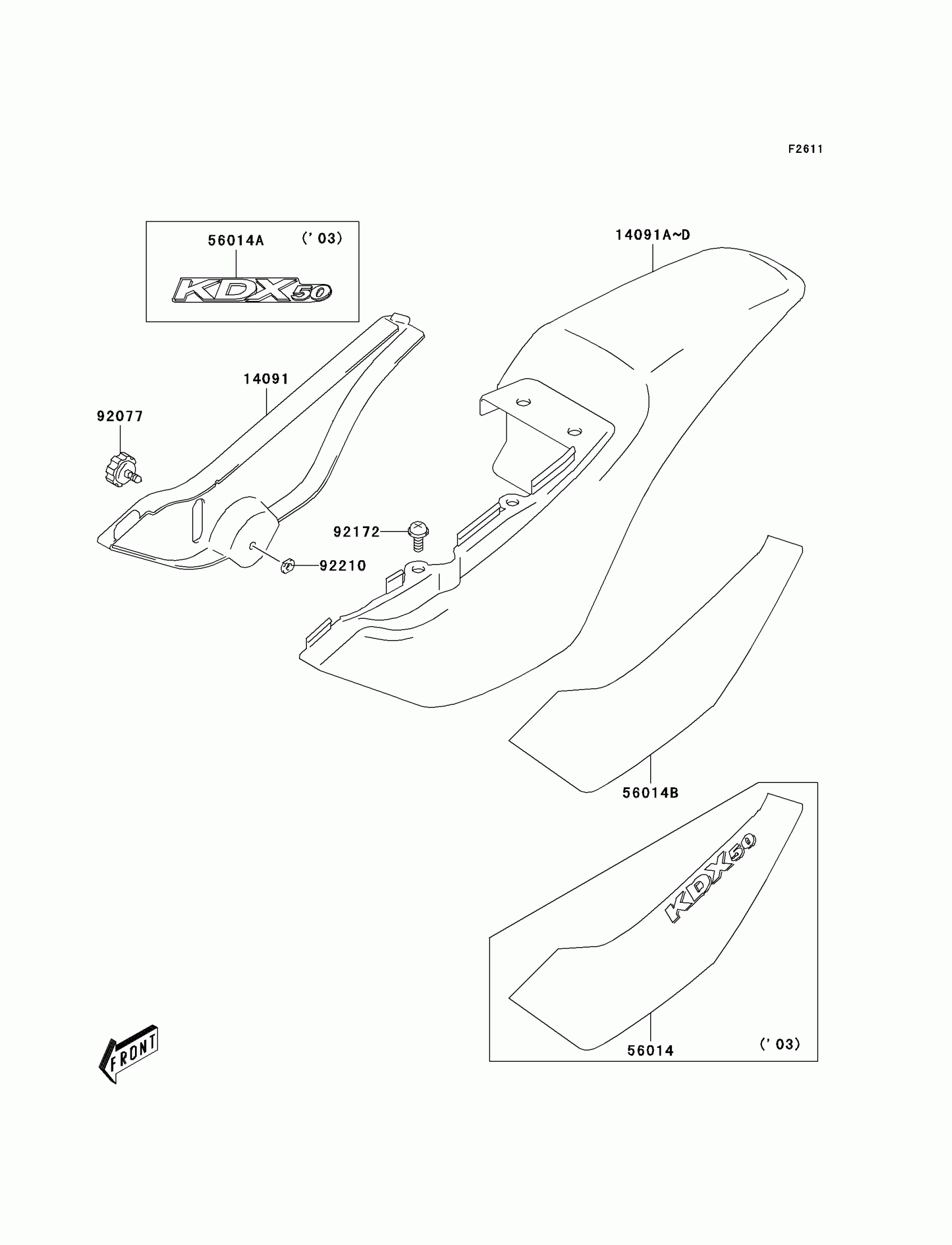

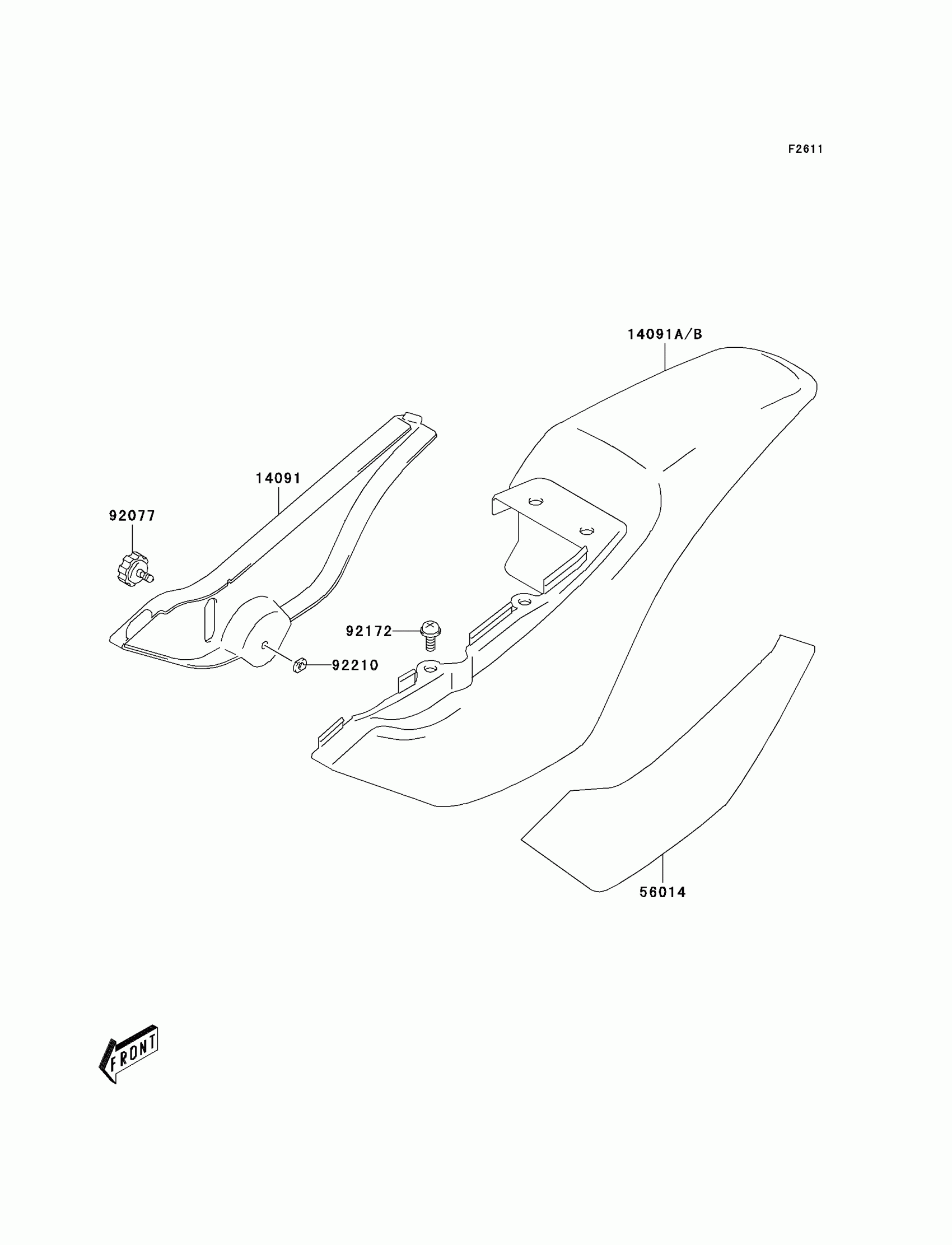

2005 Kawasaki KDX50 Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,FRAME,RH,S.WHITE

14091-S094-533

1

$52.14

In stock

56014B

EMBLEM,COVER,LH,S.WHITE

56014-S026-533

1

$65.43

In stock

92077

KNOB

92077-S005

1

$10.64

In stock

92172

SCREW,FUEL TANK

92172-S189

1

$2.03

In stock

92210

NUT,STOPPER, KNOB

92210-S118

1
Out of stock

14091B

COVER,FRAME,LH,L.GREEN

14091-S095-908

1

$79.89

In stock

14091D

COVER,FRAME,LH,L.GREEN

14091-S098-908

1
Out of stock
