1994 Kawasaki KDX250 Gear Change Drum/shift Forks Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Forks diagram for your 1994 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

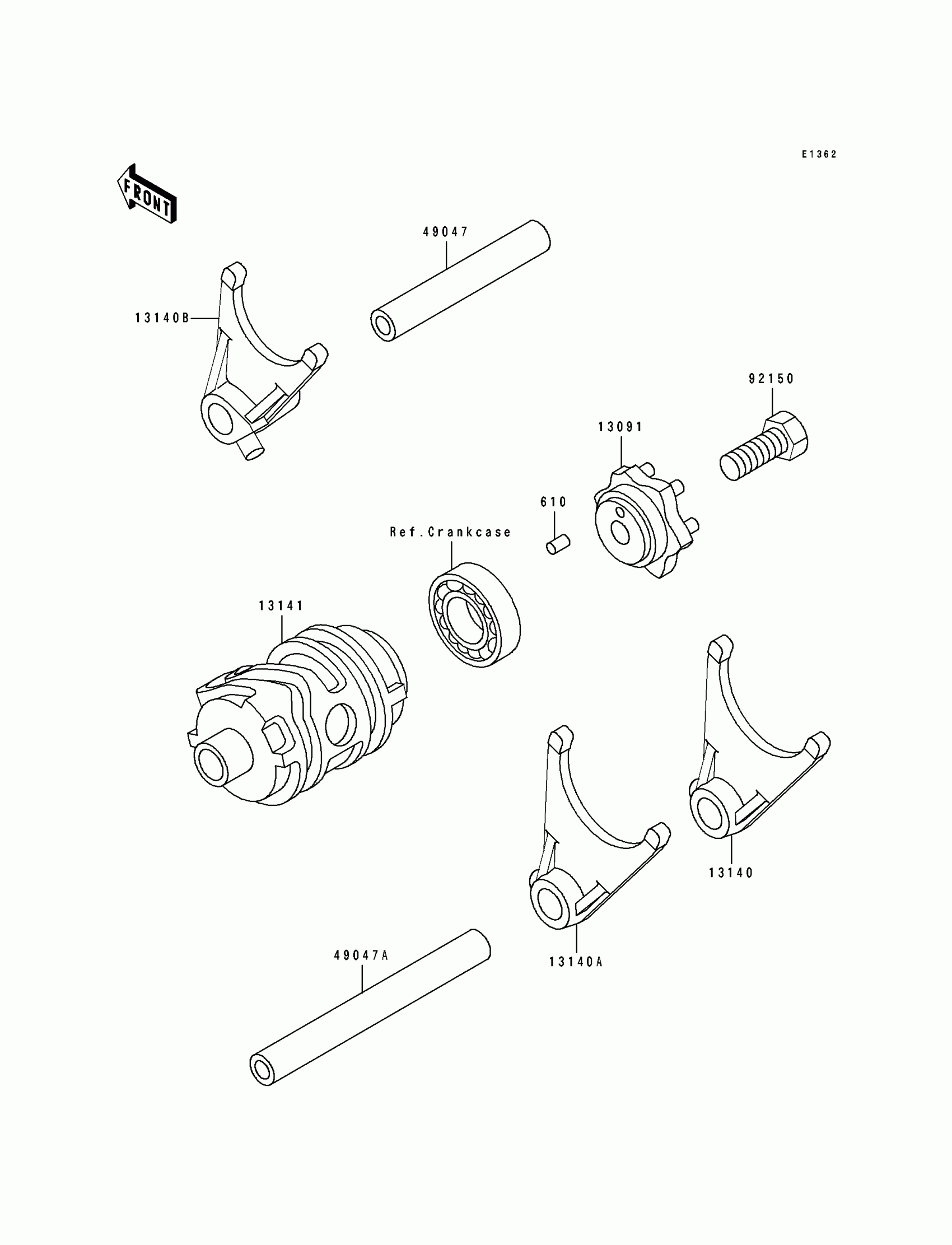

1994 Kawasaki KDX250 Gear Change Drum/shift Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM

13091-1364

1

$123.69

In stock

13140

FORK-SHIFT,LOW

13140-1071

1
Out of stock

13140A

FORK-SHIFT,2ND&3RD

13140-1072

1
Out of stock

13140B

FORK-SHIFT,4TH&TOP

13140-1073

1
Out of stock

13141

DRUM-CHANGE

13141-1174

1
Out of stock

49047

ROD-SHIFT,5.9X10X64.5

49047-1063

1
Out of stock

49047A

ROD-SHIFT,5.9X10X90

49047-1080

1
Out of stock

92150

BOLT,8X25

92150-1534

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock
