1980 Kawasaki KDX250 Transmission Diagram

← All diagrams

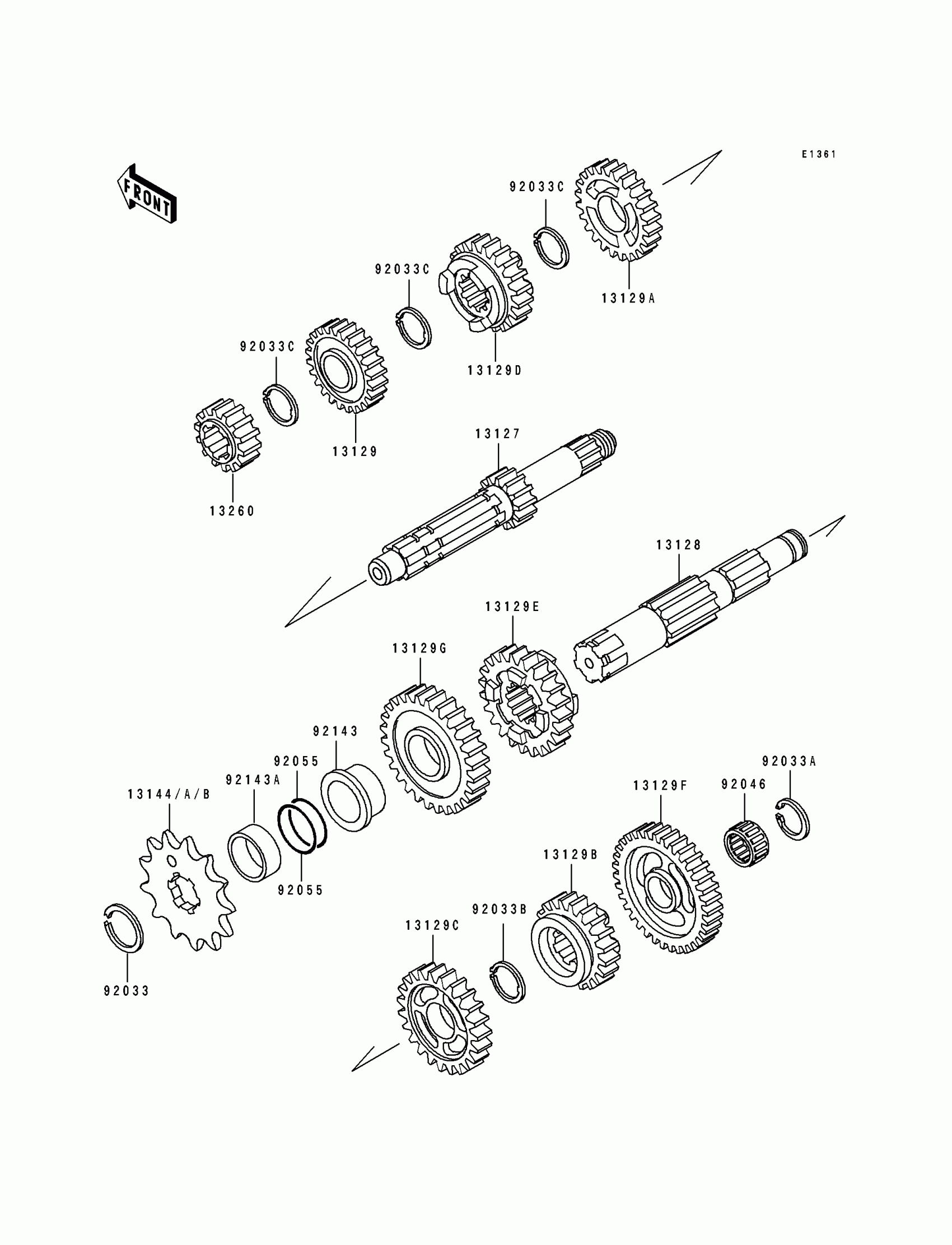

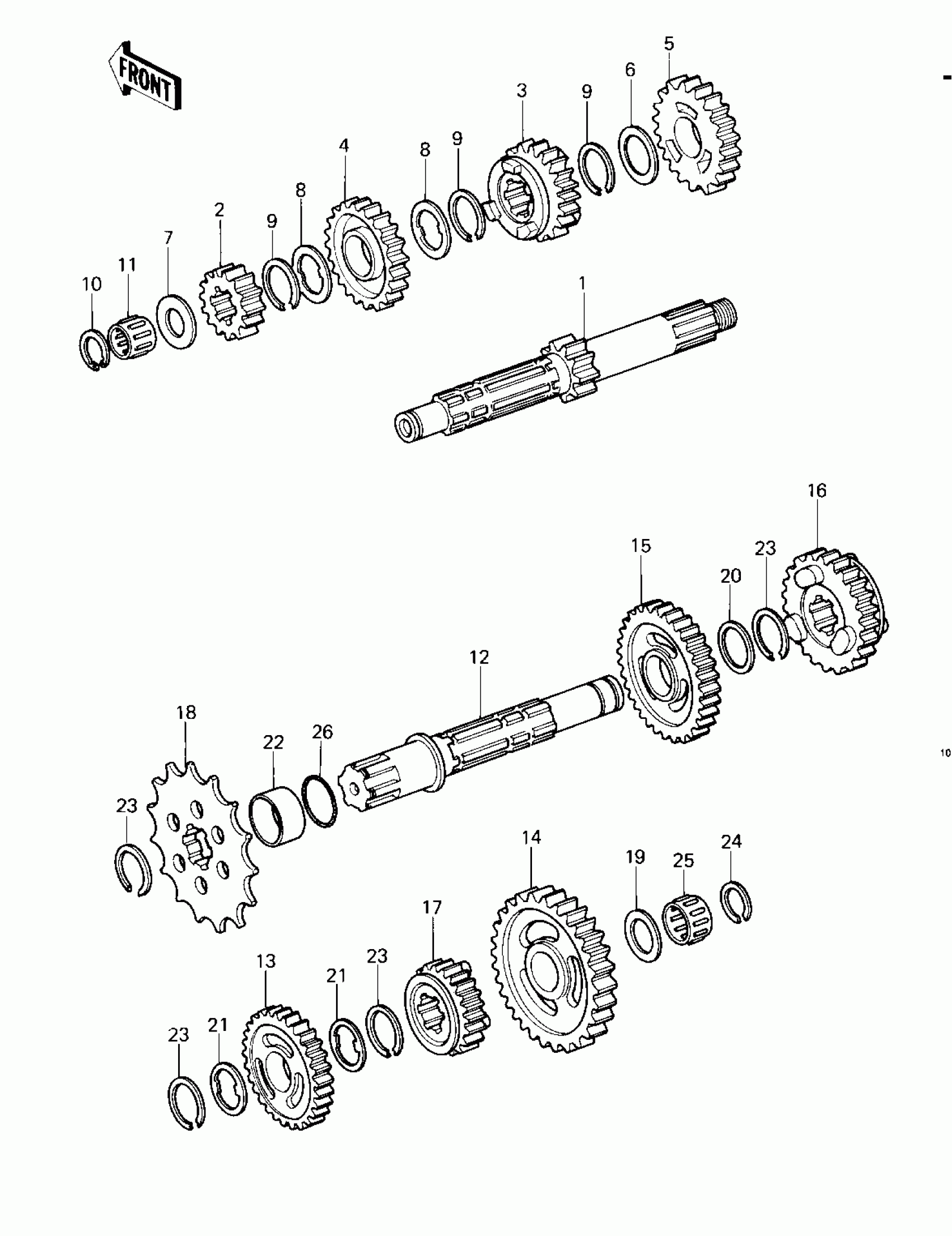

Find the part on the Transmission diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KDX250 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,DRIVE

13127-1027

1
Out of stock

2

2ND GEAR,DRV SHFT,16T

13129-1191

1
Out of stock

3

GEAR,INPUT 3RD,18T

13129-1956

1
Out of stock

4

4TH GEAR,DRV SHFT,27T

13129-1207

1
Out of stock

5

TOP GEAR,DRV SHFT,26T

13129-1208

1
Out of stock

6

WASHER,22.3X27X0.5

92022-198

1
Out of stock

7

WASHER,PLAIN

92022-281

1
Out of stock

8

WASHER,TOOTHED,22.5X27X0.5

92024-039

1
Out of stock

9

1

$3.94

In stock

10

RING-SNAP

92033-032

1

$3.94

In stock

11

BEARING-NEEDLE

92046-1184

1
Out of stock

12

SHAFT,OUTPUT

13128-1025

1
Out of stock

13

3RD GEAR,OUTPUT SHAFT

13129-1213

1
Out of stock

14

LOW GEAR,OUTPUT,32T

13129-1168

1
Out of stock

15

2ND GEAR,OUTPUT,31T

13129-1169

1
Out of stock

16

4TH GEAR,OUTPUT,28T

13129-1170

1
Out of stock

17

TOP GEAR,OUTPUT,21T

13129-1171

1
Out of stock

18

ENGINE SPROCKET,14T

13144-1006

1
Out of stock

19

1

$7.04

In stock

20

WASHER,25.3X30X0.5

92022-159

1

$8.37

In stock

21

WASHER,TOOTHED,22.5X31X0.5

92024-038

1
Out of stock

22

COLLAR-ENG SPROKET

92027-163

1
Out of stock

23

RING-SNAP,24MM

92033-026

1

$6.98

In stock

24

RING-SNAP,18MM

92033-029

1

$7.79

In stock

25

BEARING-NEEDLE,KT202614

92046-1170

1
Out of stock

26

RING-O

92055-035

1

$3.97

In stock
