1980 Kawasaki KDX250 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

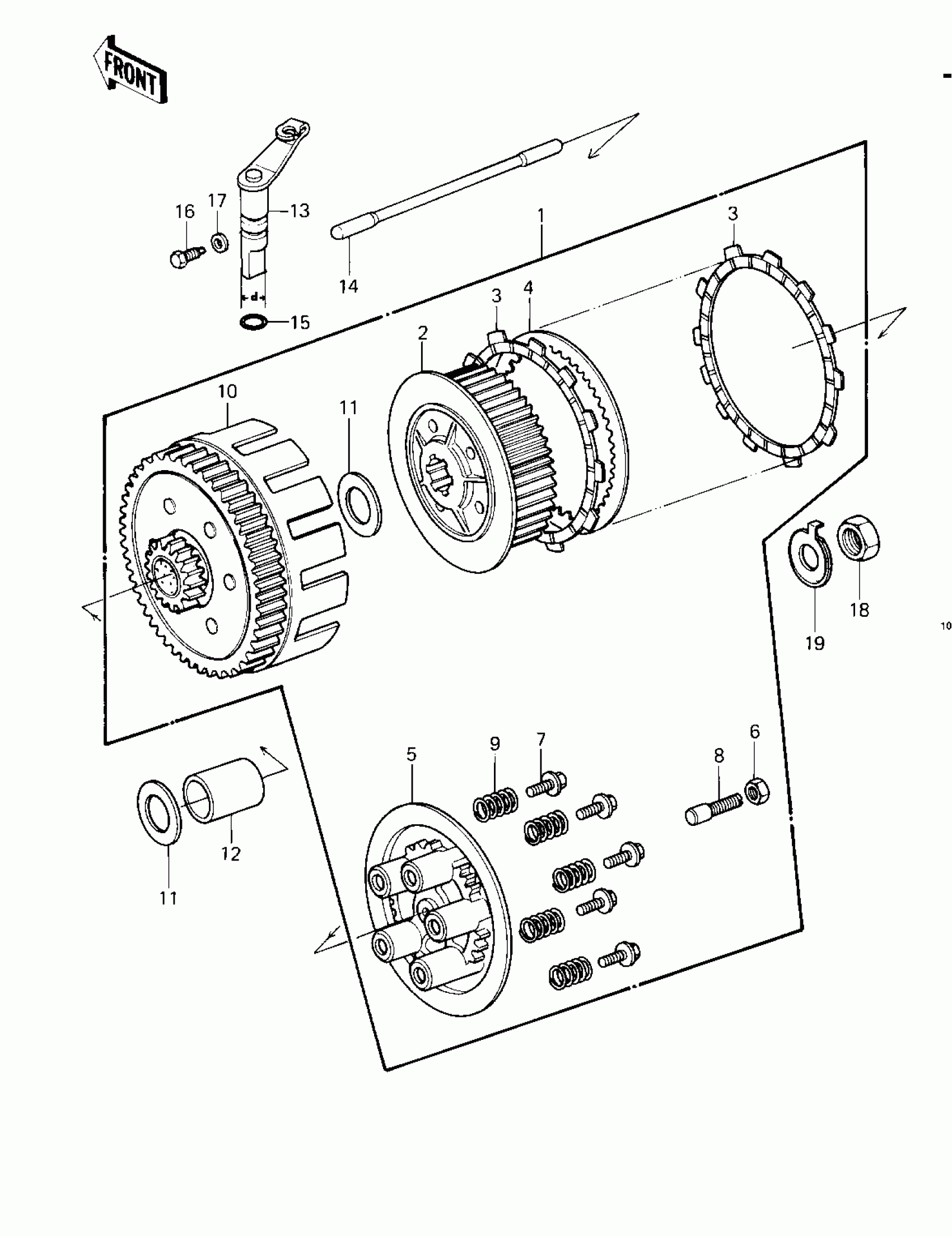

1980 Kawasaki KDX250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH-ASSY

13081-1038

1
Out of stock

2

HUB,CLUTCH

13087-044

1
Out of stock

3

PLATE,CLUTCH FRICTION

13088-041

1
Out of stock

4

PLATE,CLUTCH STEEL

13089-025

1
Out of stock

5

PLATE-CLUTCH OPERATIN

13187-1009

1
Out of stock

6

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

7

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

8

SCREW,SLOTTED,8X35

92014-017

1
Out of stock

9

SPRING,CLUTCH

92081-1151

1
Out of stock

10

HOUSING,CLUTCH

13095-1026

1
Out of stock

11

WASHER,CLUTCH THRUST

92022-282

1
Out of stock

12

BUSHING,CLUTCH

92028-1076

1
Out of stock

13

LEVER ASSY,CLUTCH RLS

13102-1005

1
Out of stock

13

RELEASE,CLUTCH

13102-1006

1
Out of stock

14

ROD,CLUTCH PUSH

13116-1021

1
Out of stock

15

O RING,12MM

670B2012

1

$2.58

In stock

15

O RING,10MM

670B2010

1

$1.31

In stock

16

BOLT,CLUTCH RELEASE

92003-130

1
Out of stock

17

GASKET,6X14X0.8

92065-092

1

$3.46

In stock

18

NUT,LOCK,16MM

92015-072

1
Out of stock

19

WASHER,LOCK,16M/M

92024-076

1
Out of stock
