1980 Kawasaki KDX250 Fuel Tank Diagram

← All diagrams

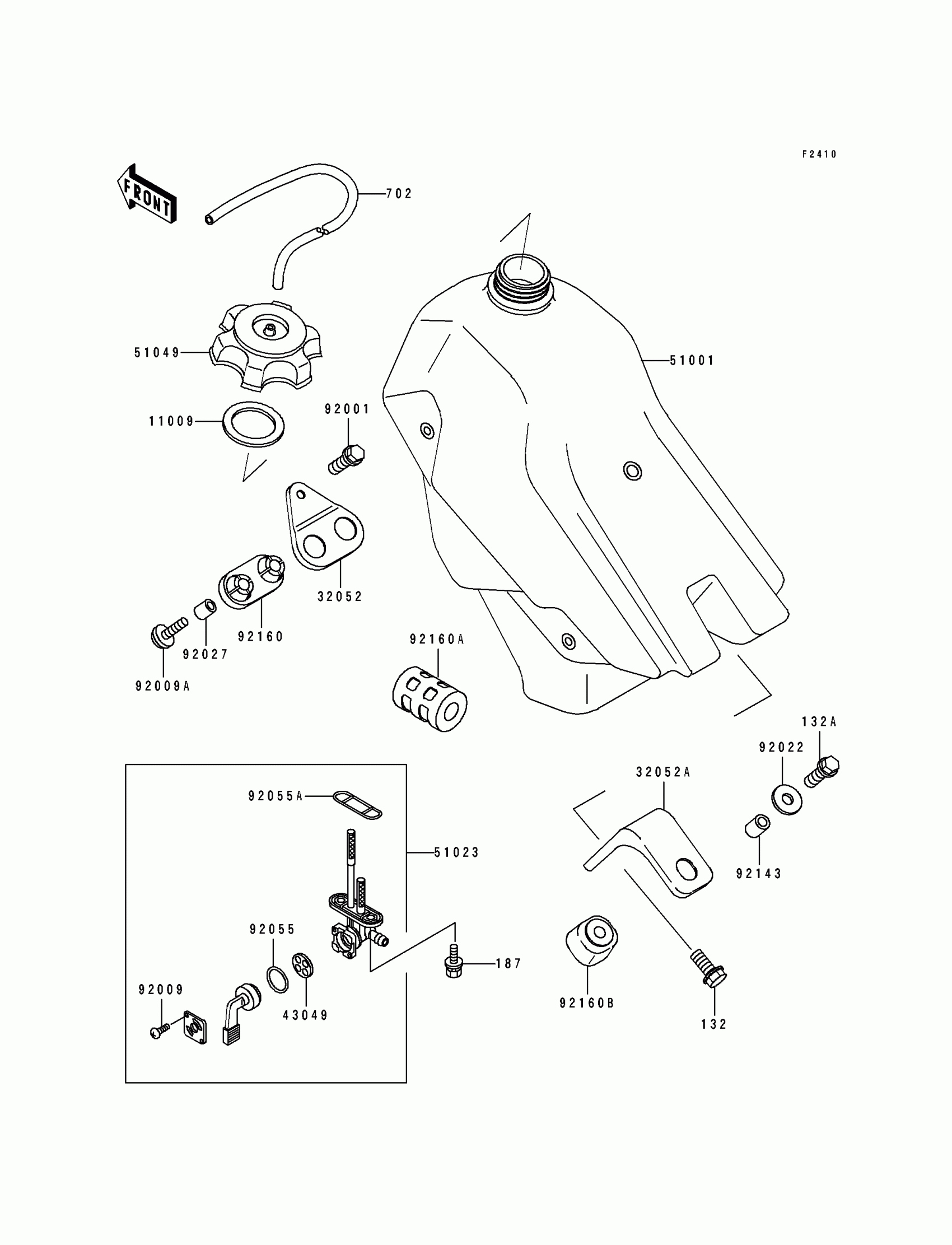

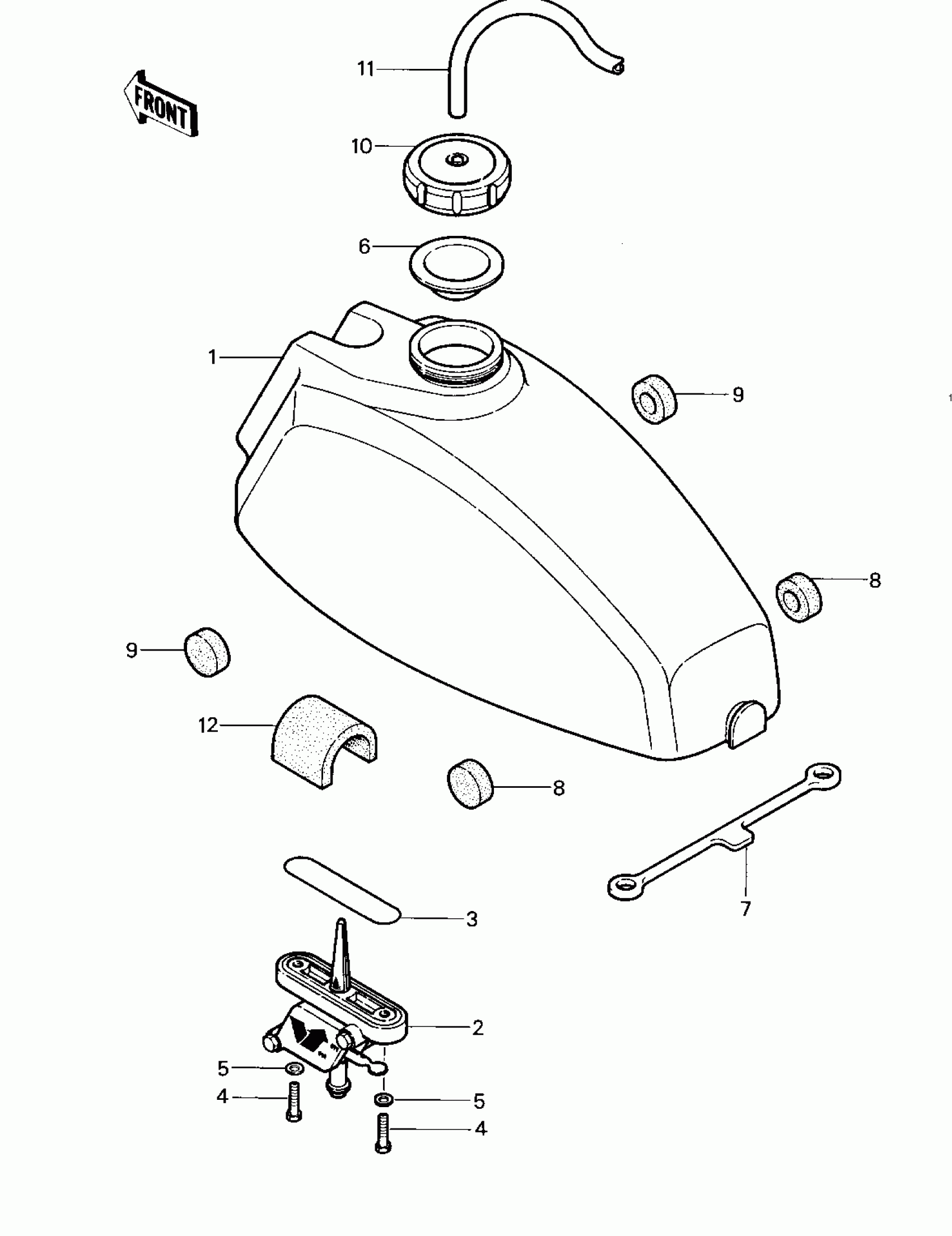

Find the part on the Fuel Tank diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KDX250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK-FUEL,GREEN

51001-4002-7F

1
Out of stock

2

COCK ASSY,FUEL

51023-4002

1
Out of stock

3

RING,TAP FLANGED

51039-003

1

$4.97

In stock

4

BOLT,6X20

92001-1091

1

$3.12

In stock

5

WASHER-PLAIN

92022-183

1
Out of stock

6

GASKET,FUEL TANK CAP

11009-4001

1
Out of stock

7

BAND,FUEL TANK

92072-042

1

$12.02

In stock

8

DAMPER

92075-4003

1
Out of stock

9

DAMPER,6X16X7

92075-1011

1

$5.84

In stock

10

CAP-TANK,FUEL

51049-1060

1
Out of stock

11

TUBE,5X7X500

92059-4001

1
Out of stock

12

DAMPER, FUEL TANK

92075-4008

1
Out of stock
