1997 Kawasaki KDX220R Front Fork Diagram

← All diagrams

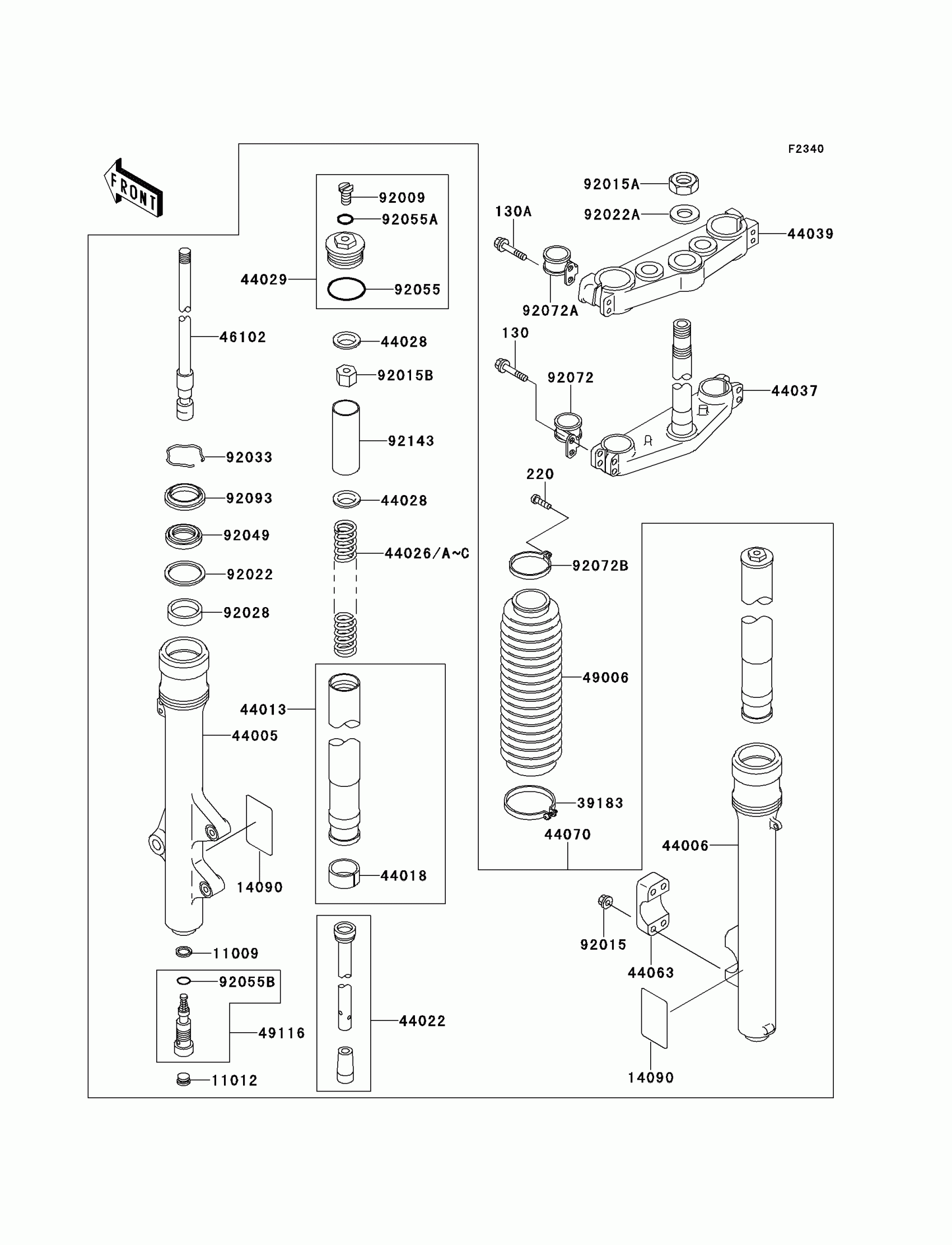

Find the part on the Front Fork diagram for your 1997 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Kawasaki KDX220R Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FORK CYLINDER BOLT

11009-1592

1
Out of stock

11012

CAP,FORK CYLINDER

11012-1381

1
Out of stock

14090

COVER

14090-1564

1
Out of stock

39183

BAND-ASSY,BOOT

39183-1060

1
Out of stock

44005

PIPE-LEFT FORK OUTER

44005-1345

1
Out of stock

44006

PIPE-RIGHT FORK OUTER

44006-1343

1
Out of stock

44013

PIPE-FORK INNER

44013-1403

1
Out of stock

44018

PISTON-FORK,INNER PIPE

44018-1056

1
Out of stock

44022

CYLINDER-FORK

44022-1299

1
Out of stock

44026

SPRING-FRONT FORK,K=0.35

44026-1570

1
Out of stock

44026A

SPRING-FRONT FORK,K=0.34

44026-1574

1
Out of stock

44026B

SPRING-FRONT FORK,K=0.36

44026-1575

1
Out of stock

44026C

SPRING-FRONT FORK,K=0.37

44026-1576

1
Out of stock

44028

GUIDE-FORK SPRING

44028-1010

1
Out of stock

44029

SEAT-FORK SPRING

44029-1152

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1331

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1256

1
Out of stock

44063

HOLDER-FRONT AXLE

44063-1056

1
Out of stock

44070

DAMPER-ASSY,FORK SET

44070-1369

1
Out of stock

46102

ROD,FORK

46102-1376

1
Out of stock

49006

BOOT,FORK,J.S.VIOLET

49006-1296-VW

1
Out of stock

49116

VALVE-ASSY,FORK

49116-1132

1
Out of stock

92009

SCREW

92009-1568

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,STEERING STEM,22MM

92015-1653

1
Out of stock

92015B

NUT

92015-1839

1
Out of stock

92022

WASHER

92022-1299

1
Out of stock

92022A

WASHER,STEERING STEM

92022-1873

1
Out of stock

92028

BUSHING

92028-1581

1
Out of stock

92033

RING-SNAP

92033-1077

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1316

1
Out of stock

92055

RING-O

92055-1123

1
Out of stock

92055A

RING-O,2.8X6.6X1.9

92055-1441

1
Out of stock

92055B

RING-O,FORK VALVE

92055-1502

1
Out of stock

92072

BAND,CABLE

92072-1166

1
Out of stock

92072A

BAND

92072-1268

1
Out of stock

92072B

BAND,BOOT

92072-1316

1
Out of stock

92093

SEAL,FORK DUST

92093-1260

1
Out of stock

130

BOLT-FLANGED,8X45

130G0845

1
Out of stock

130A

BOLT-FLANGED,8X50

130G0850

1
Out of stock

220

SCREW PAN HEAD 4X16

220B0416

1
Out of stock

92143

COLLAR,FORK,L=90

92143-1645

1
Out of stock
