2001 Kawasaki KDX220R Swingarm Diagram

← All diagrams

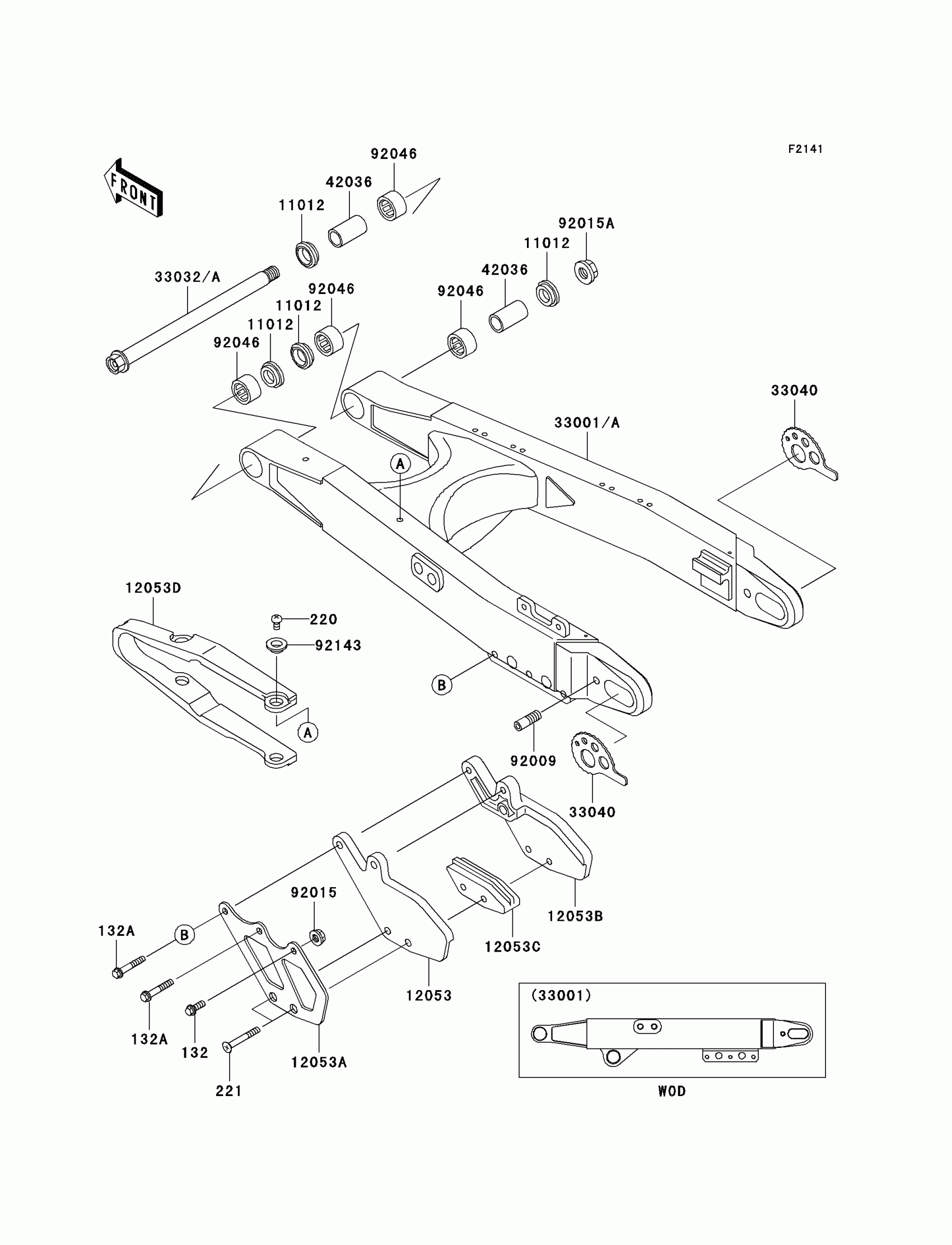

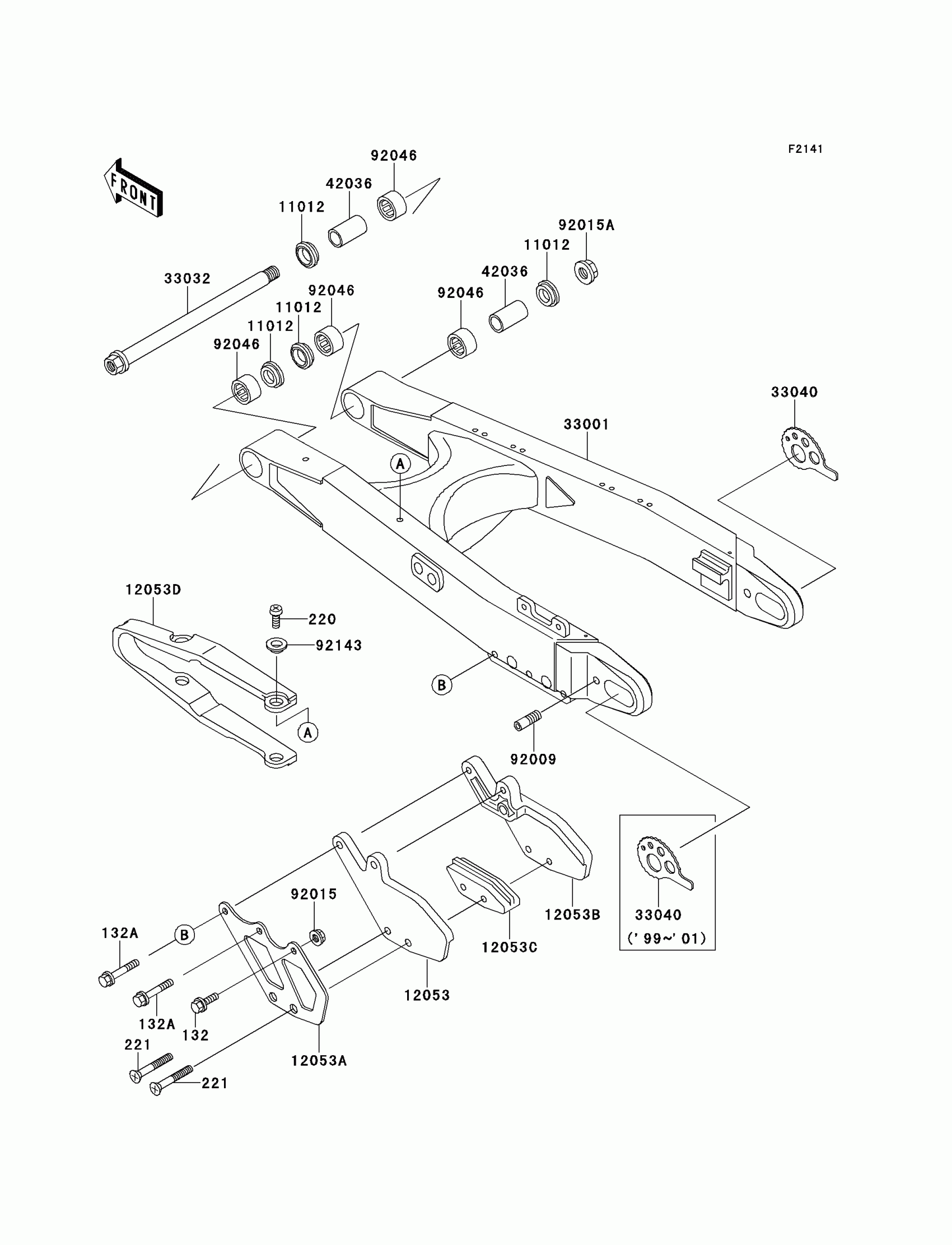

Find the part on the Swingarm diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KDX220R Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X35

132G0635

1
Out of stock

220

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

221

1

$3.28

In stock

11012

CAP,SWING ARM

11012-1259

1

$20.21

In stock

12053

1

$30.26

In stock

12053A

1

$36.58

In stock

12053B

1

$38.35

In stock

12053C

1

$40.84

In stock

12053D

1

$49.57

In stock

33001

ARM-COMP-SWING,SILVER NO.35

33001-1451-TX

1
Out of stock

33032

SHAFT-SWING ARM

33032-1137

1

$64.64

In stock

33040

ADJUSTER-CHAIN

33040-1113

1

$37.02

In stock

42036

SLEEVE,SWING ARM

42036-1056

1
Out of stock

92009

SCREW,SET,10X29

92009-1686

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,14MM

92015-1407

1

$7.86

In stock

92046

BEARING-NEEDLE,TA202715ZE

92046-1118

1
Out of stock

92143

COLLAR

92143-1156

1

$4.93

In stock
