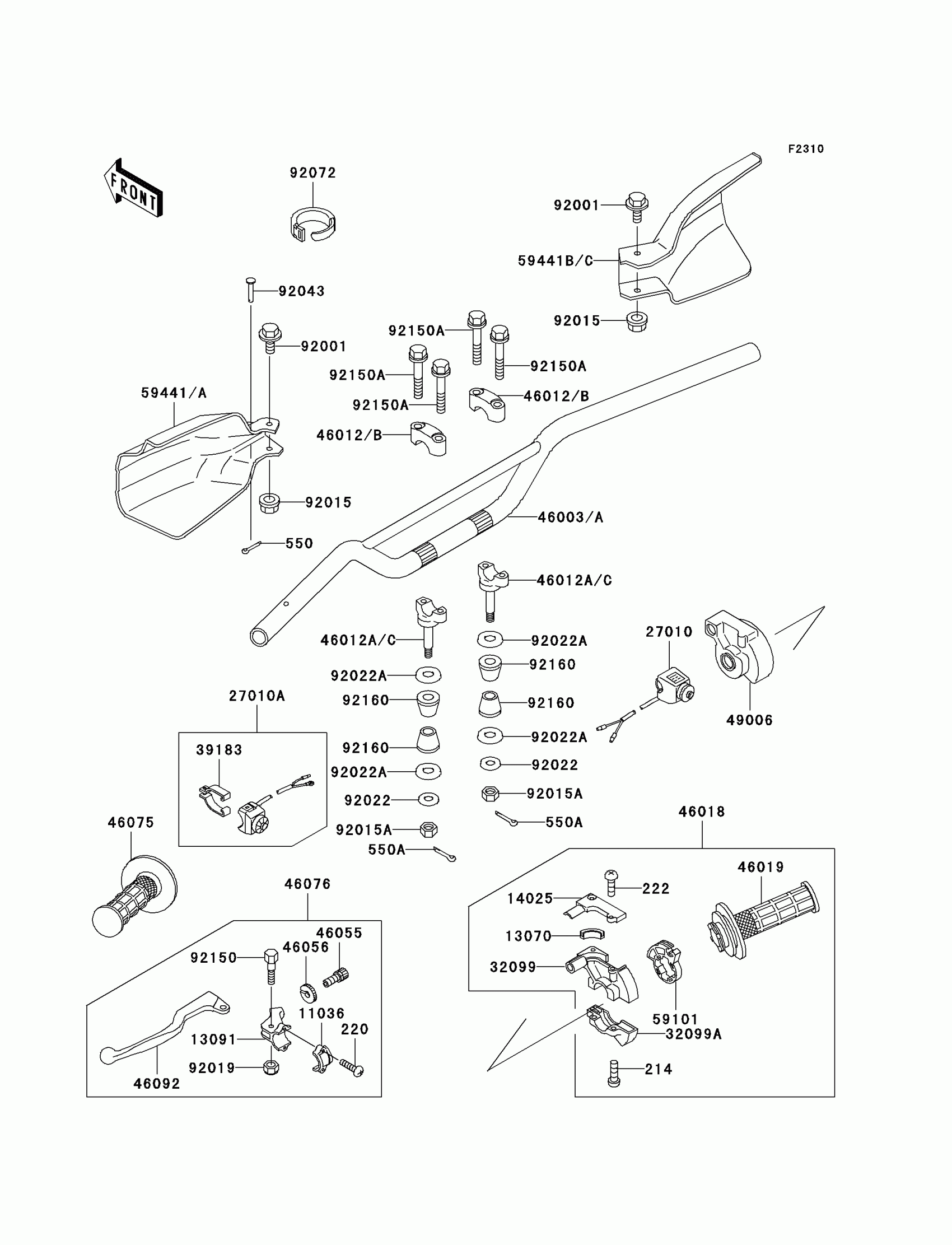

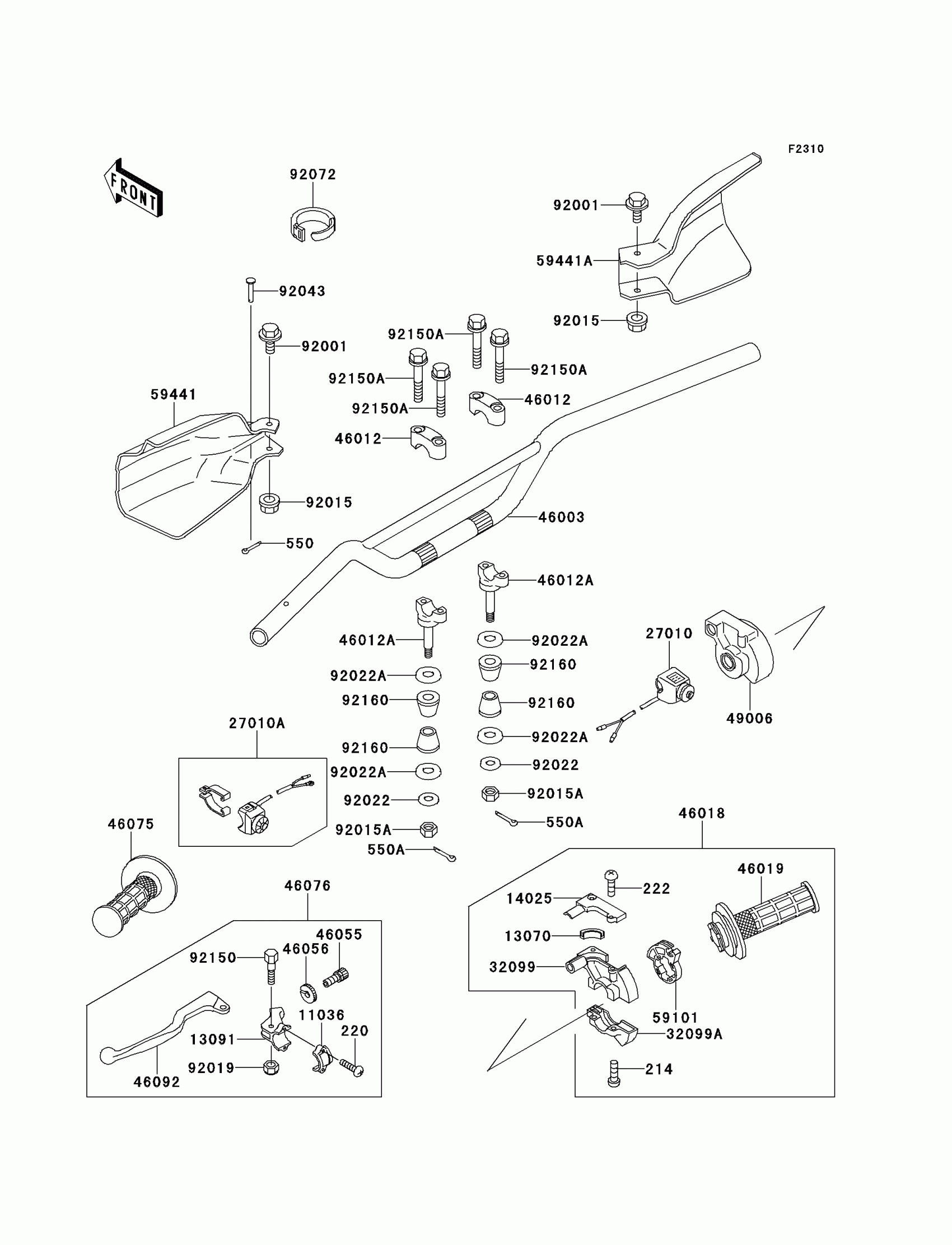

Kawasaki KDX220R Handlebar Diagram

#

Description
Price

214

SCREW-PAN+-,5X18

214C0518

$2.80

220

SCREW-PAN-CROS

220C0514

$1.33

222

SCREW-CSK-RD-CROS,4X12

222E0412

$1.85

550

PIN COTTER 1.2X10

550D1210

$1.66

550A

PIN-COTTER,2.0X20

550D2020

Unavailable

11036

BRACKET-A,LEVER HOLDER

11036-1297

Unavailable

13070

GUIDE,THROTTLE PEACE

13070-1073

Unavailable

13091

HOLDER,CLUTCH LEVER

13091-1131

$47.82

14025

COVER,THROTTLE CASE UPP

14025-1646

$7.13

27010

SWITCH,LIGHTING

27010-1279

$68.35

27010A

SWITCH,ENGINE STOP

27010-1350

$49.50

32099

CASE,THROTTLE UPP

32099-1036

$31.63

32099A

CASE,THROTTLE LWR

32099-1044

Unavailable

46003

HANDLE,SILVER NO.25

46003-1399-CE

$122.70

46012

HOLDER-HANDLE,UPP

46012-1191

$34.54

46012A

HOLDER-HANDLE,LWR

46012-1263

$43.76

46018

GRIP-ASSY-THROTTLE

46018-1161

$115.08

46019

GRIP-ASSY,THROTTLE

46019-1054

$31.90

46055

SCREW,CABLE ADJUST,8MM

46055-009

$14.38

46056

NUT,CABLE ADJUST

46056-006

$6.82

46075

GRIP,LH

46075-1024

$20.79

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1163

$54.47

46092

LEVER-GRIP,CLUTCH

46092-1110

$21.27

49006

BOOT,THROTTLE CASE

49006-1097

$13.56

59101

REEL,THROTTLE

59101-1103

$11.29

59441

COVER-HANDLE,LH,L.GREEN

59441-1094-6W

Unavailable

59441A

COVER-HANDLE,RH,L.GREEN

59441-1108-6W

Unavailable

92001

BOLT,FLANGED,6X10

92001-1034

$7.83

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92015A

NUT,LOCK,10MM

92015-1962

$4.59

92019

NUT,LOCK,6MM

92019-008

$3.12

92022

WASHER,10.2X28X2

92022-1088

$3.57

92022A

WASHER

92022-1737

$4.18

92043

PIN,5X27.5

92043-1434

$8.95

92072

BAND,L=140

92072-1293

$5.26

92150

BOLT

92150-1291

$22.61

92150A

BOLT,FLANGED,8X35

92150-1696

$5.37

92160

DAMPER

92160-1521

$3.98
