2001 Kawasaki KDX220R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

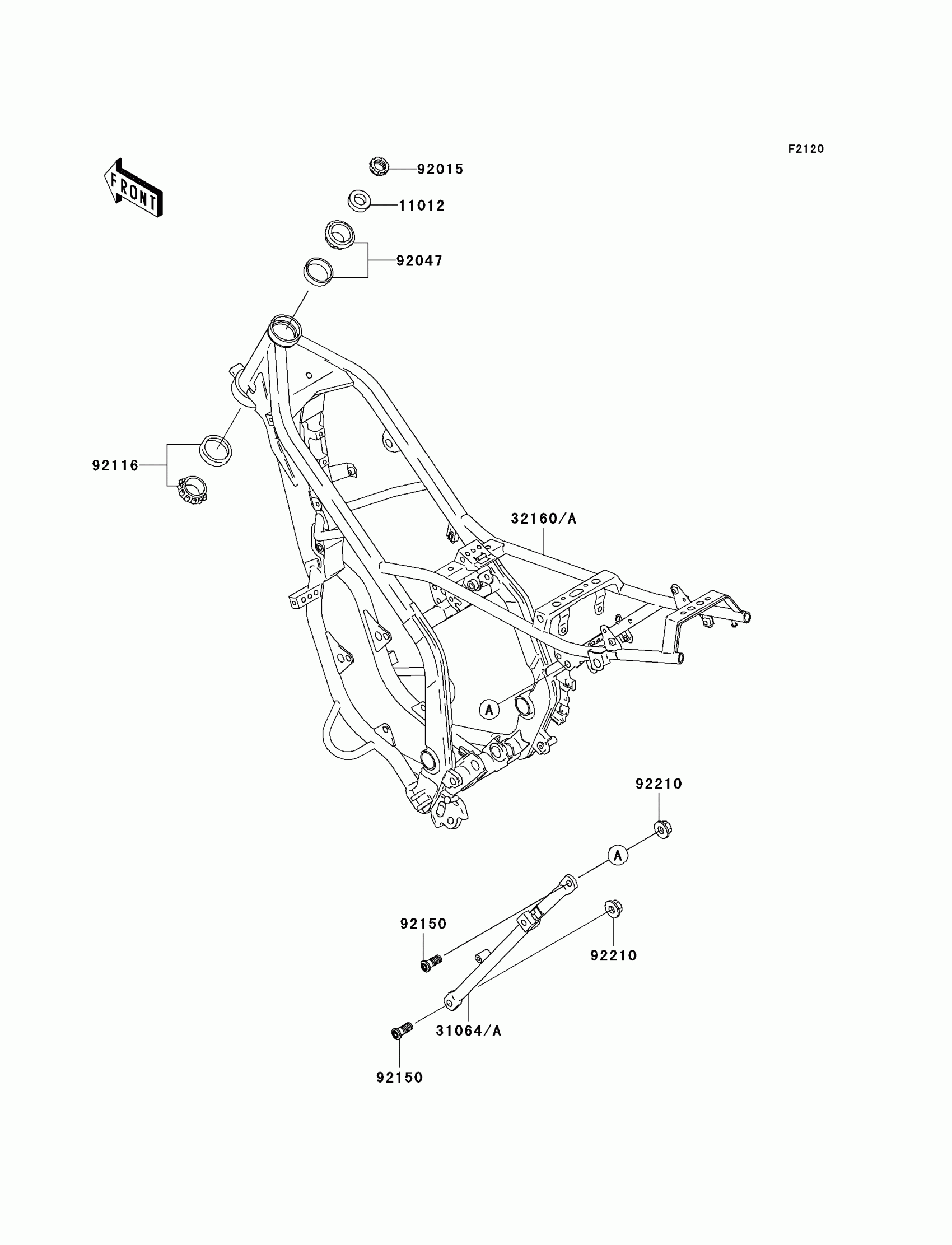

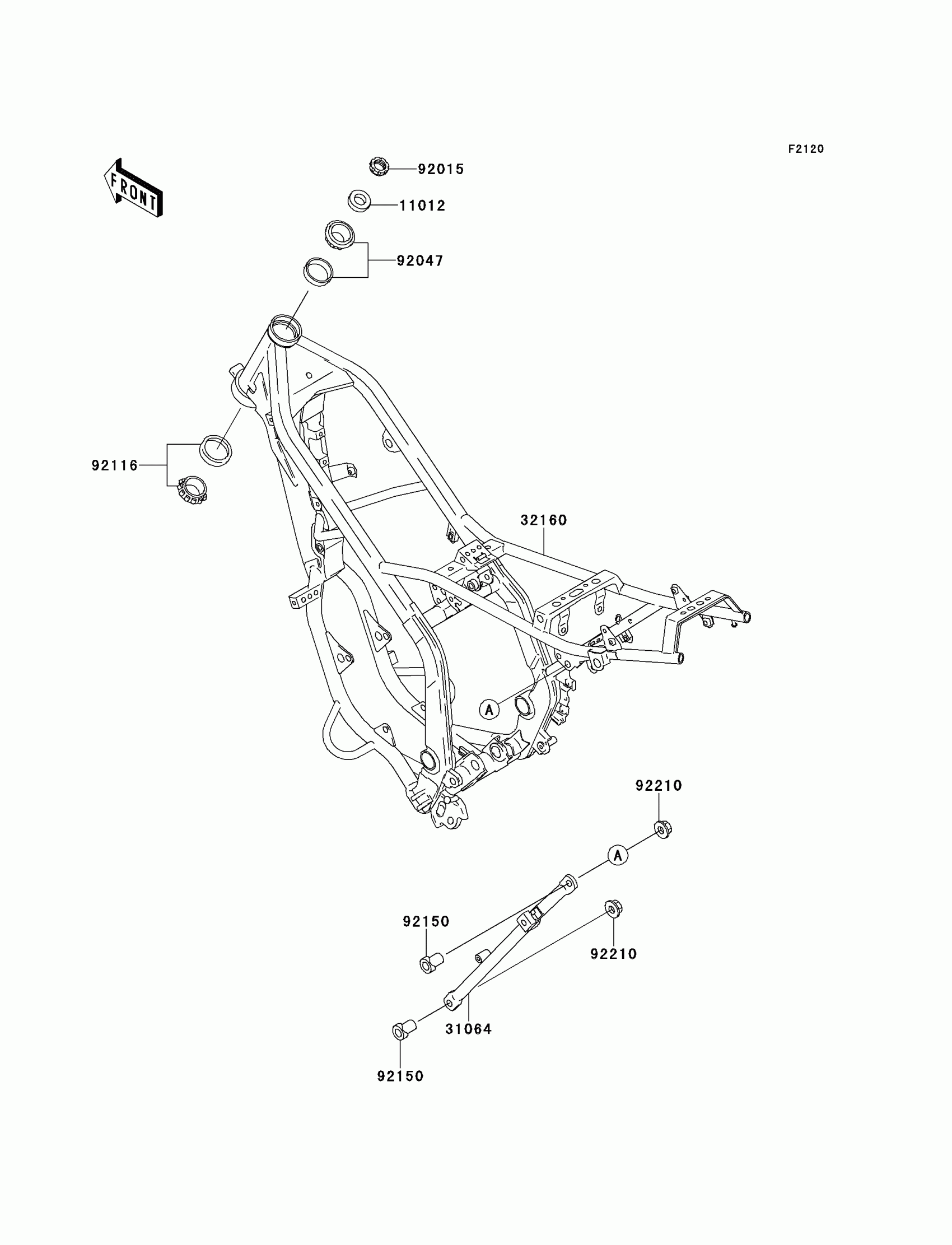

2001 Kawasaki KDX220R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

11012-1762

1

$5.37

In stock

31064

PIPE-COMP,SUB FRAME,L.GREEN

31064-1163-CC

1
Out of stock

32160

FRAME-COMP,L.GREEN

32160-1350-CC

1
Out of stock

92015

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92047

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92116

1

$59.23

In stock

92150

BOLT,SOCKET,10X23

92150-1221

1

$4.37

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
