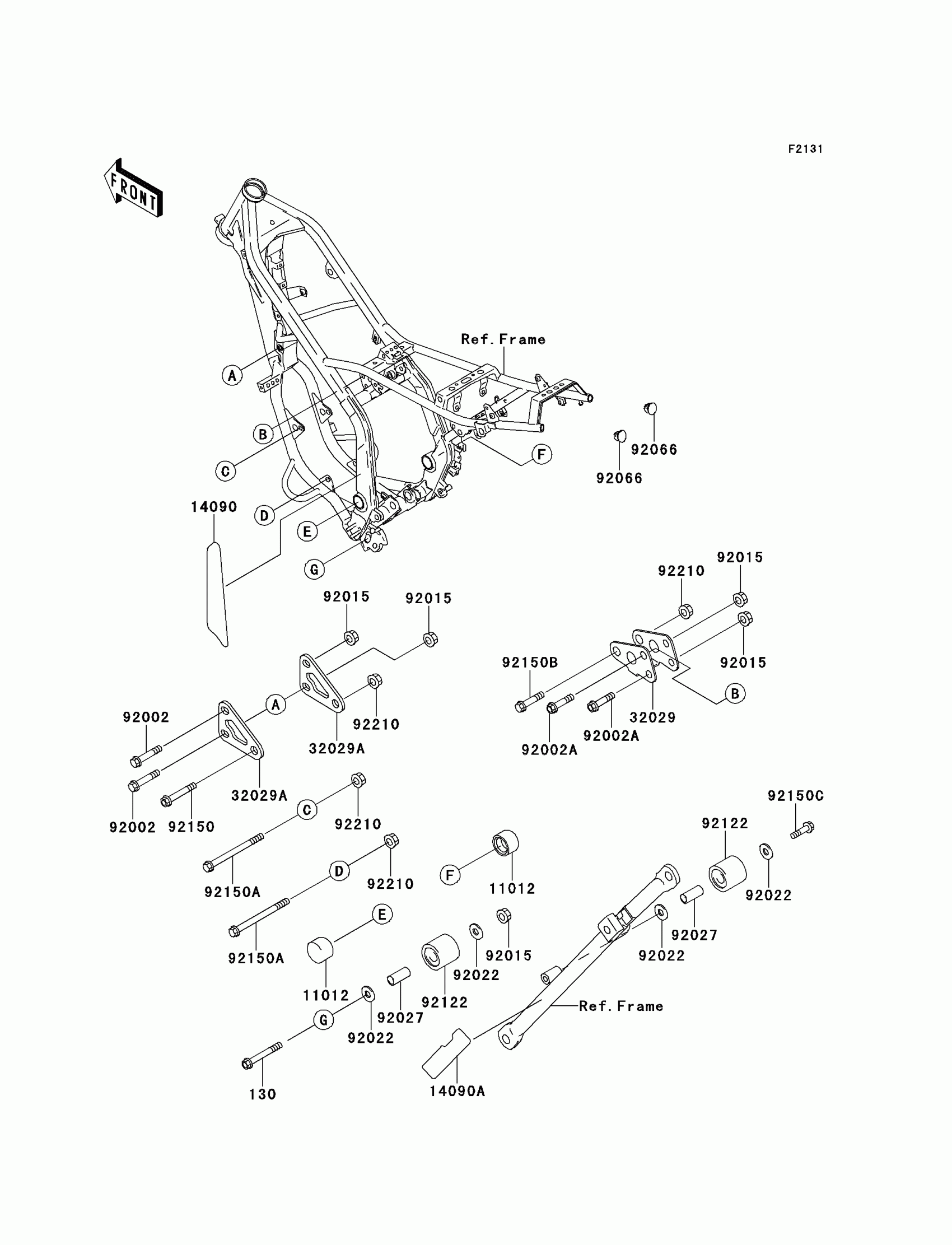

Find the part on the Frame Fittings diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KDX220R Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X55

130G0855

1
Out of stock

11012

CAP,AXLE NUT

11012-1591

1

$4.39

In stock

14090

COVER

14090-1514

1
Out of stock

14090A

COVER

14090-1557

1

$7.24

In stock

32029

1

$32.37

In stock

32029A

BRACKET-ENGINE

32029-1944

1

$25.19

In stock

92002

BOLT

92002-1221

1

$8.02

In stock

92002A

BOLT,FLANGED,8X47

92002-1850

1
Out of stock

92015

NUT,8MM

92015-1432

1

$5.21

In stock

92022

WASHER,8.5X20X1.6

92022-1561

1

$3.43

In stock

92027

COLLAR,CHAIN ROLLER

92027-1670

1

$7.25

In stock

92066

PLUG

92066-1093

1

$4.58

In stock

92122

ROLLER,CHAIN GUIDE

92122-1153

1

$8.44

In stock

92150

BOLT,FLANGED,10X57

92150-1227

1

$6.82

In stock

92150A

BOLT,FLANGED,10X105

92150-1624

1

$7.86

In stock

92150B

BOLT,FLANGED,10X51

92150-1719

1

$9.63

In stock

92150C

BOLT,FLANGED,8X40

92150-1961

1

$5.37

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
